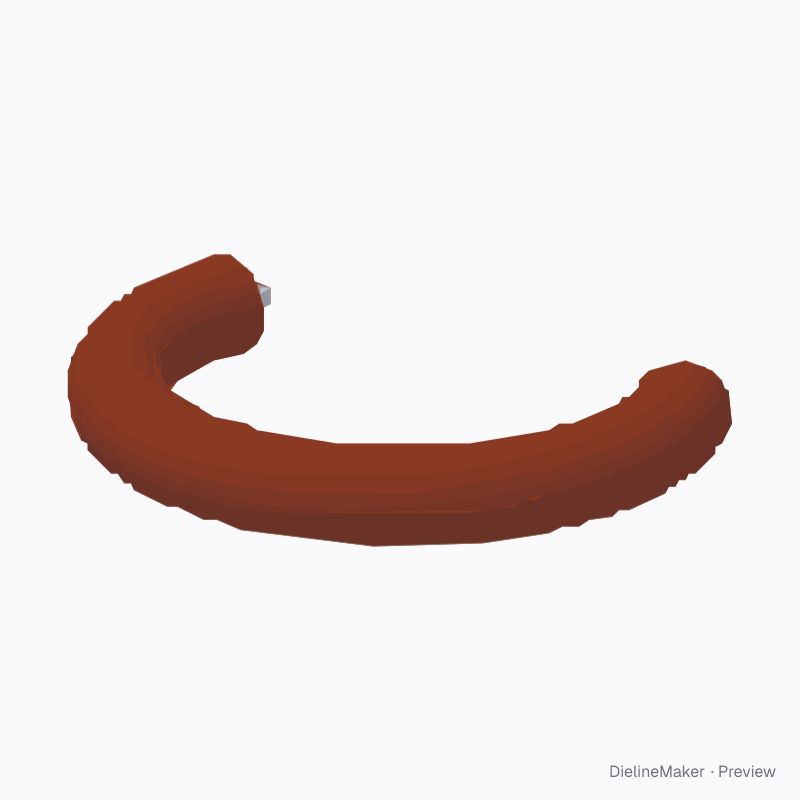

Horseshoe smoked sausage ring dieline
A long inflated sausage casing with gathered, metal-clipped ends — singly or as a row. Print the body wrap between the gathers. A ready-sized preset of the clipped sausage casing — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside38 × 1 × 450 mm
Outside38 × 1 × 450 mm
Flat blank415.8 × 119.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CASING-01
- Inside size
- Casing diameter 38 · Number in row 1 · Overall length 450 mm
- Size range
- Casing diameter 15–120 · Number in row 1–13 · Overall length 80–600 mm
- Manufacturing
- 38 × 1 × 450 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.050 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Form3 options
- Curve angle°
- Outer multipack filmon / off
- Casing5 options
