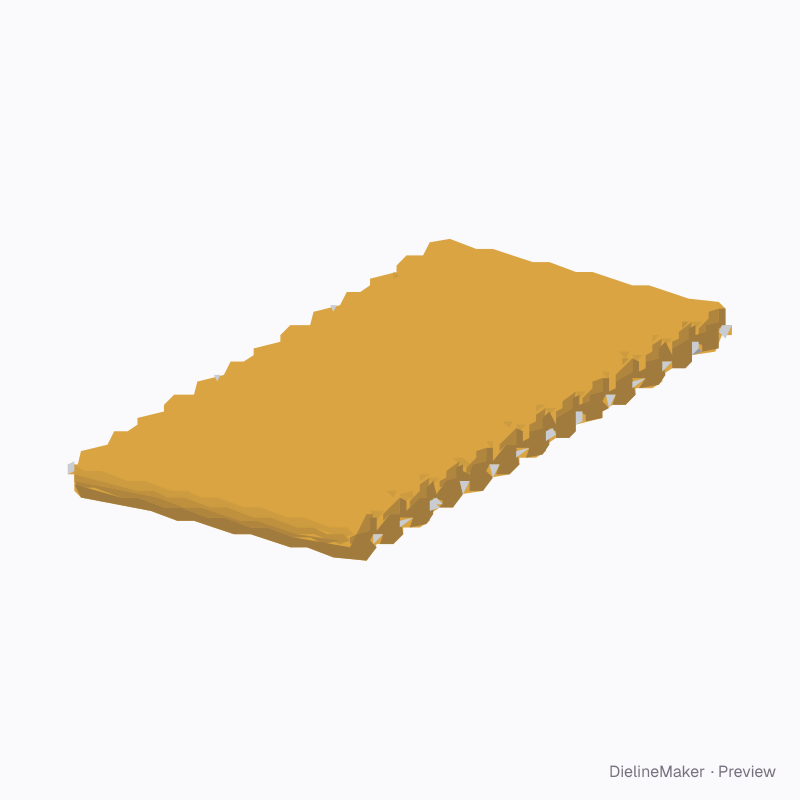

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CASING-01Labels
Row of clipped sausages dieline
A long inflated sausage casing with gathered, metal-clipped ends — singly or as a row. Print the body wrap between the gathers. A ready-sized preset of the clipped sausage casing — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside22 × 13 × 160 mm
Outside22 × 13 × 160 mm
Flat blank140.2 × 69.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CASING-01
- Inside size
- Casing diameter 22 · Number in row 13 · Overall length 160 mm
- Size range
- Casing diameter 15–120 · Number in row 1–13 · Overall length 80–600 mm
- Manufacturing
- 22 × 13 × 160 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.010 m² · about 54 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Form3 options
- Outer multipack filmon / off
- Casing5 options
The clipped sausage casing family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this row of clipped sausages yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
