A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Protein meal tray lidding template
A tapered rectangular food tray with a sealing flange and a die-cut lidding film with peel tab. The film outline and inside seal band export at actual size; tray tooling requires the supplier’s drawing. A ready-sized preset of the film-sealed meal tray — adjust the object dimensions and decoration area to preview your artwork at size.
Object size225 × 165 × 50 mm
Artwork area225 × 175 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Rim width 225 · Rim depth 165 · Overall height 50 mm
- Size range
- Rim width 80–320 · Rim depth 65–260 · Overall height 25–130 mm
- Parts
- One artwork area
- Artwork area
- 0.037 m²
- Good for
The flat artwork area

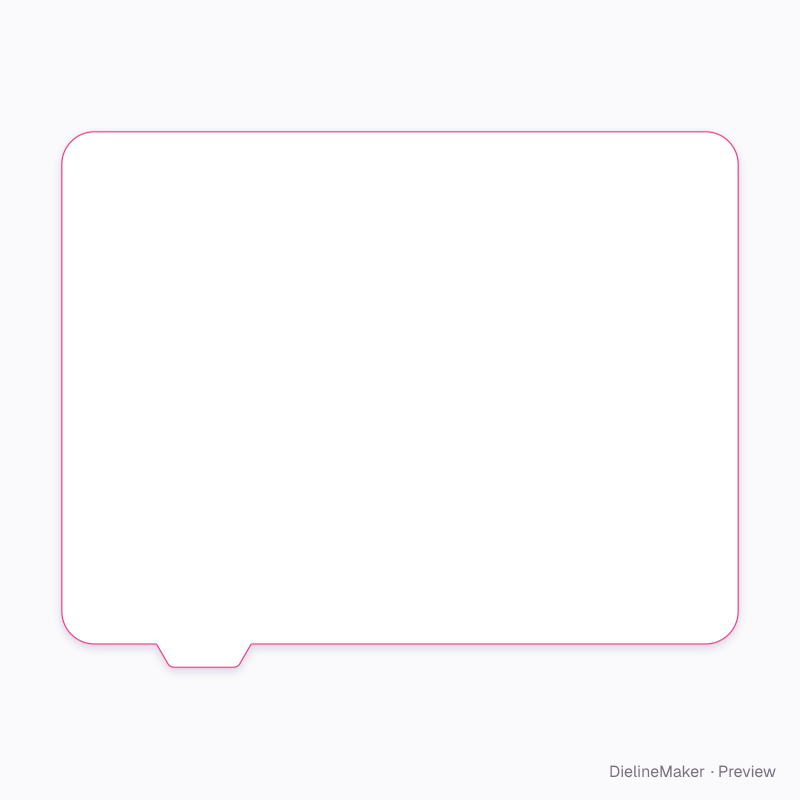

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Seal / rim widthmm
- Tray colour10 options
- Peel tabon / off
The film-sealed meal tray family
