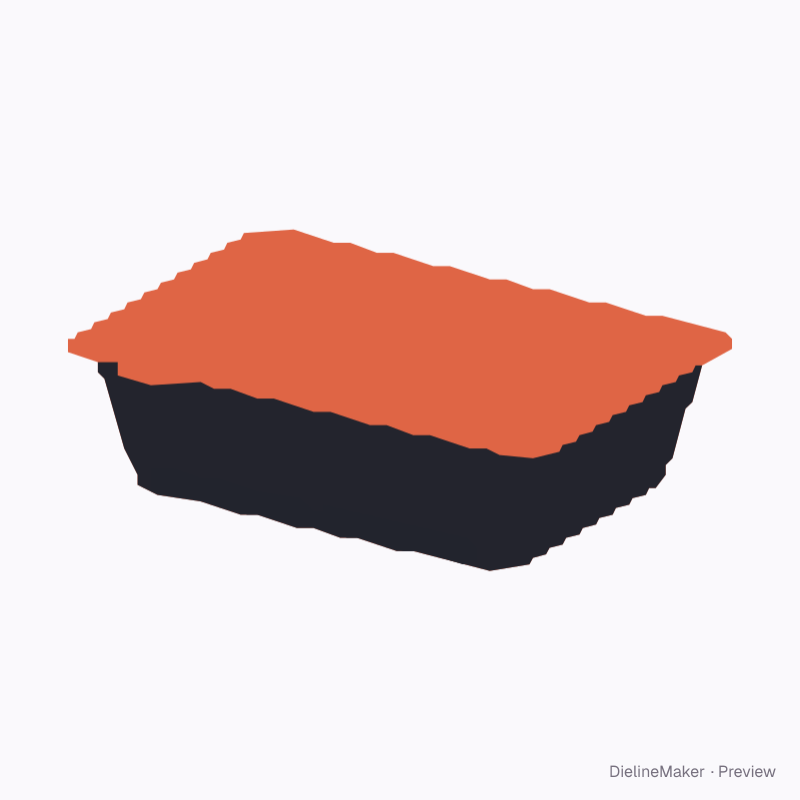

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Lunch film-sealed meal tray lidding template
210 × 145 × 55 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the film-sealed meal tray — adjust the object dimensions and decoration area to preview your artwork at size.
Object size210 × 145 × 55 mm
Artwork area210 × 155 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Rim width 210 · Rim depth 145 · Overall height 55 mm
- Size range
- Rim width 80–320 · Rim depth 65–260 · Overall height 25–130 mm
- Parts
- One artwork area
- Artwork area
- 0.031 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Seal / rim widthmm
- Tray colour10 options
- Peel tabon / off
The film-sealed meal tray family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this lunch film-sealed meal tray yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
