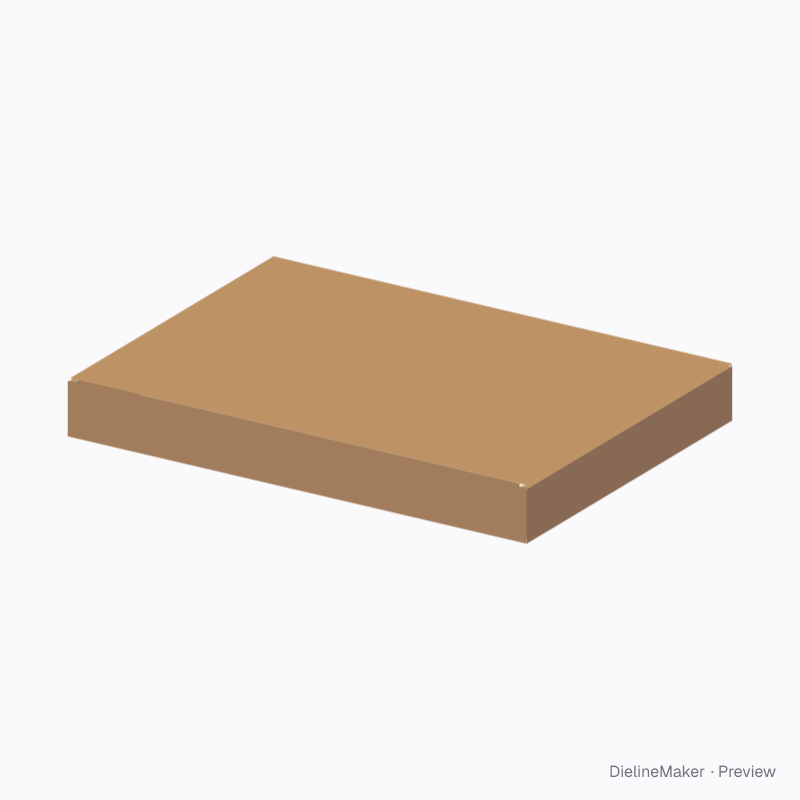

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0421Mailer
A4 art print bundle mailer — Self-locking box with lid dieline
Editable 315 × 230 × 35 mm starting point using self-locking box with lid. Adjust the dimensions to your product before prototyping. A ready-sized preset of the self-locking box with lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside315 × 230 × 35 mm
Outside324.6 × 233.2 × 38.2 mm
Flat blank469.4 × 563 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0421
- Inside size
- Length 315 · Width 230 · Height 35 mm
- Size range
- Length 150–600 · Width 80–450 · Height 20–150 mm
- Manufacturing
- 323 × 231.6 × 36.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.217 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-flute
- Good for

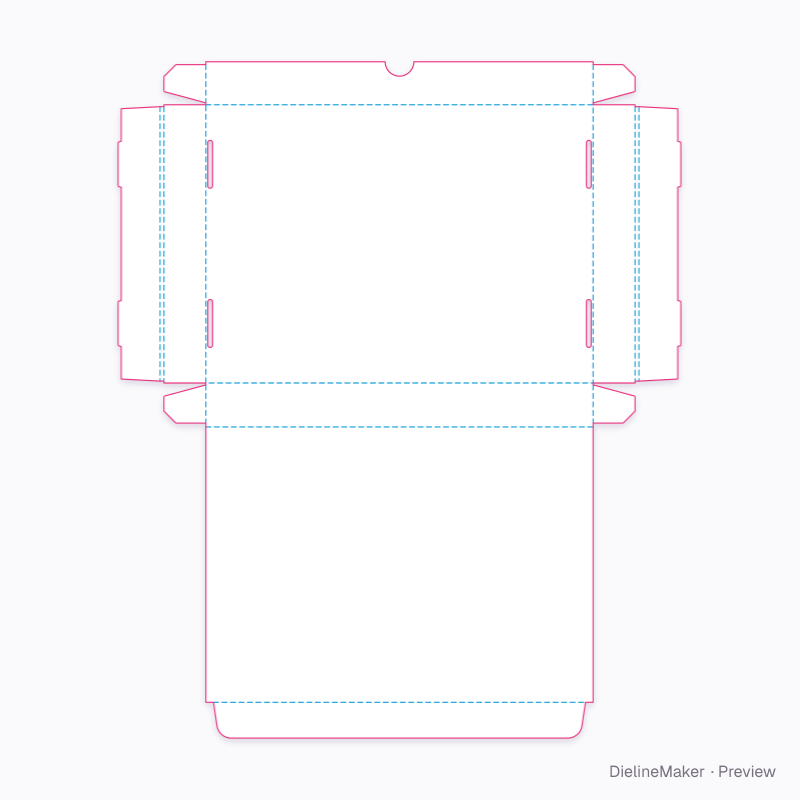

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0421 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 323 × 231.6 | – × W + T |
| Front | 323 × 35.8 | – × H + T/2 |
| Back | 323 × 36.6 | – × H + T |
| Front ear ×2 | 35 × 31.8 | H × H − 2T |
| Back ear ×2 | 35 × 31.8 | H × H − 2T |
| Left end | 35 × 231.6 | H × W + T |
| Left end roll | 3.2 × 228.4 | – × W − T |
| Left end (inside) | 35 × 228.4 | H × W − T |
| Right end | 35 × 231.6 | H × W + T |
| Right end roll | 3.2 × 228.4 | – × W − T |
| Right end (inside) | 35 × 228.4 | H × W − T |
| Lid | 323 × 229.2 | – × W − T/2 |
| Front tuck | 310.2 × 29.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lock tonguescount
- Thumb notchon / off
- Notch radiusmm
- Lid lock3 options
