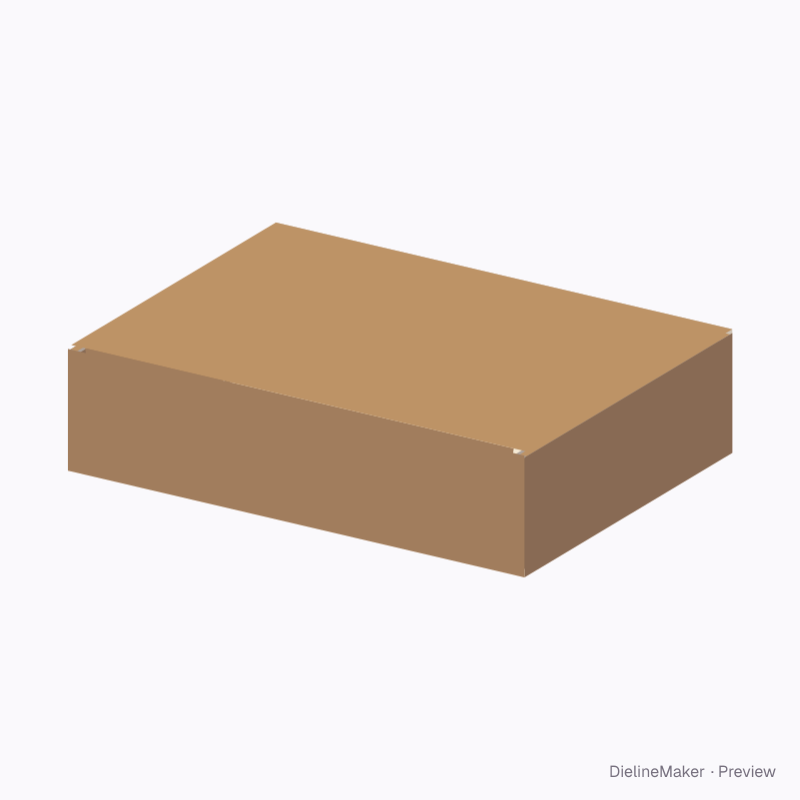

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0421Mailer
Small postal box 200×150×50 dieline
For jewellery, a phone case or samples; folds without glue or tape. A ready-sized preset of the self-locking box with lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 150 × 50 mm
Outside209.6 × 153.2 × 53.2 mm
Flat blank414.4 × 448 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0421
- Inside size
- Length 200 · Width 150 · Height 50 mm
- Size range
- Length 150–600 · Width 80–450 · Height 20–150 mm
- Manufacturing
- 208 × 151.6 × 51.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.130 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0421 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 208 × 151.6 | – × W + T |
| Front | 208 × 50.8 | – × H + T/2 |
| Back | 208 × 51.6 | – × H + T |
| Front ear ×2 | 50 × 46.8 | H × H − 2T |
| Back ear ×2 | 50 × 46.8 | H × H − 2T |
| Left end | 50 × 151.6 | H × W + T |
| Left end roll | 3.2 × 148.4 | – × W − T |
| Left end (inside) | 50 × 148.4 | H × W − T |
| Right end | 50 × 151.6 | H × W + T |
| Right end roll | 3.2 × 148.4 | – × W − T |
| Right end (inside) | 50 × 148.4 | H × W − T |
| Lid | 208 × 149.2 | – × W − T/2 |
| Front tuck | 195.2 × 44.8 | – |
