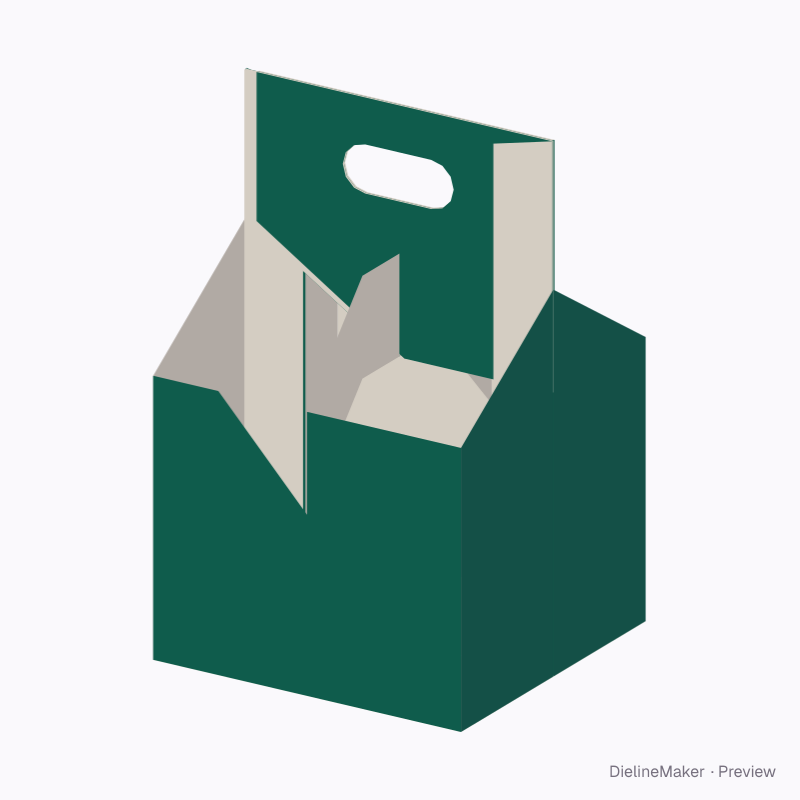

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F60.31.00.00Carriers
Four-cell integral basket carrier dieline
A single blank with hinged cell separators, a reinforced centre handle and a glued folding floor. A ready-sized preset of the integral separator basket carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 144 × 240 mm
Outside150.9 × 144.9 × 240 mm
Flat blank653.3 × 353.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F60.31.00.00
- Inside size
- Length 150 · Width 144 · Overall height 240 mm
- Size range
- Length 100–600 · Width 60–350 · Overall height 120–500 mm
- Manufacturing
- 150.9 × 144.9 × 240 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.194 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350FBB 400SBS 350SBS 18 pt
- Good for

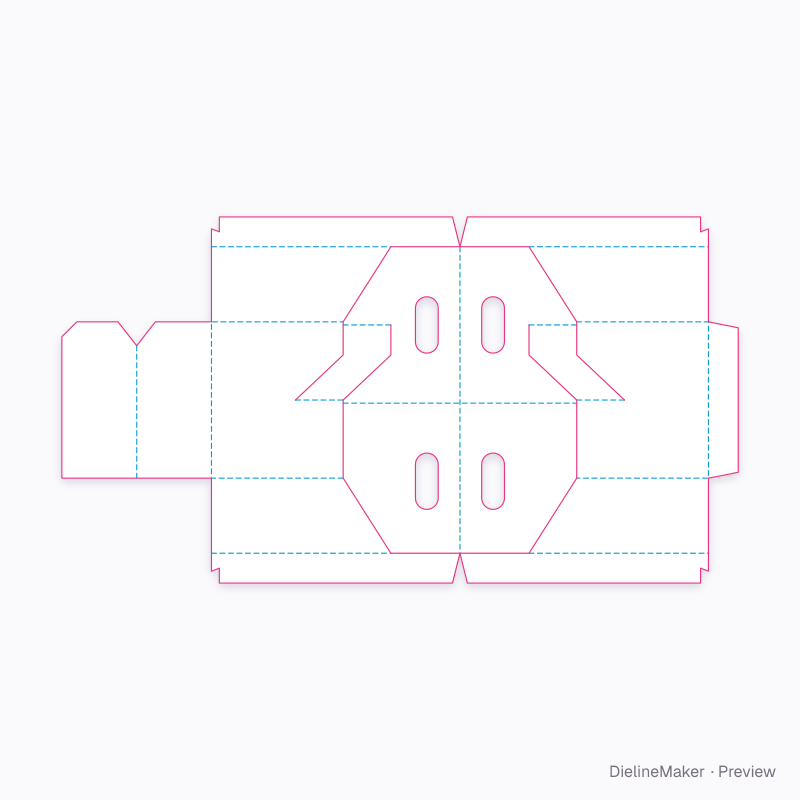

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F60.31.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| front basket wall | 127.2 × 150.9 | – × L + 2T |
| front handle | 46.1 × 75.5 | – |
| front handle reinforcement | 112.8 × 144.9 | – × W + 2T |
| front cell separator 1 | 46.1 × 72.5 | – |
| front half end wall ×2 | 127.2 × 72.5 | – |
| Centre seam glue flap ×4 | 173.3 × 28.8 | – |
| back basket wall | 46.1 × 75.5 | – |
| back handle | 112.8 × 150.9 | – × L + 2T |
| back handle reinforcement | 112.8 × 144.9 | – × W + 2T |
| back cell separator 1 | 46.1 × 72.5 | – |
| back half end wall ×2 | 127.2 × 72.5 | – |
| First floor half | 72.2 × 150.9 | – × L + 2T |
| Second floor half | 72.2 × 127.8 | – |
| Floor glue flap | 28.8 × 150.9 | – × L + 2T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Compartments2 options
- Basket wall heightmm
- Handhole widthmm
- Handhole heightmm

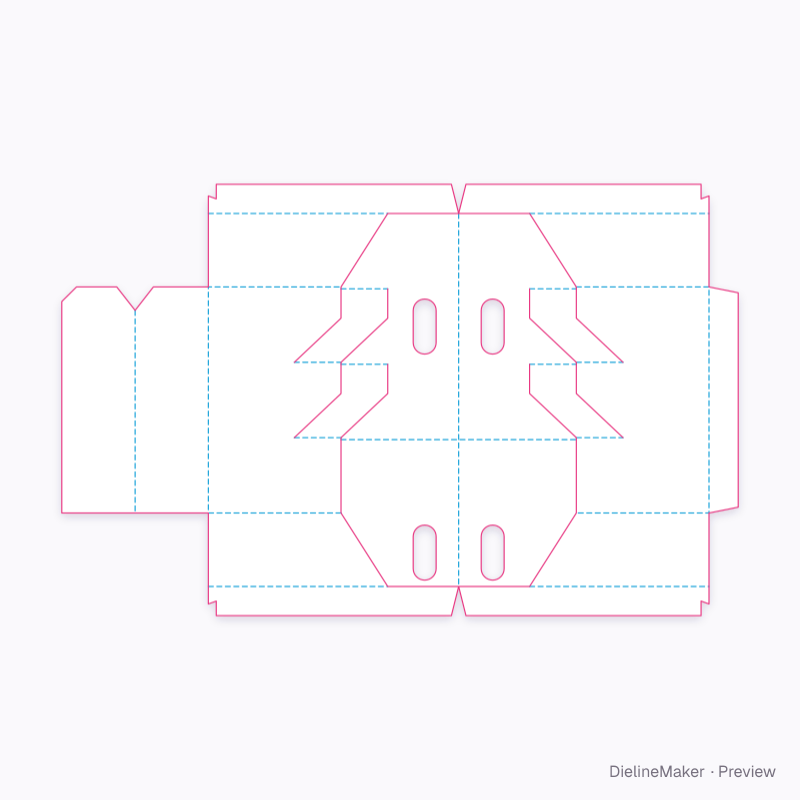

The integral separator basket carrier family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-cell integral basket carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
