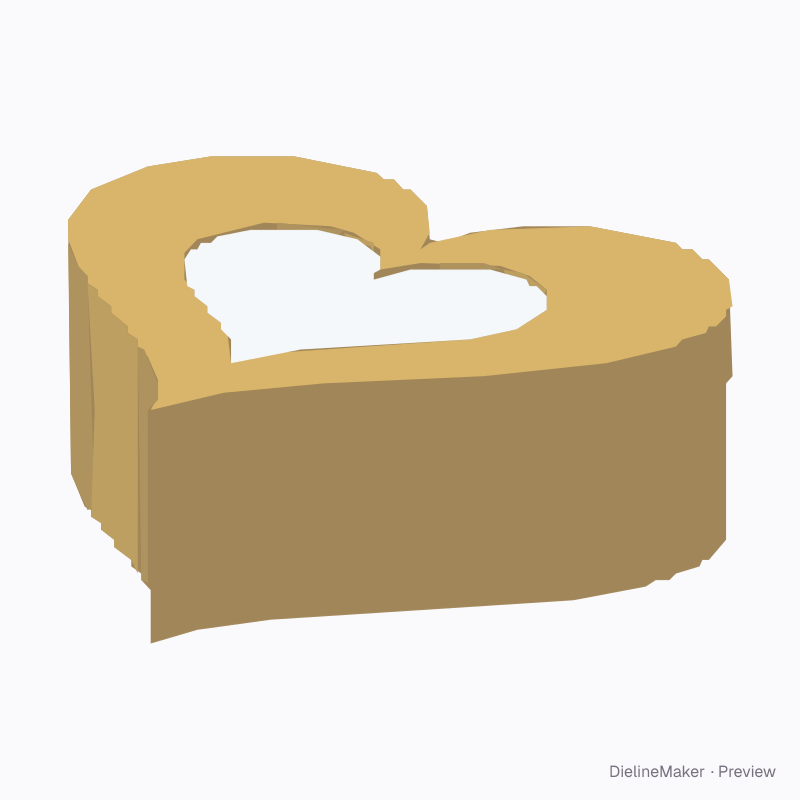

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHAPETIN-01Labels
Heart window tin, hinged dieline
A heart-shaped or polygonal (hexagonal) metal tin with a matching slip-over or flush lid. Print the lid top and the body wrap. A ready-sized preset of the shaped metal tin — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside100 × 92 × 35 mm
Outside100 × 92 × 35 mm
Flat blank322.4 × 21.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHAPETIN-01
- Inside size
- Plan width 100 · Plan depth 92 · Height 35 mm
- Size range
- Plan width 40–260 · Plan depth 40–260 · Height 15–300 mm
- Manufacturing
- 100 × 92 × 35 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Lid top, Body wrap
- Board area
- 0.013 m² · about 78 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Shape2 options
- Lid3 options
- Lid window%
- Lid depth%
- Metal5 options
The shaped metal tin family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this heart window tin, hinged yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
