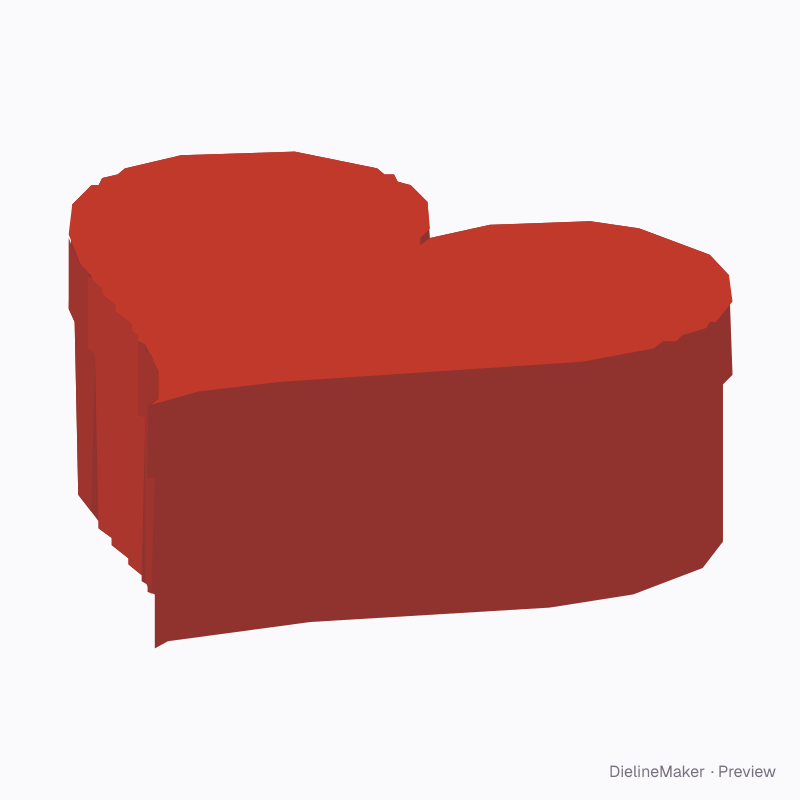

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHAPETIN-01Labels
Mini heart candy tin dieline
A heart-shaped or polygonal (hexagonal) metal tin with a matching slip-over or flush lid. Print the lid top and the body wrap. A ready-sized preset of the shaped metal tin — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside60 × 55 × 22 mm
Outside60 × 55 × 22 mm
Flat blank187.6 × 12.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHAPETIN-01
- Inside size
- Plan width 60 · Plan depth 55 · Height 22 mm
- Size range
- Plan width 40–260 · Plan depth 40–260 · Height 15–300 mm
- Manufacturing
- 60 × 55 × 22 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Lid top, Body wrap
- Board area
- 0.004 m² · about 200 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
