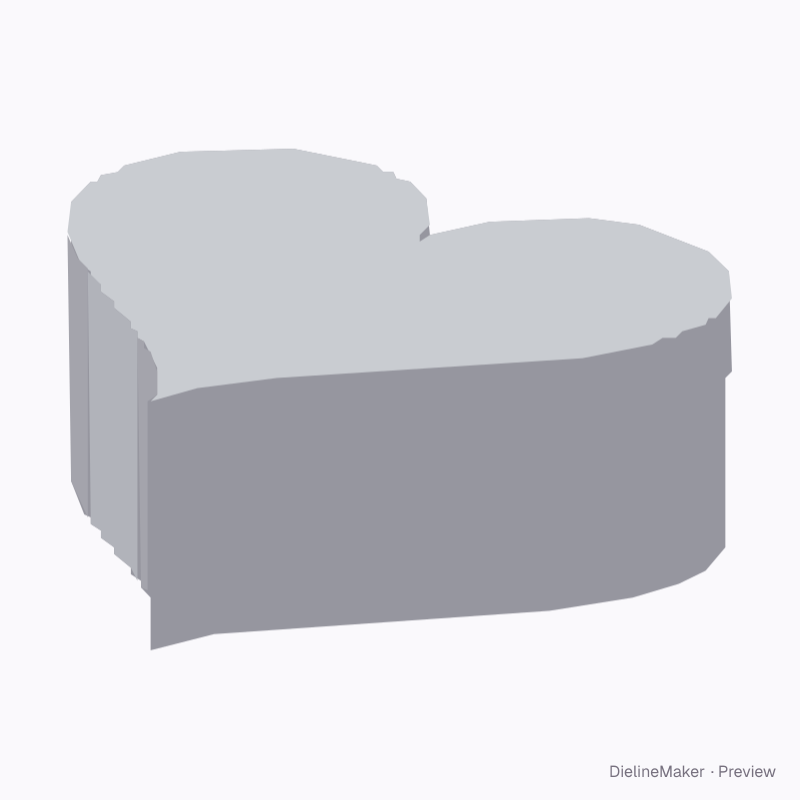

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SHAPETIN-01Labels
Shaped metal tin dieline
A heart-shaped or polygonal (hexagonal) metal tin with a matching slip-over or flush lid. Print the lid top and the body wrap. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside120 × 110 × 45 mm
Outside120 × 110 × 45 mm
Flat blank380.6 × 28.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SHAPETIN-01
- Inside size
- Plan width 120 · Plan depth 110 · Height 45 mm
- Size range
- Plan width 40–260 · Plan depth 40–260 · Height 15–300 mm
- Manufacturing
- 120 × 110 × 45 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Lid top, Body wrap
- Board area
- 0.019 m² · about 40 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

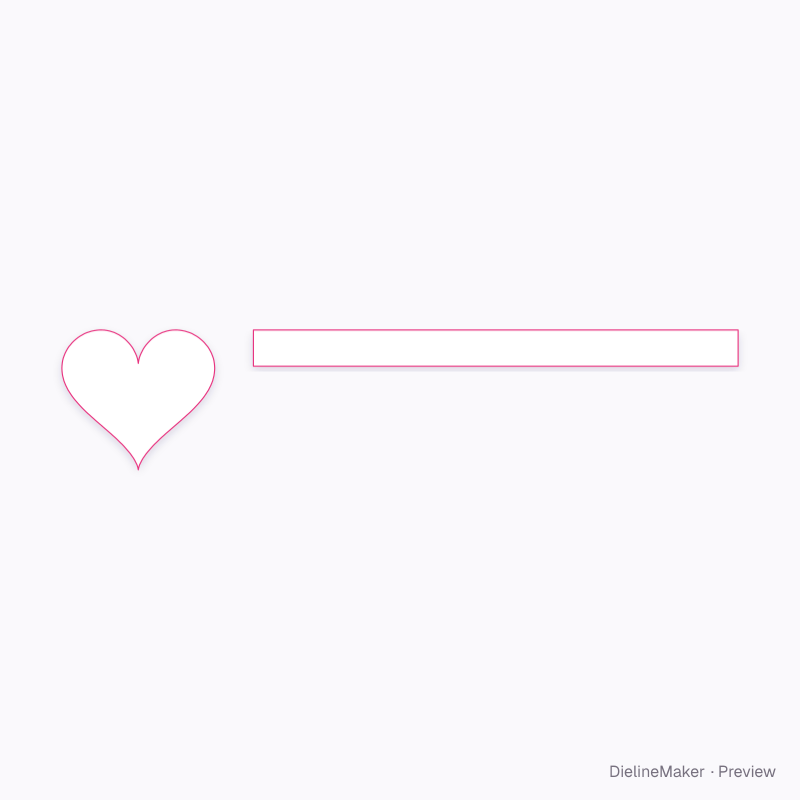

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Shape2 options
- Lid3 options
- Lid window%
- Lid depth%
- Metal5 options
