A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLIDERSIGN-01Apparel & merchandise
Sliding status door sign decoration template

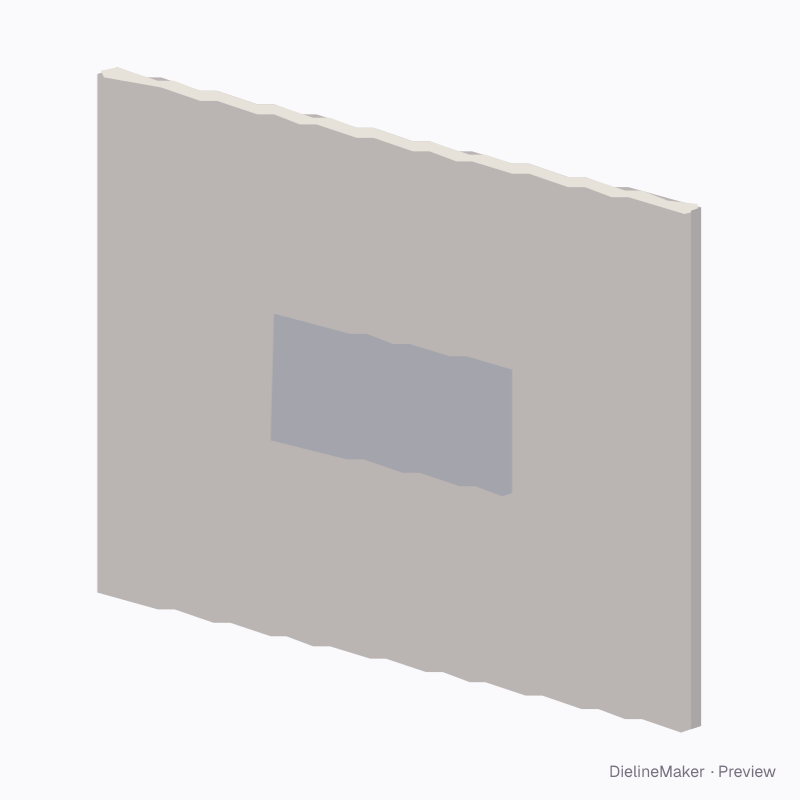

A wall-mounted door sign with a fixed name plate above a track whose sliding cover shows one status and hides the other. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size250 × 120 mm
Artwork area250 × 84 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-SLIDERSIGN-01
- Object size
- Plate width 250 · Plate height 120 mm
- Size range
- Plate width 80–600 · Plate height 50–400 mm
- Parts
- 3 parts — Name plate, Status strip (under the slider), Slider face
- Artwork area
- 0.034 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Track height%
- Slider width%
- Slider position%
- Show wall sectionon / off
- Plate / slider4 options
Ready-sized sliding status door sign presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this sliding status door sign yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
