A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLIDERSIGN-01Apparel & merchandise

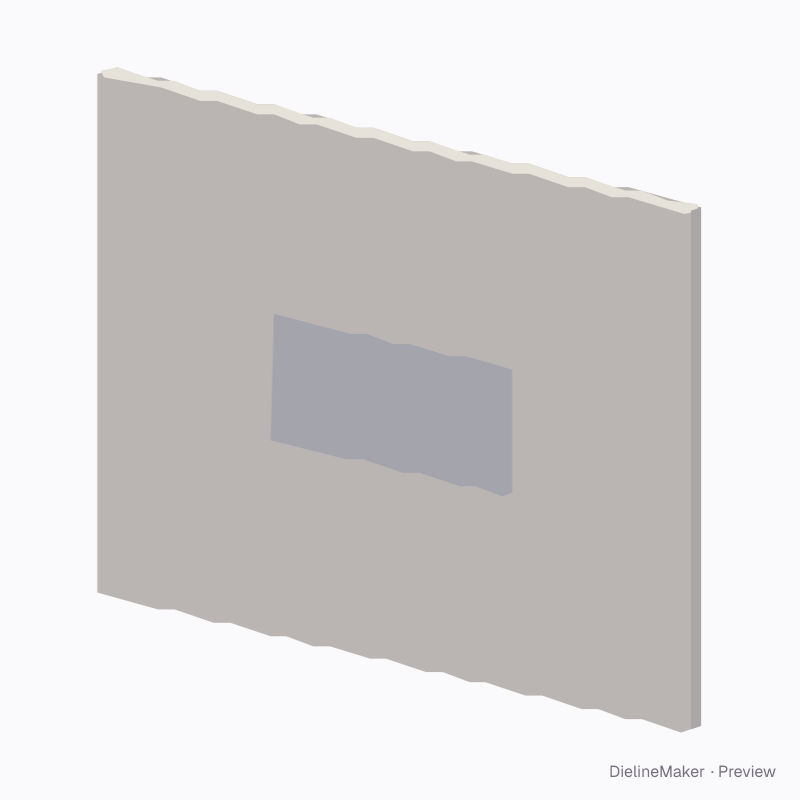

Office door sign with vacant / occupied slider decoration template
A wall-mounted door sign with a fixed name plate above a track whose sliding cover shows one status and hides the other. A ready-sized preset of the sliding status door sign — adjust the object dimensions and decoration area to preview your artwork at size.
Object size250 × 120 mm
Artwork area250 × 84 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-SLIDERSIGN-01
- Object size
- Plate width 250 · Plate height 120 mm
- Size range
- Plate width 80–600 · Plate height 50–400 mm
- Parts
- 3 parts — Name plate, Status strip (under the slider), Slider face
- Artwork area
- 0.034 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Track height%
- Slider width%
- Slider position%
- Show wall sectionon / off
- Plate / slider4 options
The sliding status door sign family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this office door sign with vacant / occupied slider yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
