FEFCO 0935Shipping
Stepped partition, 4 × 3 cells 400×300×200 dieline

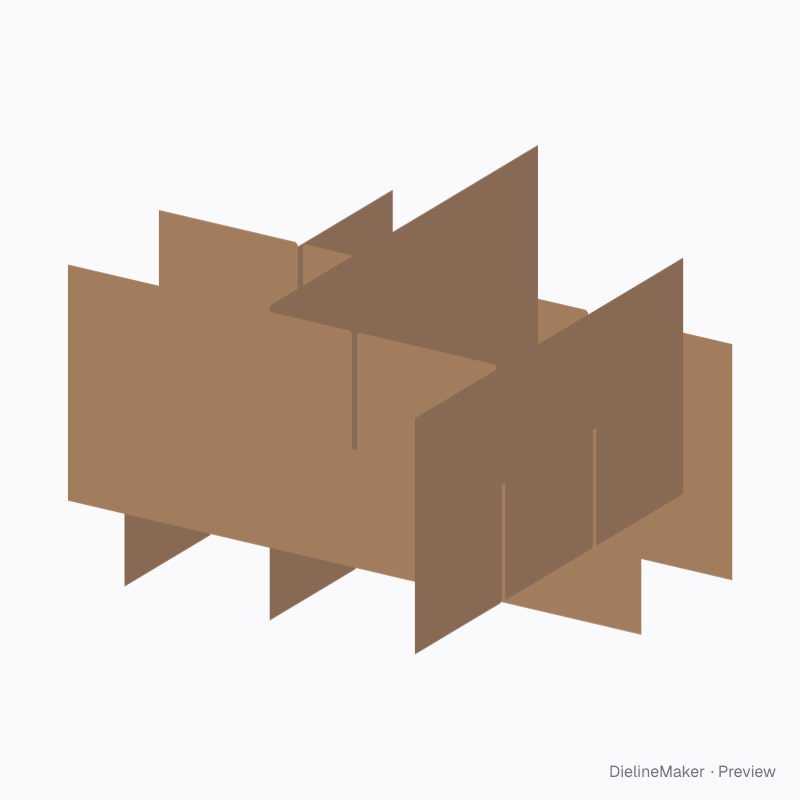

A slotted grid whose centre cross strip stands taller, as a handle or a separator. A ready-sized preset of the slotted partition with posts or step — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside400 × 300 × 200 mm
Outside400 × 300 × 200 mm
Flat blank298 × 200 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0935
- Inside size
- Case inside length 400 · Case inside width 300 · Case inside height 200 mm
- Size range
- Case inside length 80–1000 · Case inside width 80–800 · Case inside height 40–600 mm
- Manufacturing
- 400 × 300 × 200 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Long strip 1, Long strip 2, Cross strip 1, Tall cross strip, Cross strip 3
- Board area
- 0.265 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WF-flute
- Good for

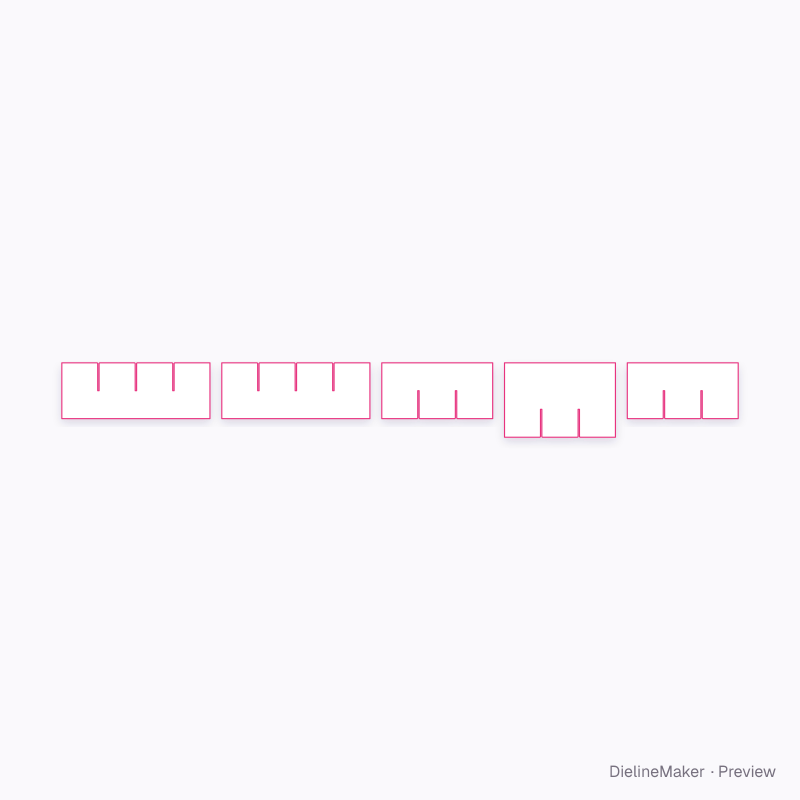

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Partition2 options
- Cells along lengthcount
- Cells across widthcount
