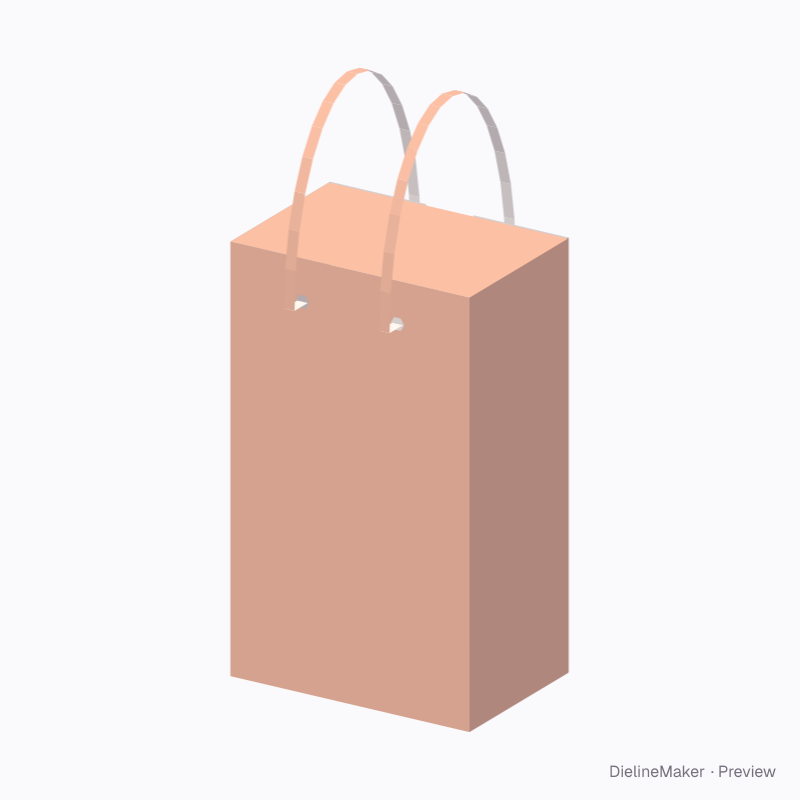

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CORD-SNAP-01Tuck end
Snap-lock carton with cord handle holes dieline
1-2-3 snap-lock bottom with paired cord holes in the front and back below the tuck top, for a rope or cord carry handle. A ready-sized preset of the snap-lock bottom — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 150 mm
Outside91 × 61 × 151 mm
Flat blank313.5 × 264 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CORD-SNAP-01
- Inside size
- Length 90 · Width 60 · Height 150 mm
- Size range
- Length 30–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 90.5 × 60.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Carton, Cord loop 1, Cord loop 2
- Board area
- 0.067 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CORD-SNAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontCarton | 90.5 × 150.5 | L + T × H + T |
| Left sideCarton | 60.5 × 150.5 | W + T × H + T |
| BackCarton | 90.5 × 150.5 | L + T × H + T |
| Right sideCarton | 60 × 150.5 | W × H + T |
| Glue flapCarton | 12 × 150.5 | – × H + T |
| Top closureCarton | 90.5 × 59.5 | L + T × W − T |
| Top tuckCarton | 89.5 × 15 | L − T × – |
| Top dust flapCarton | 60.5 × 37.5 | W + T × – |
| Top dust flapCarton | 60 × 37.5 | W × – |
| Snap endCarton | 60.5 × 20 | W + T × – |
| Snap endCarton | 60 × 20 | W × – |
| Snap bottomCarton | 90.5 × 39 | L + T × – |
| Snap tuckCarton | 90.5 × 38.5 | L + T × – |
| Cord loop 1 ×2Cord loop 1 | 4 × 8 | – |
| Cord loop 1 ×2Cord loop 1 | 4 × 13.5 | – |
| Cord loop 1 ×2Cord loop 1 | 4 × 13.1 | – |
15 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 13 options; the template and 3D preview follow each change.
- Top end2 options
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Cord handle holeson / off
- Cord hole diametermm
- Cord hole spacingmm
- Cord colour (preview)6 options
- Cord hole dropmm
- Tongue widthmm
- Tongue heightmm
