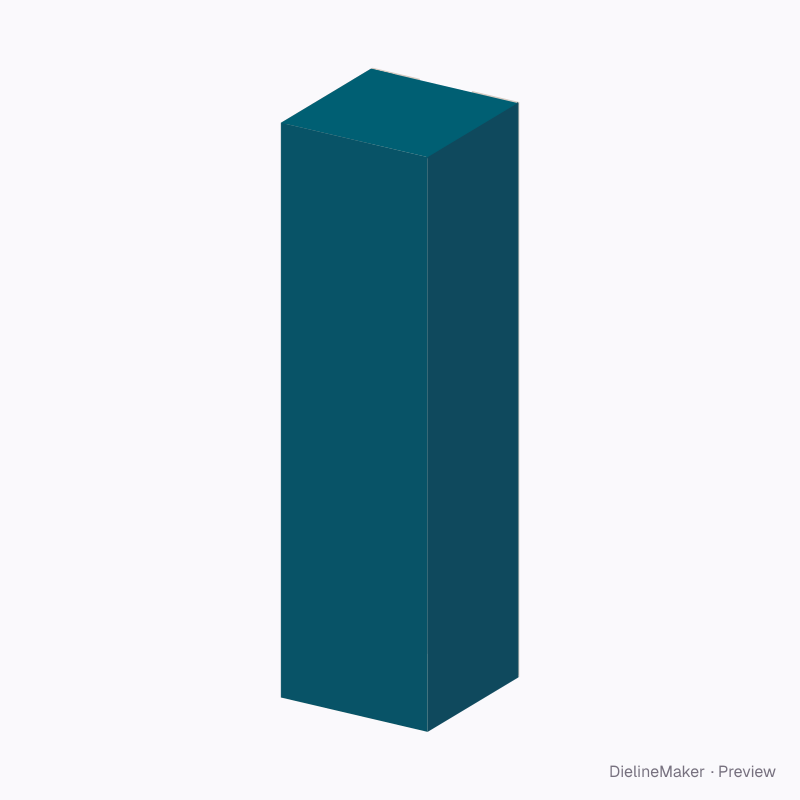

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A55.20.01.03Tuck end
Sauce bottle box dieline
Gift carton for a 5 oz hot sauce or dressing bottle. A ready-sized preset of the snap-lock bottom — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside50 × 50 × 180 mm
Outside50.9 × 50.9 × 180.9 mm
Flat blank213.4 × 277.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A55.20.01.03
- Inside size
- Length 50 · Width 50 · Height 180 mm
- Size range
- Length 30–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 50.5 × 50.5 × 180.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.048 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A55.20.01.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 50.5 × 180.5 | – × H + T |
| Left side | 50.5 × 180.5 | – × H + T |
| Back | 50.5 × 180.5 | – × H + T |
| Right side | 50 × 180.5 | – × H + T |
| Glue flap | 12 × 180.5 | – × H + T |
| Top closure | 50.5 × 49.5 | – |
| Top tuck | 49.5 × 15 | – |
| Top dust flap | 50.5 × 24.2 | – |
| Top dust flap | 50 × 24.2 | – |
| Snap end | 50.5 × 16.7 | – |
| Snap end | 50 × 16.7 | – |
| Snap bottom | 50.5 × 32.5 | – |
| Snap tuck | 50.5 × 32 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Top end2 options
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Cord handle holeson / off
- Tongue widthmm
- Tongue heightmm
The snap-lock bottom family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this sauce bottle box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
