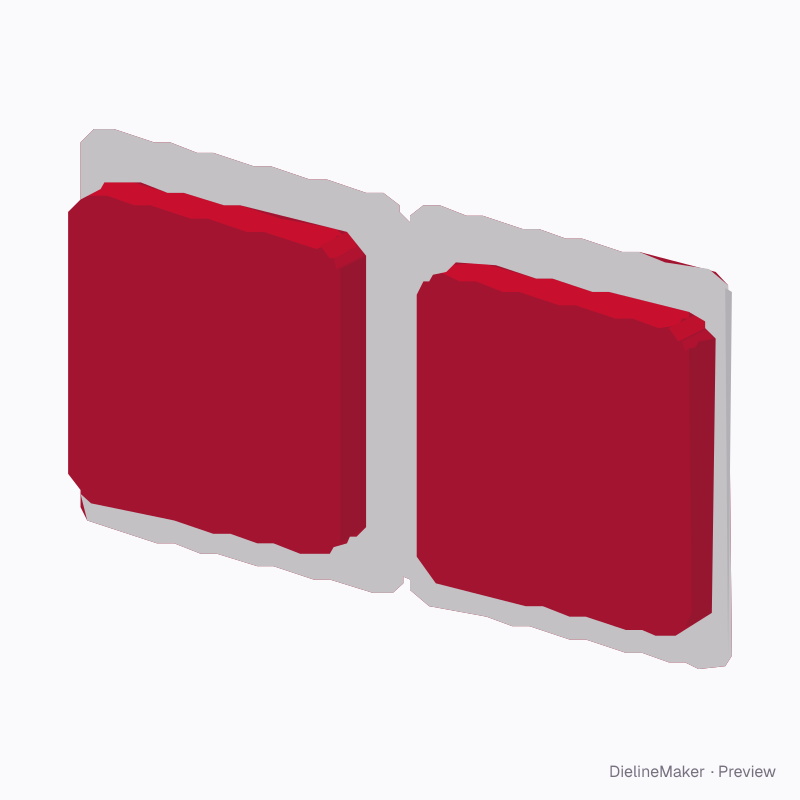

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SNAP-SACHET-01Labels
Snap sachet, flat dieline
A single-dose sachet with a scored rigid backing: snap it in half with one hand to open a channel and dispense. Print the front film; show it flat or snapped with a drop. A ready-sized preset of the snap sachet (break-open) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside80 × 5 × 45 mm
Outside80 × 5 × 45 mm
Flat blank80 × 45 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SNAP-SACHET-01
- Inside size
- Sachet length 80 · Cavity depth 5 · Sachet width 45 mm
- Size range
- Sachet length 40–140 · Cavity depth 2–12 · Sachet width 25–90 mm
- Manufacturing
- 80 × 5 × 45 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.004 m² · about 160 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Snap angle°
- Contents5 options
The snap sachet (break-open) family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this snap sachet, flat yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
