DM-SNAP-SACHET-01Labels

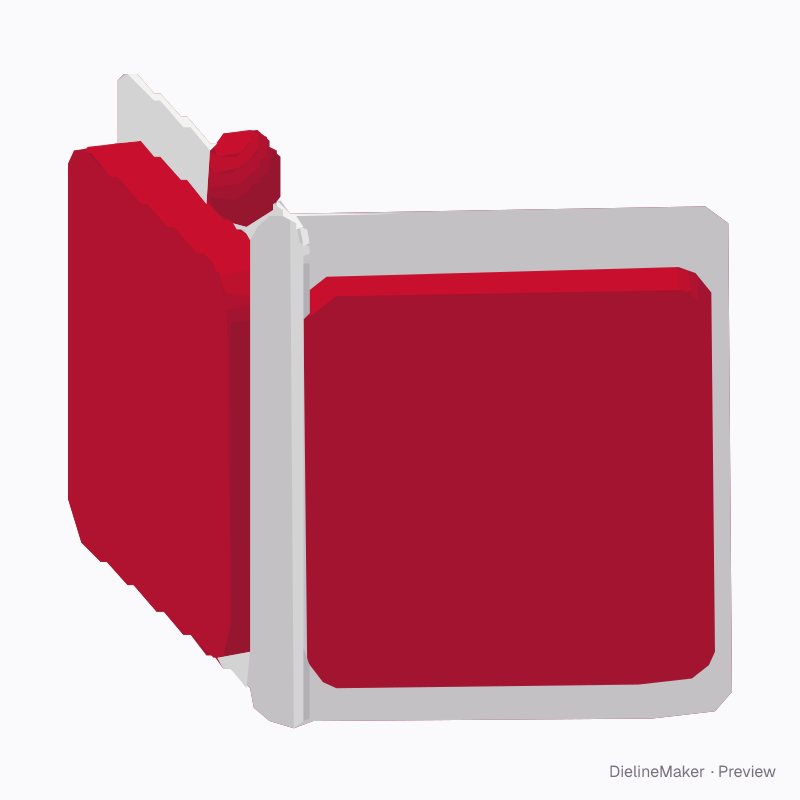

Snap sachet snapped open dieline
A single-dose sachet with a scored rigid backing: snap it in half with one hand to open a channel and dispense. Print the front film; show it flat or snapped with a drop. A ready-sized preset of the snap sachet (break-open) — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside80 × 5 × 45 mm
Outside80 × 5 × 45 mm
Flat blank80 × 45 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SNAP-SACHET-01
- Inside size
- Sachet length 80 · Cavity depth 5 · Sachet width 45 mm
- Size range
- Sachet length 40–140 · Cavity depth 2–12 · Sachet width 25–90 mm
- Manufacturing
- 80 × 5 × 45 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.004 m² · about 160 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

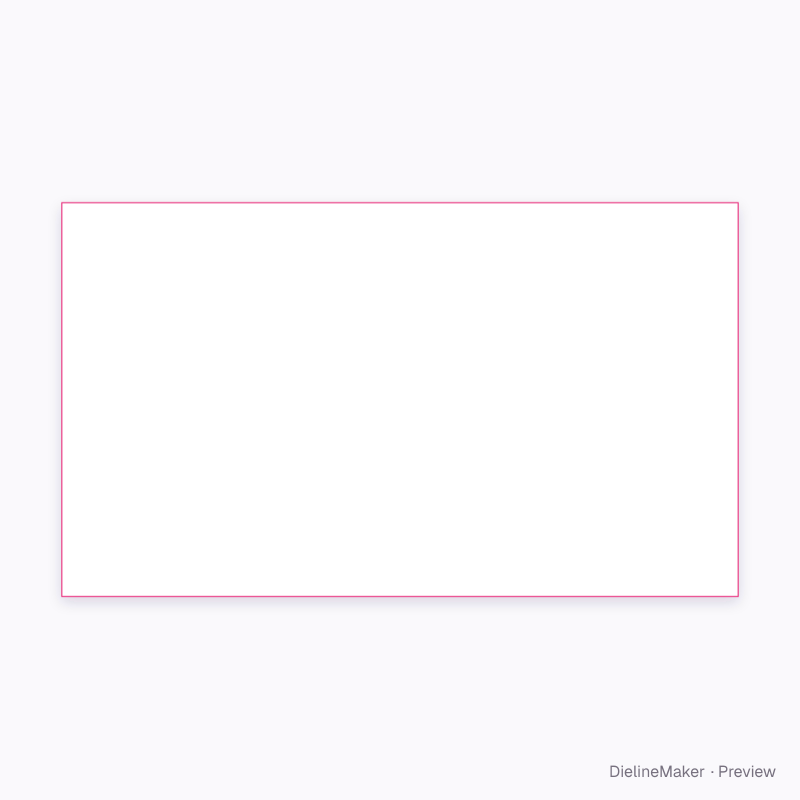

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
