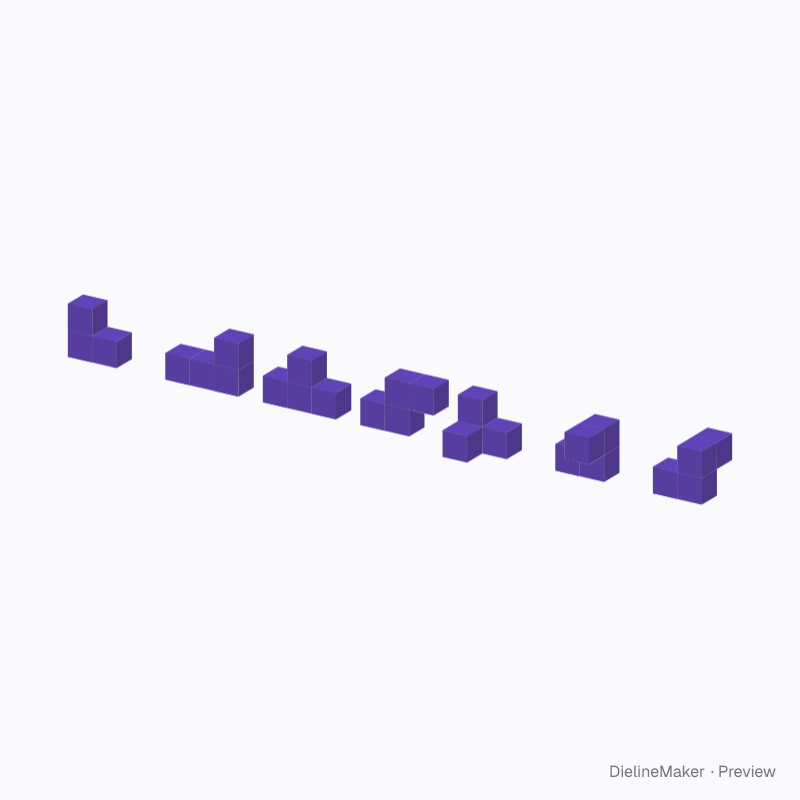

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Soma puzzle set · 30 mm cells dieline
Original nets for the seven concave pieces of a Soma construction puzzle. Choose one piece or the full set. Unit-cell edges stay equal; inward corners use reverse folds and coplanar face divisions are virtual bends. A ready-sized preset of the soma puzzle polycube paper nets — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside30 × 30 mm
Outside30 × 30 mm
Flat blank304 × 98 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Unit cell edge 30 · Set preview spacing 30 mm
- Size range
- Unit cell edge 15–120 · Set preview spacing 0–240 mm
- Manufacturing
- 30 × 30 mm score to score · inside vs outside sizes
- Parts
- 7 parts — Soma v piece, Soma l piece, Soma t piece, Soma z piece, Soma corner piece, Soma screw-left piece, Soma screw-right piece
- Board area
- 0.121 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 18 pt
- Good for
