Preview image

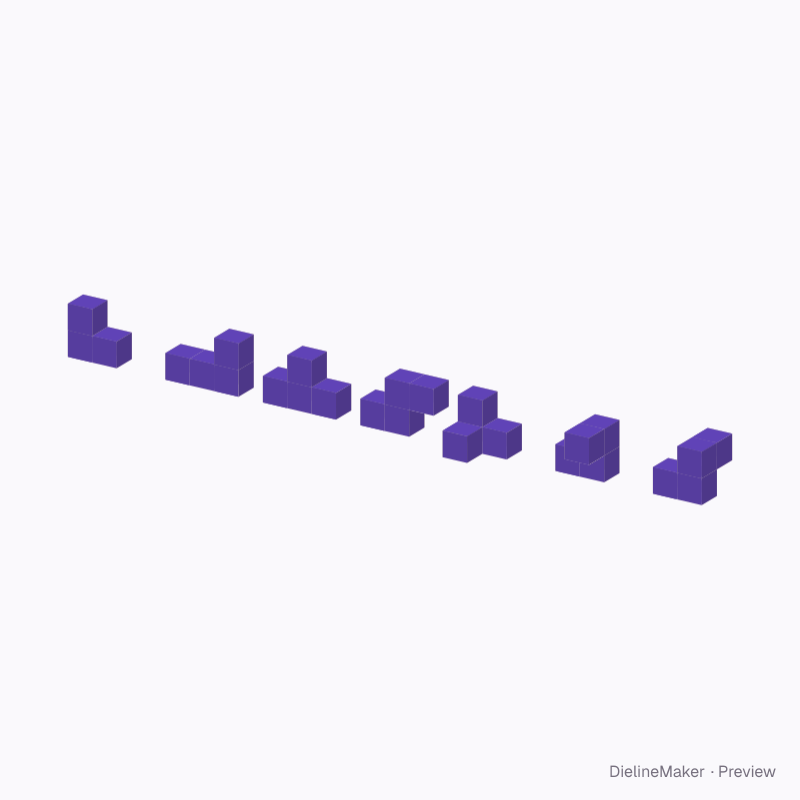

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Soma puzzle set · 50 mm cells dieline
Original nets for the seven concave pieces of a Soma construction puzzle. Choose one piece or the full set. Unit-cell edges stay equal; inward corners use reverse folds and coplanar face divisions are virtual bends. A ready-sized preset of the soma puzzle polycube paper nets — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside50 × 50 mm
Outside50 × 50 mm
Flat blank504 × 158 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Unit cell edge 50 · Set preview spacing 50 mm
- Size range
- Unit cell edge 15–120 · Set preview spacing 0–240 mm
- Manufacturing
- 50 × 50 mm score to score · inside vs outside sizes
- Parts
- 7 parts — Soma v piece, Soma l piece, Soma t piece, Soma z piece, Soma corner piece, Soma screw-left piece, Soma screw-right piece
- Board area
- 0.323 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Puzzle piece8 options
- Joining tab depthmm
The soma puzzle polycube paper nets family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this soma puzzle set · 50 mm cells yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
