A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels

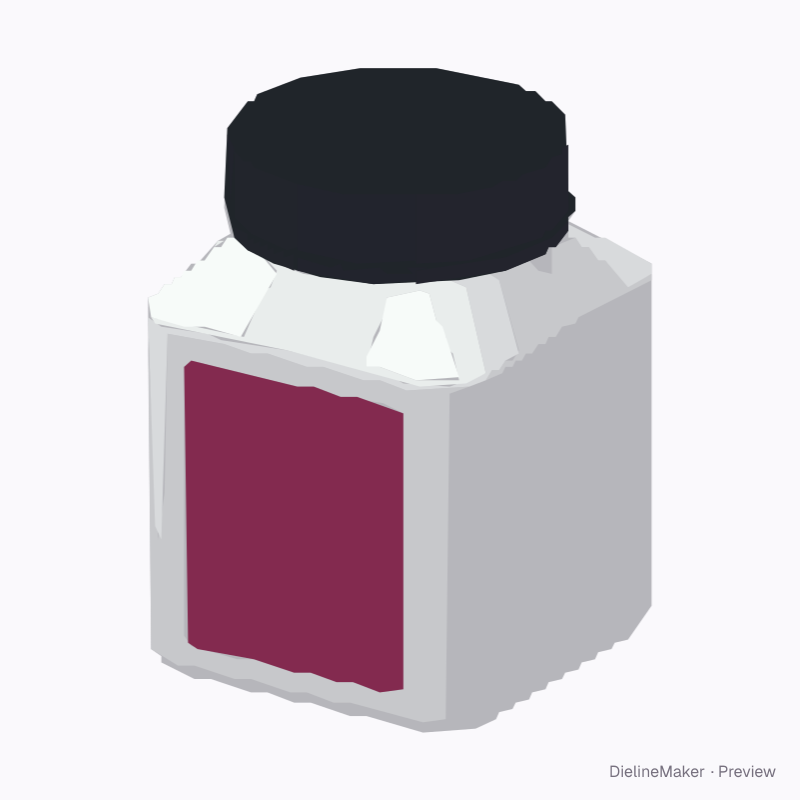

Small square preserve jar label template
50 × 50 × 70 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the square glass jar — adjust the object dimensions and decoration area to preview your artwork at size.
Object size50 × 50 × 70 mm
Artwork area33 × 39.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 50 · Body depth 50 · Overall height 70 mm
- Size range
- Body width 45–220 · Body depth 35–180 · Overall height 25–220 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.003 m²
- Good for

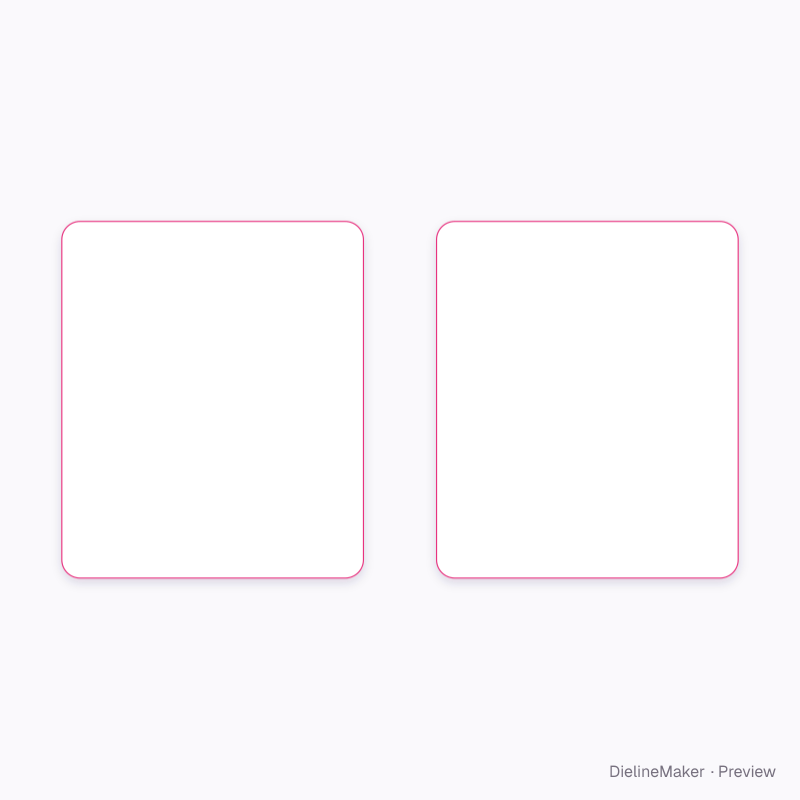

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
- Lid labelon / off
- Contents preview4 options
- Use2 options
- Body material3 options
The square glass jar family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this small square preserve jar yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
