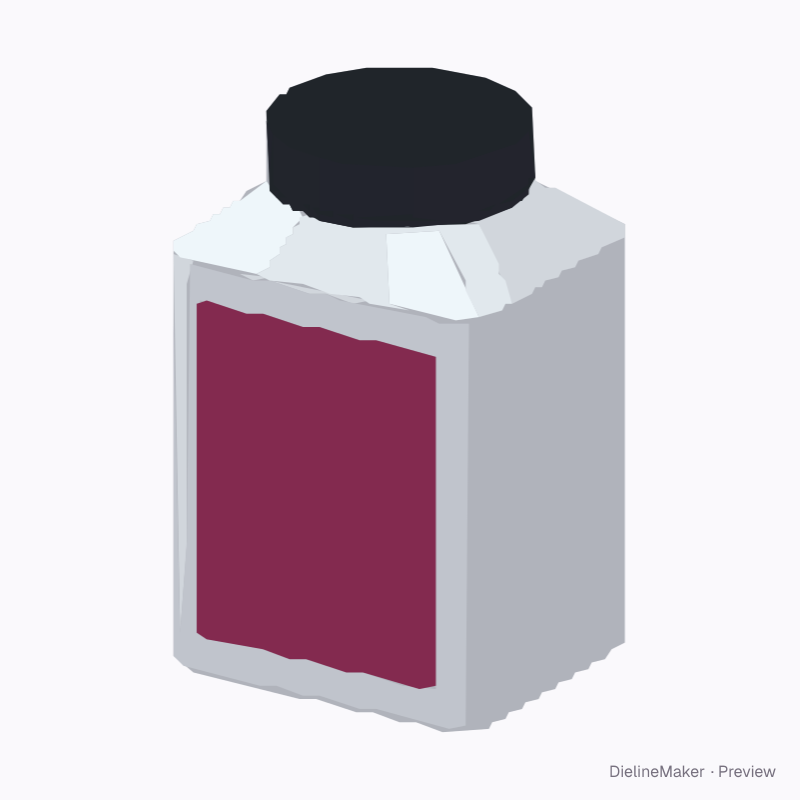

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Clear square PET snack jar label template
Rounded rectangular glass walls rise to a circular screw neck and lid. Front and back labels are separate flat pieces; these artwork templates are not glass mould drawings. A ready-sized preset of the square glass jar — adjust the object dimensions and decoration area to preview your artwork at size.
Object size90 × 75 × 140 mm
Artwork area68 × 87.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 90 · Body depth 75 · Overall height 140 mm
- Size range
- Body width 45–220 · Body depth 35–180 · Overall height 25–220 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.012 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
- Lid labelon / off
- Contents preview4 options
- Use2 options
- Body material3 options
The square glass jar family
The same model with sizes and artwork options ready to customize.

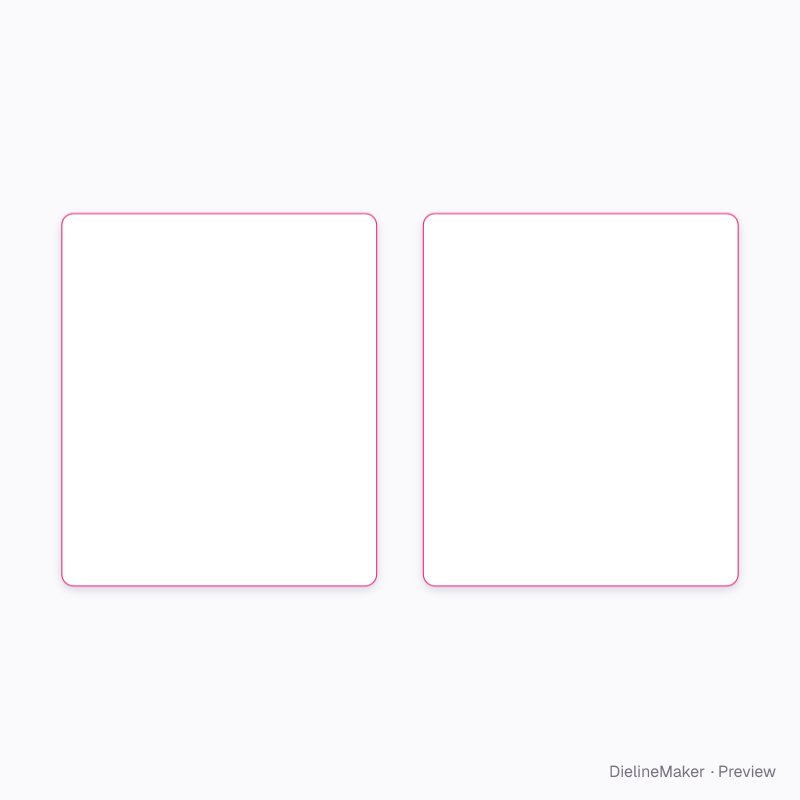

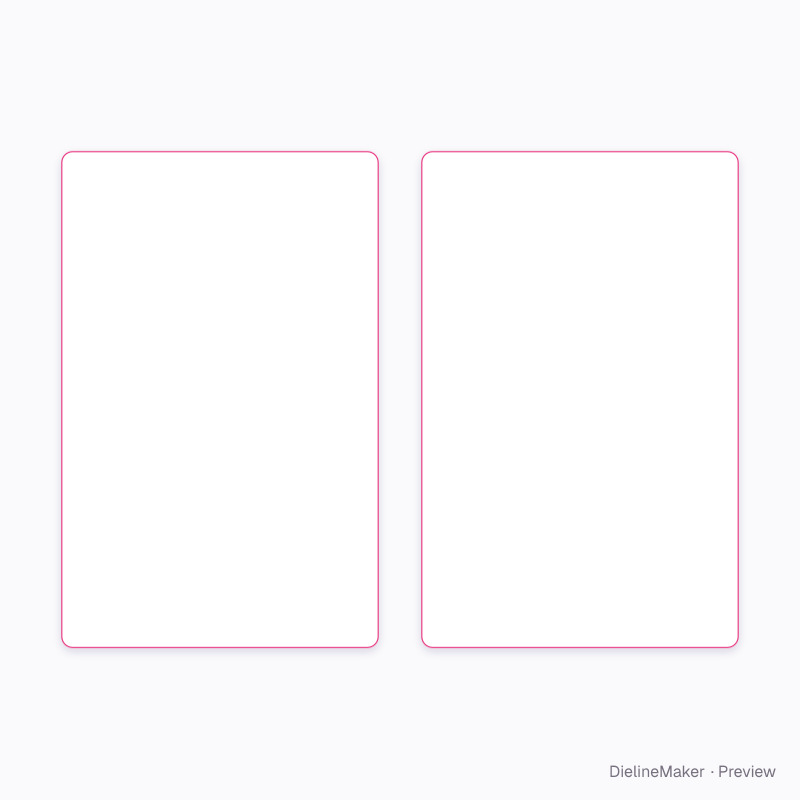

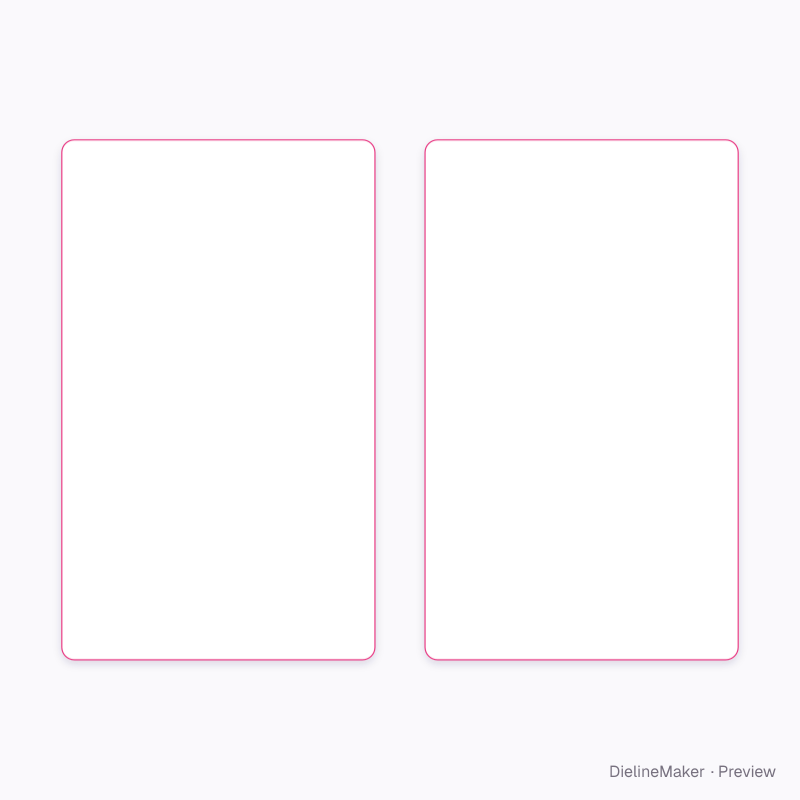

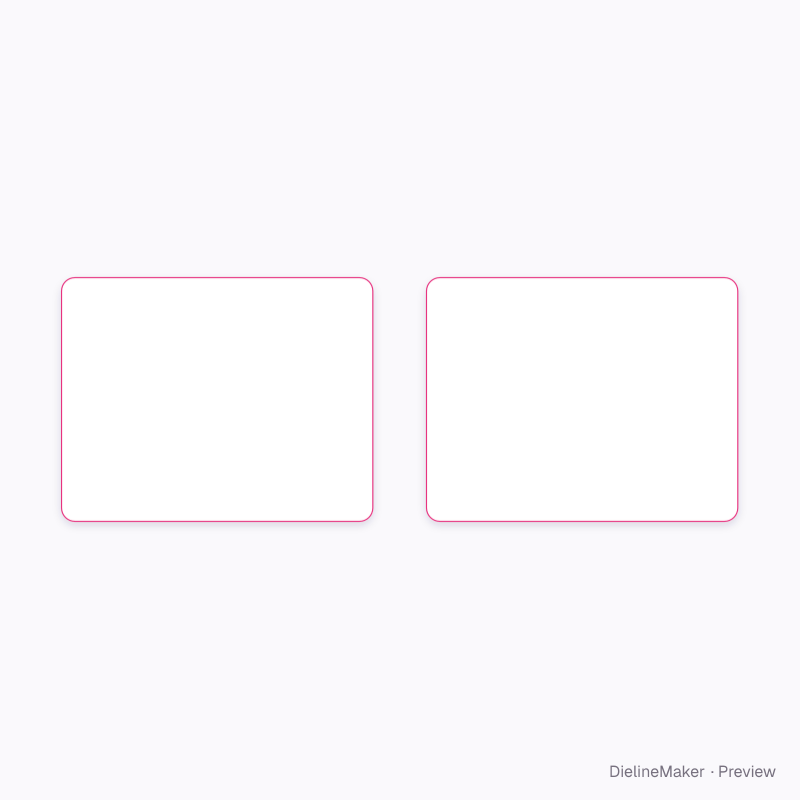

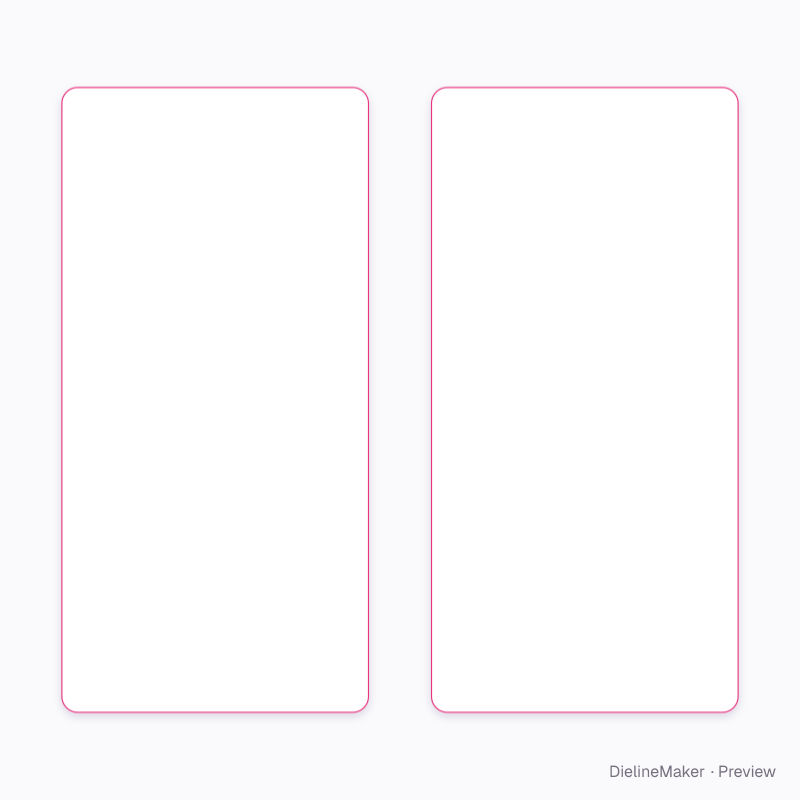

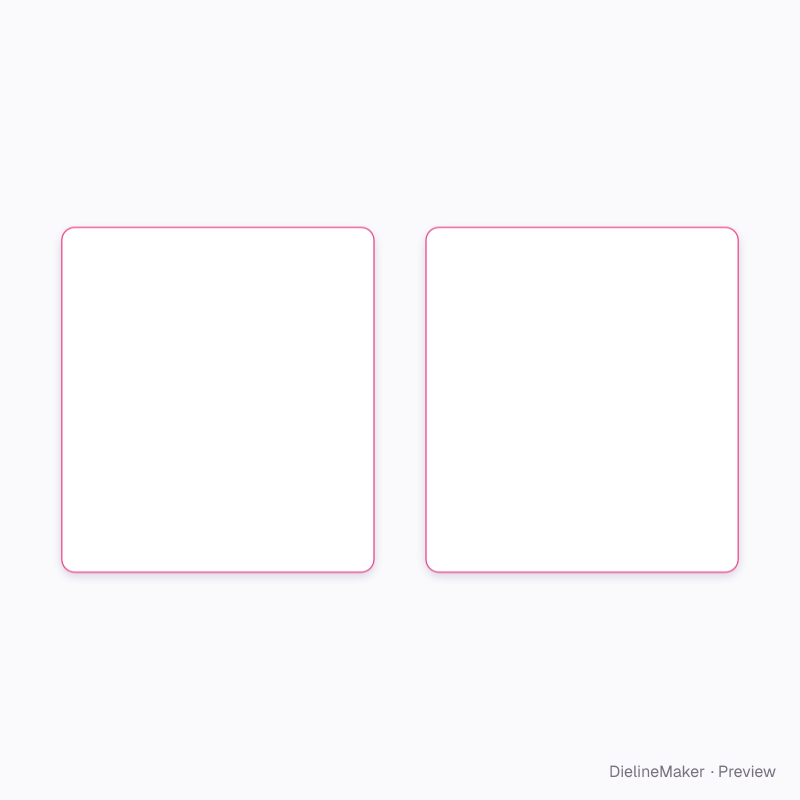

Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

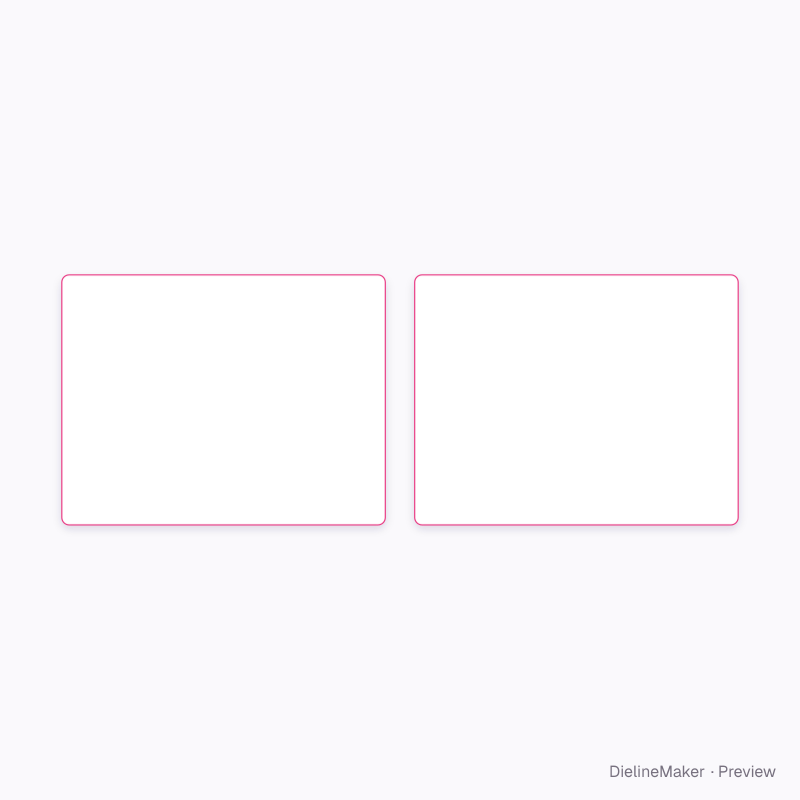

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this clear square pet snack jar yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
