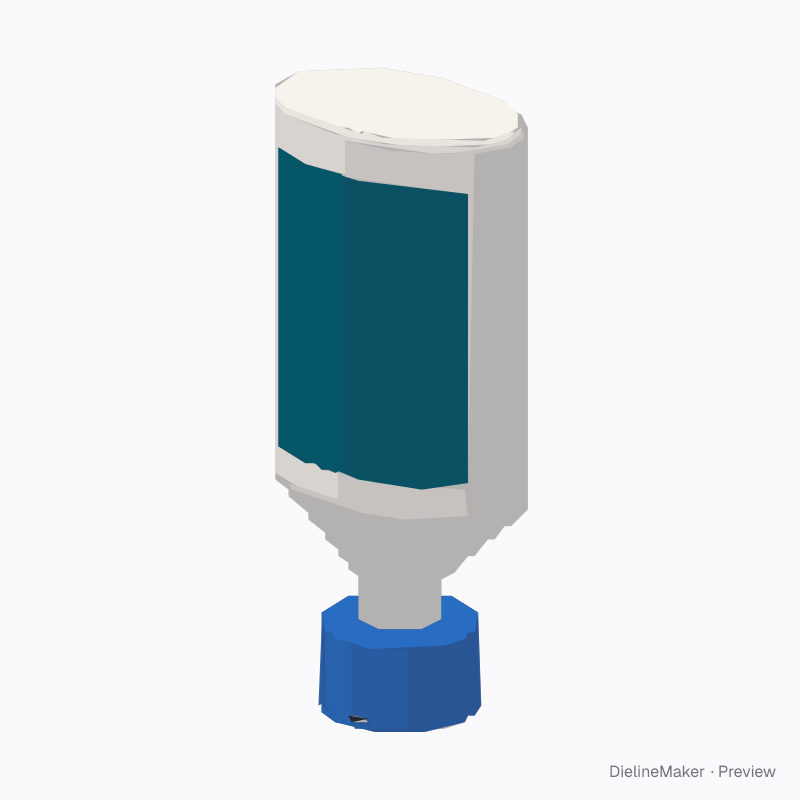

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Mayonnaise squeeze bottle label template
Squeeze condiment bottle with independently sized width and depth, shaped shoulders and a standing flip-top closure. Exports are the flat front and back labels; body dimensions are a visual starting point, not a mould drawing or certified capacity. A ready-sized preset of the squeeze condiment bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size90 × 52 × 205 mm
Artwork area73.8 × 102.4 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 90 · Body depth 52 · Overall height 205 mm
- Size range
- Body width 40–240 · Body depth 25–180 · Overall height 90–420 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.015 m²
- Good for

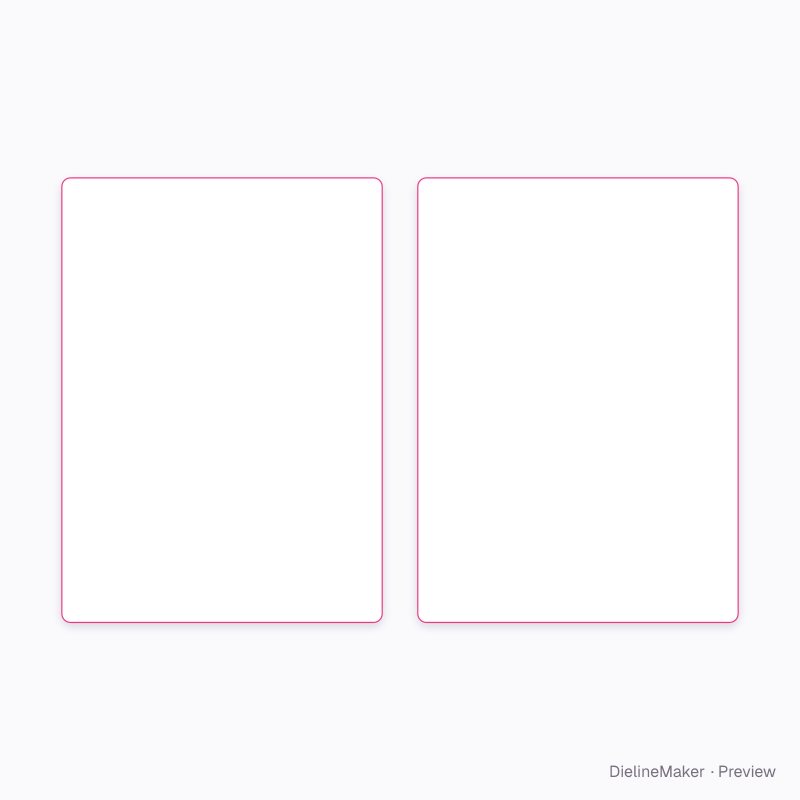

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
