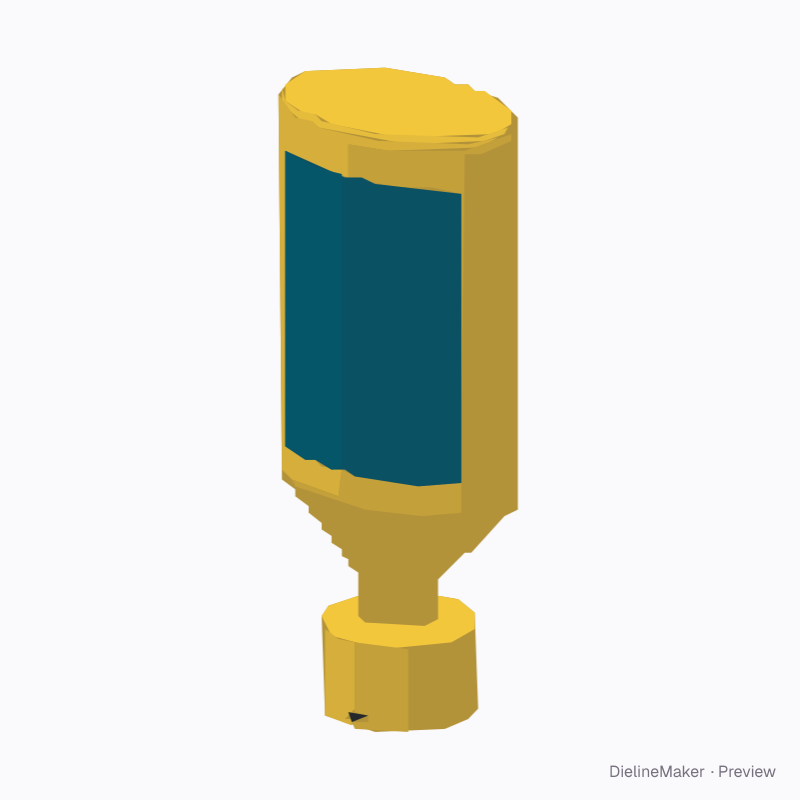

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Mustard squeeze bottle label template
Squeeze condiment bottle with independently sized width and depth, shaped shoulders and a standing flip-top closure. Exports are the flat front and back labels; body dimensions are a visual starting point, not a mould drawing or certified capacity. A ready-sized preset of the squeeze condiment bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size70 × 42 × 170 mm
Artwork area57.4 × 83.8 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 70 · Body depth 42 · Overall height 170 mm
- Size range
- Body width 40–240 · Body depth 25–180 · Overall height 90–420 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.010 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
The squeeze condiment bottle family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this mustard squeeze bottle yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
