ECMA A20.20.03.03Tuck end
Sewing kit carton — Straight tuck end dieline
Editable 95 × 40 × 120 mm starting point using straight tuck end. Adjust the dimensions to your product before prototyping. A ready-sized preset of the straight tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside95 × 40 × 120 mm
Outside96 × 41 × 121 mm
Flat blank283.5 × 229.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.03
- Inside size
- Length 95 · Width 40 · Height 120 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 95.5 × 40.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.048 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for

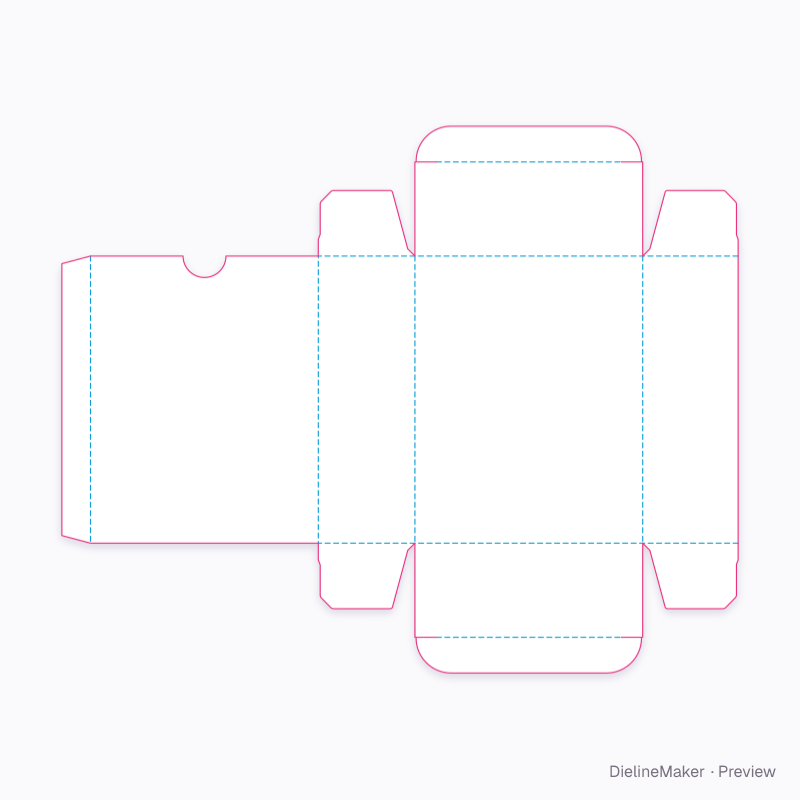

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 95.5 × 120.5 | L + T × H + T |
| Left side | 40.5 × 120.5 | W + T × H + T |
| Back | 95.5 × 120.5 | L + T × H + T |
| Right side | 40 × 120.5 | W × H + T |
| Glue flap | 12 × 120.5 | – × H + T |
| Top closure | 95.5 × 39.5 | L + T × W − T |
| Top tuck | 94.5 × 15 | L − T × – |
| Top dust flap | 40.5 × 27.5 | W + T × – |
| Top dust flap | 40 × 27.5 | W × – |
| Bottom closure | 95.5 × 39.5 | L + T × W − T |
| Bottom tuck | 94.5 × 15 | L − T × – |
| Bottom dust flap | 40.5 × 27.5 | W + T × – |
| Bottom dust flap | 40 × 27.5 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Cord handle holeson / off
- Safety clasp3 options
- Clasp widthmm
