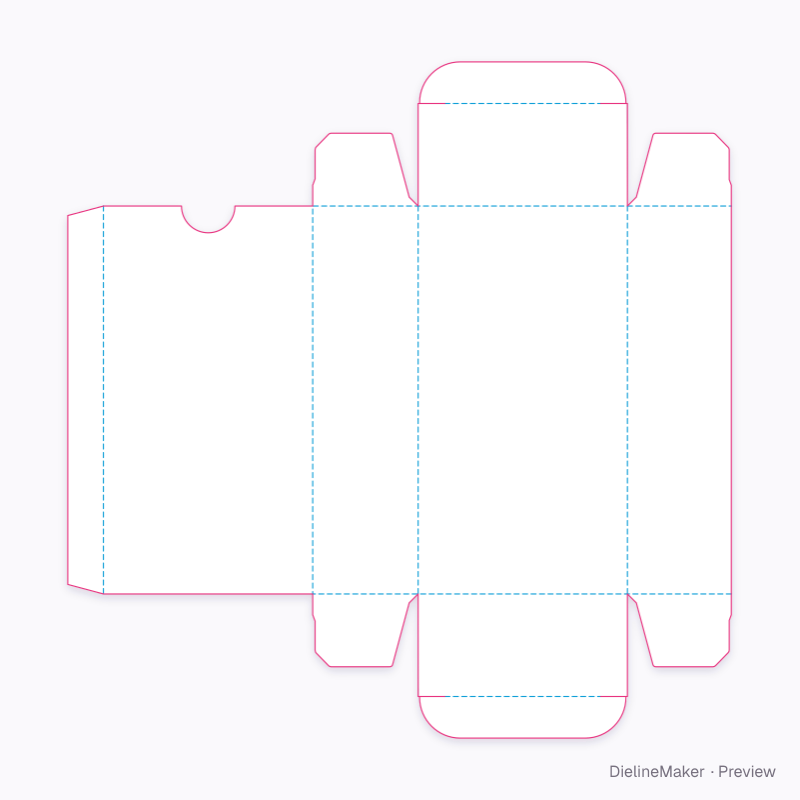

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A20.20.03.03Tuck end
Spice refill carton — Straight tuck end dieline
Editable 70 × 35 × 130 mm starting point using straight tuck end. Adjust the dimensions to your product before prototyping. A ready-sized preset of the straight tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 35 × 130 mm
Outside71 × 36 × 131 mm
Flat blank223.5 × 227.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.03
- Inside size
- Length 70 · Width 35 · Height 130 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 70.5 × 35.5 × 130.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.038 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 70.5 × 130.5 | L + T × H + T |
| Left side | 35.5 × 130.5 | W + T × H + T |
| Back | 70.5 × 130.5 | L + T × H + T |
| Right side | 35 × 130.5 | W × H + T |
| Glue flap | 12 × 130.5 | – × H + T |
| Top closure | 70.5 × 34.5 | L + T × W − T |
| Top tuck | 69.5 × 14 | L − T × – |
| Top dust flap | 35.5 × 24.5 | W + T × – |
| Top dust flap | 35 × 24.5 | W × – |
| Bottom closure | 70.5 × 34.5 | L + T × W − T |
| Bottom tuck | 69.5 × 14 | L − T × – |
| Bottom dust flap | 35.5 × 24.5 | W + T × – |
| Bottom dust flap | 35 × 24.5 | W × – |
