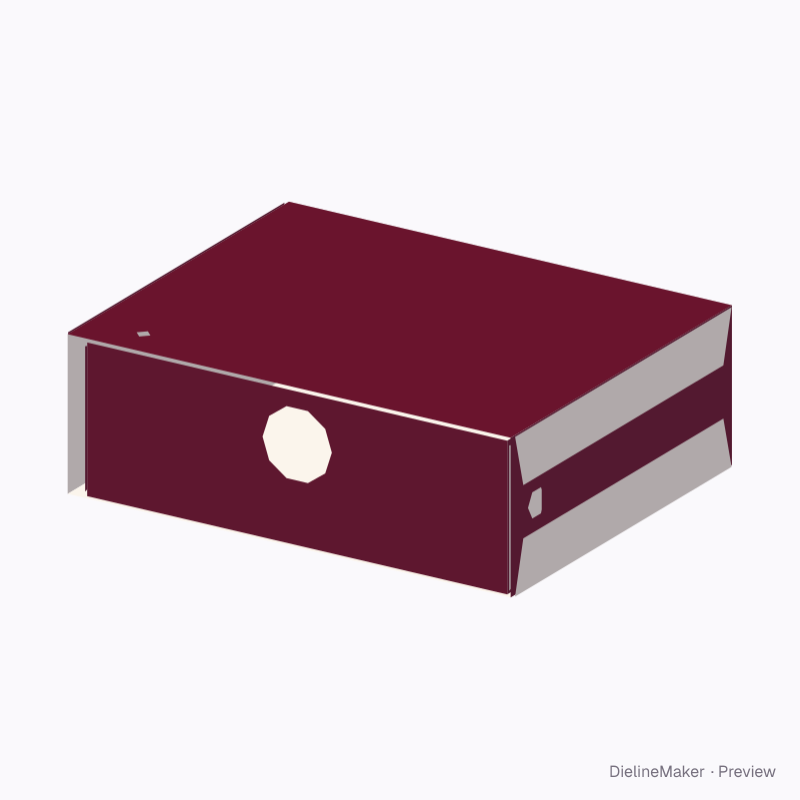

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SWIVEL-TRAY-BOX-01Rigid
Swivel jewellery box dieline
An open-fronted frame with a tray that swings out on a corner pivot pin, held closed by optional magnets. Two folding blanks; pin and magnets supplied. A ready-sized preset of the swivel-tray frame gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 100 × 40 mm
Outside121.2 × 101.2 × 41.2 mm
Flat blank332.2 × 246.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SWIVEL-TRAY-BOX-01
- Inside size
- Tray width 120 · Tray depth 100 · Tray height 40 mm
- Size range
- Tray width 50–400 · Tray depth 40–400 · Tray height 20–200 mm
- Manufacturing
- 120.6 × 100.6 × 40.6 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Open-front frame, Swivel tray
- Board area
- 0.070 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WBlack 350SBS 18 pt
- Good for

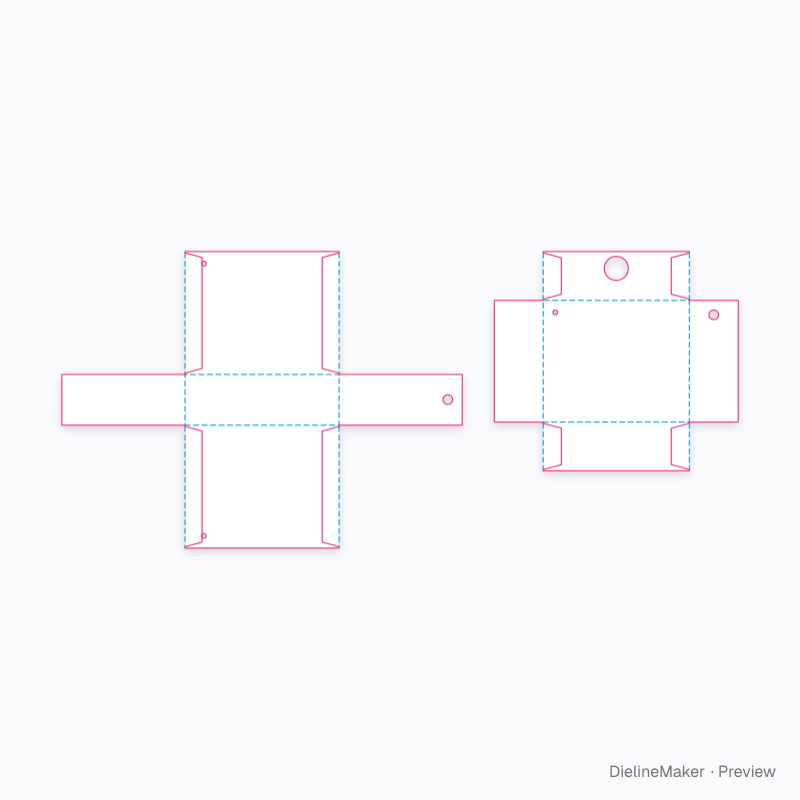

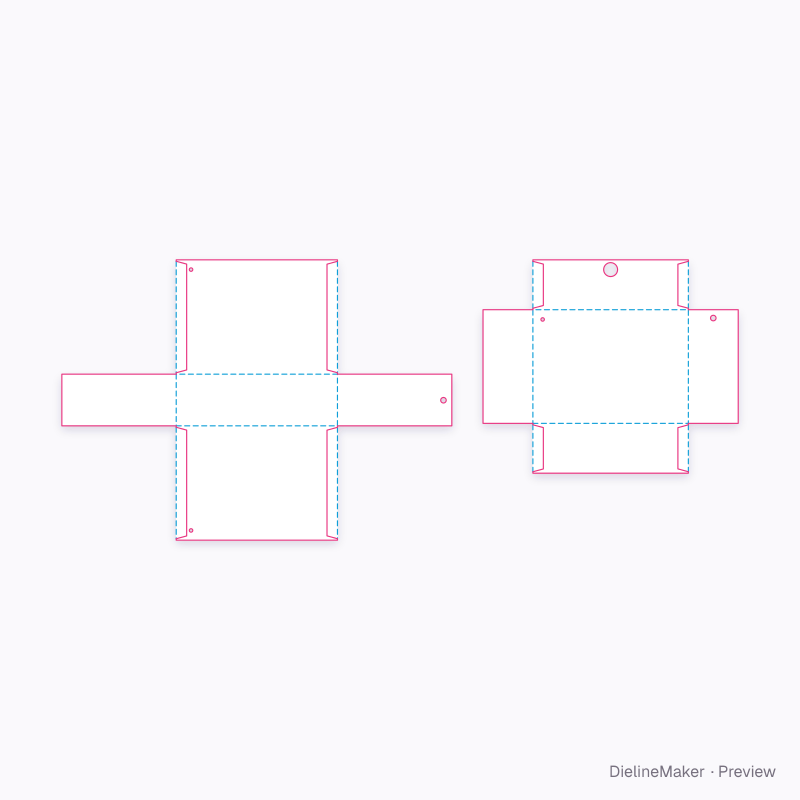

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SWIVEL-TRAY-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Frame backOpen-front frame | 127.8 × 42.2 | – |
| Frame topOpen-front frame | 127.8 × 102.2 | – |
| Frame bottomOpen-front frame | 127.8 × 102.2 | – |
| Frame leftOpen-front frame | 102.2 × 42.2 | – |
| Frame rightOpen-front frame | 102.2 × 42.2 | – |
| Glue flap ×4Open-front frame | 14.1 × 100 | – × W |
| Tray floorSwivel tray | 121.2 × 101.2 | L + 2T × W + 2T |
| Tray frontSwivel tray | 121.2 × 40.6 | L + 2T × H + T |
| Tray backSwivel tray | 121.2 × 40.6 | L + 2T × H + T |
| Tray leftSwivel tray | 40.6 × 101.2 | H + T × W + 2T |
| Tray rightSwivel tray | 40.6 × 101.2 | H + T × W + 2T |
| Glue flap ×4Swivel tray | 15 × 38.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Pivot insetmm
- Pivot holemm
- Magnet closureon / off
- Magnet diametermm
The swivel-tray frame gift box family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this swivel jewellery box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
