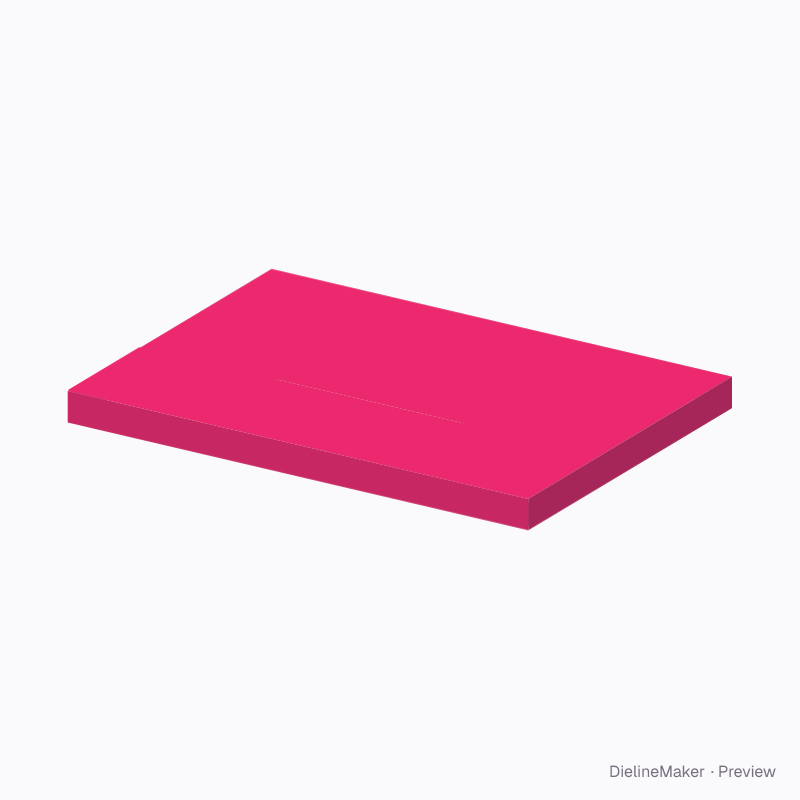

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-THIN-TONGUE-CASE-01Mailer
Thin document case with tongue dieline
A shallow case with a full back cover and a short front cover whose broad tongue tucks into a slit, plus fastening holes. A ready-sized preset of the thin case with tongue closure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 170 × 15 mm
Outside241 × 171 × 16 mm
Flat blank270 × 442.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-THIN-TONGUE-CASE-01
- Inside size
- Length 240 · Width 170 · Depth 15 mm
- Size range
- Length 80–500 · Width 60–400 · Depth 5–60 mm
- Manufacturing
- 240.5 × 170.5 × 15.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.110 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

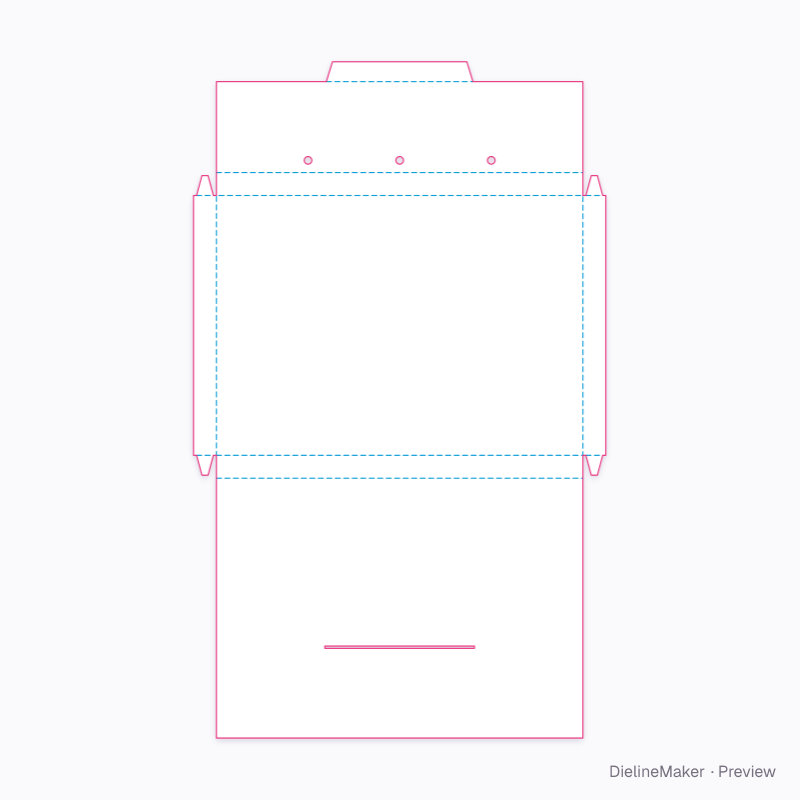

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-THIN-TONGUE-CASE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 240 × 170 | L × W |
| Long wall ×2 | 240 × 15 | L × H |
| End wall ×2 | 15 × 170 | H × W |
| Front cover | 240 × 59.5 | L × – |
| Full cover | 240 × 170 | L × W |
| Glue flap ×4 | 11 × 13 | – |
| Broad tongue | 96 × 13 | – |
