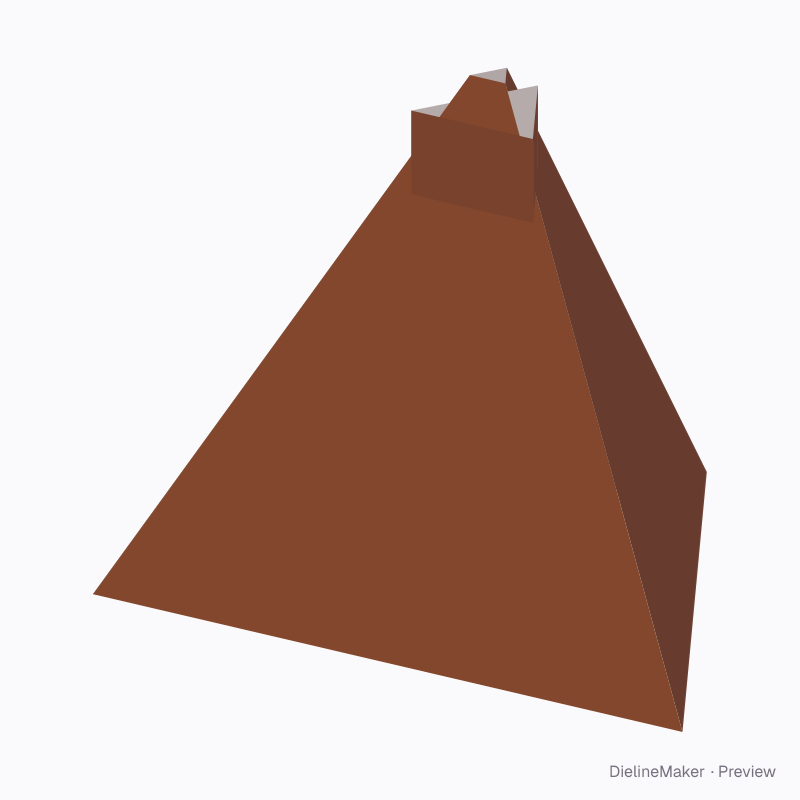

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TIE-PYRAMID-01Shapes
Triangular pyramid with collar dieline
A pyramid (or box with a pyramid roof) whose loose faces close at the tip with a ribbon through aligned holes or a separate collar. A ready-sized preset of the tie-closed pyramid carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 80 × 120 mm
OutsideØ 81 × 121 mm
Flat blank279.4 × 241.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TIE-PYRAMID-01
- Inside size
- Base width (across flats) 80 · Pyramid height 120 mm
- Size range
- Base width (across flats) 40–300 · Pyramid height 40–400 mm
- Manufacturing
- Ø 80.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Tie-closed pyramid, Neck collar
- Board area
- 0.036 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
