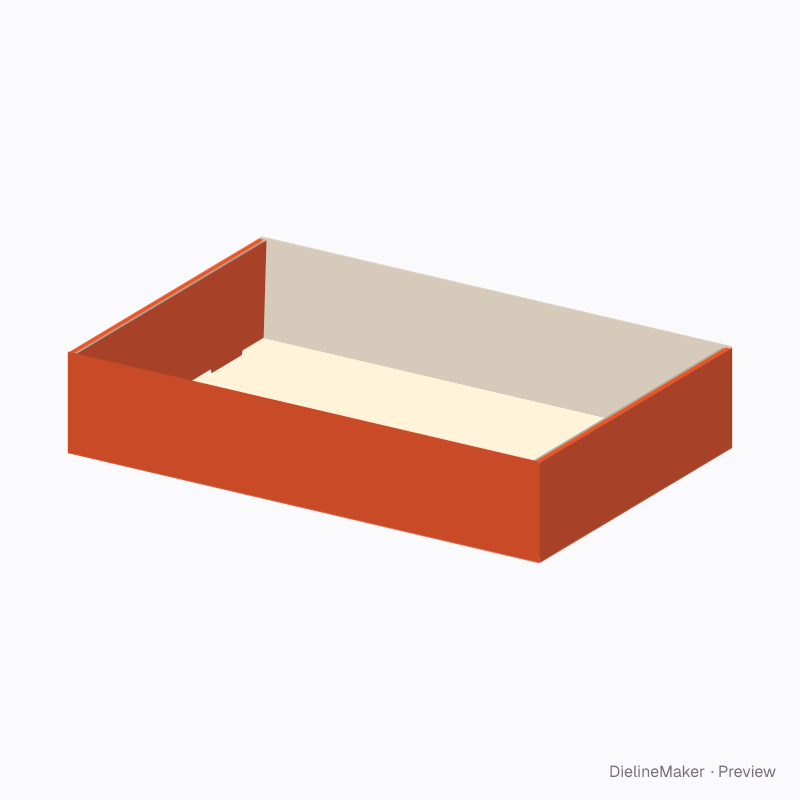

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROLLED-END-TRAY-01Trays & lids
Self-locking tray dieline
An unglued tray: rolled end walls trap the corner ears and lock into the base with tongues. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 60 mm
Outside309.6 × 203.2 × 61.6 mm
Flat blank554.4 × 323.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLLED-END-TRAY-01
- Inside size
- Length 300 · Width 200 · Height 60 mm
- Size range
- Length 50–800 · Width 40–600 · Height 15–300 mm
- Manufacturing
- 308 × 201.6 × 60.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.159 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteSBS 350Kraft 350FBB 400SBS 18 pt
- Good for

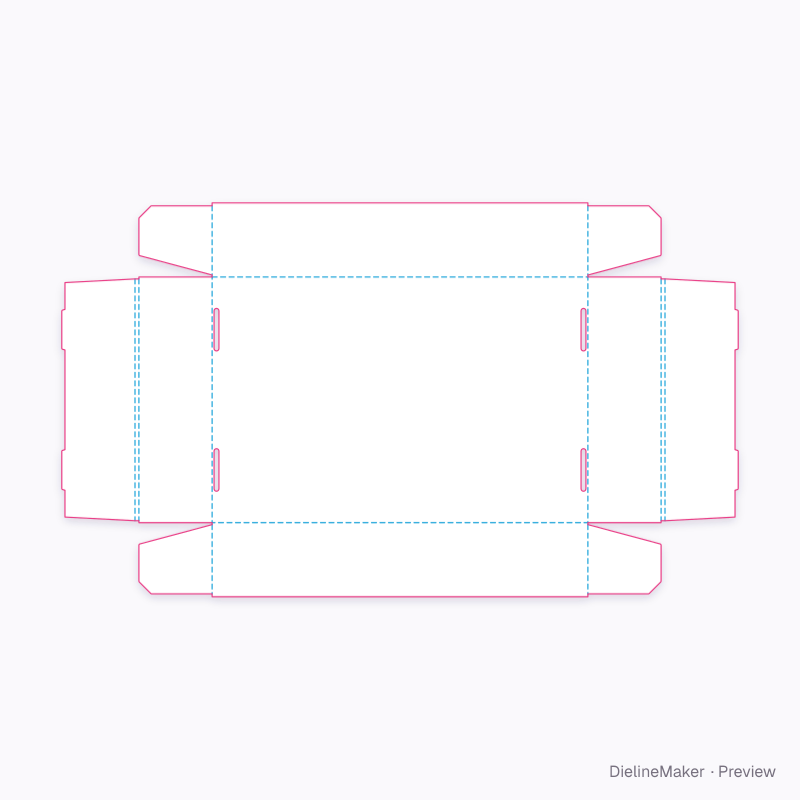

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROLLED-END-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 308 × 201.6 | – × W + T |
| Front | 308 × 60.8 | – × H + T/2 |
| Back | 308 × 60.8 | – × H + T/2 |
| Front ear ×2 | 60 × 56.8 | H × H − 2T |
| Back ear ×2 | 60 × 56.8 | H × H − 2T |
| Left end | 60 × 201.6 | H × W + T |
| Left end roll | 3.2 × 198.4 | – × W − T |
| Left end (inside) | 60 × 198.4 | H × W − T |
| Right end | 60 × 201.6 | H × W + T |
| Right end roll | 3.2 × 198.4 | – × W − T |
| Right end (inside) | 60 × 198.4 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Lock tonguescount
- Thumb notchon / off
- Food contacton / off
- Vent holes per long wallcount
- Vent diametermm
- End hand holeson / off

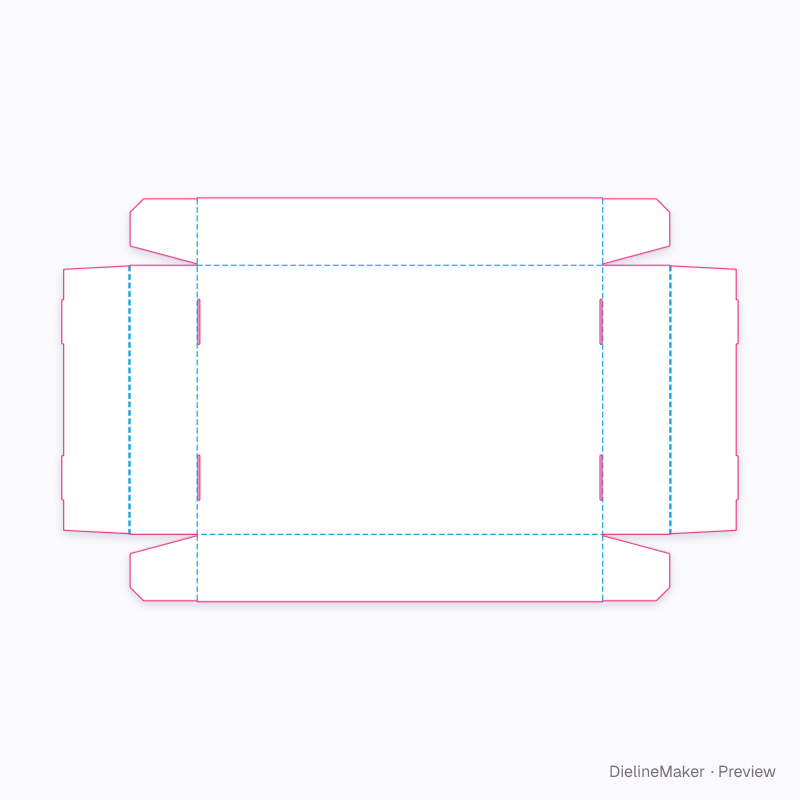

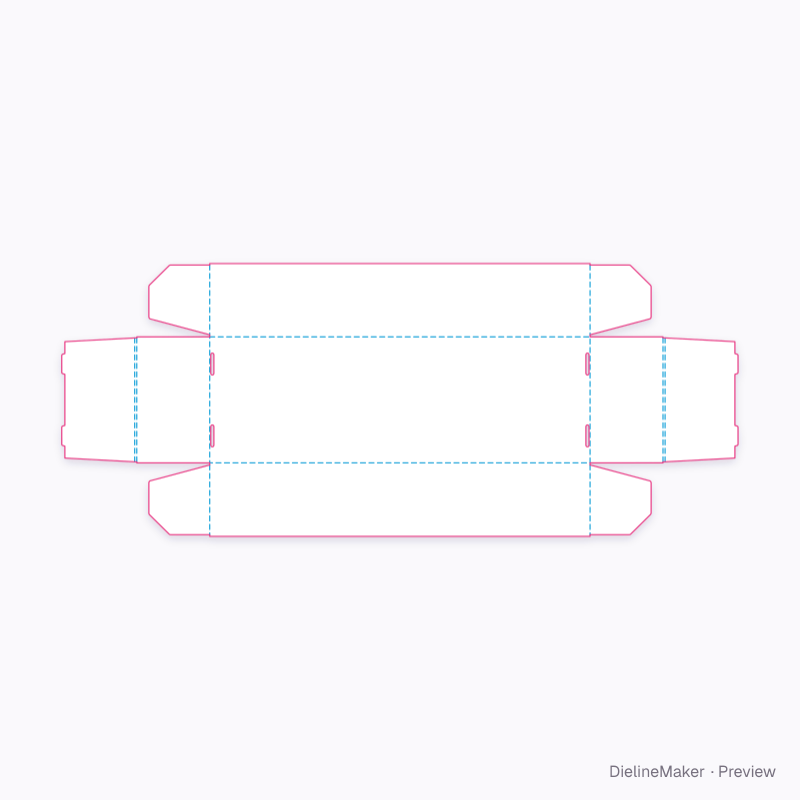

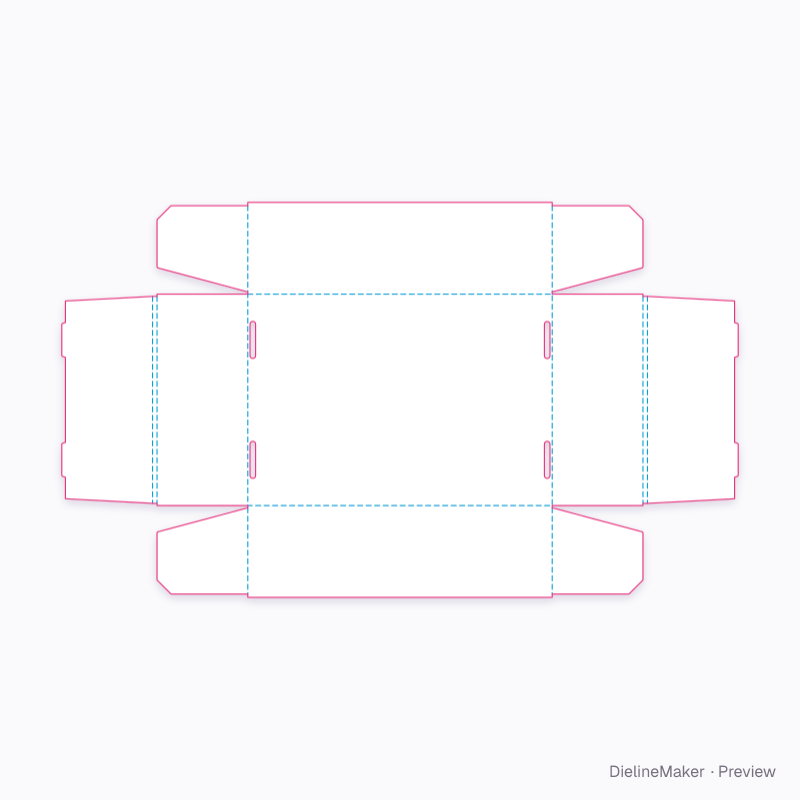

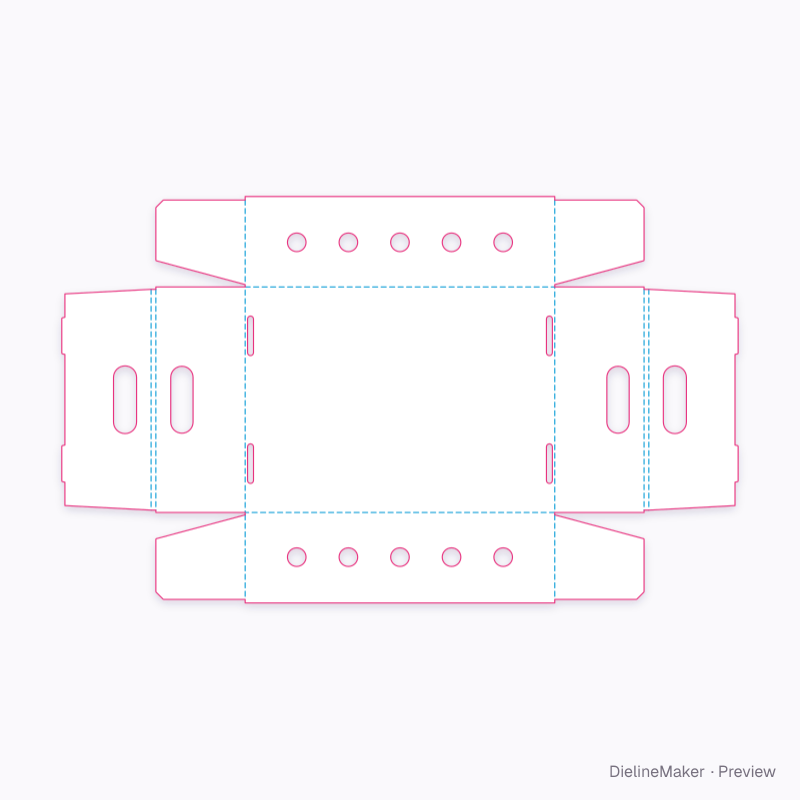

Ready-sized self-locking tray presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

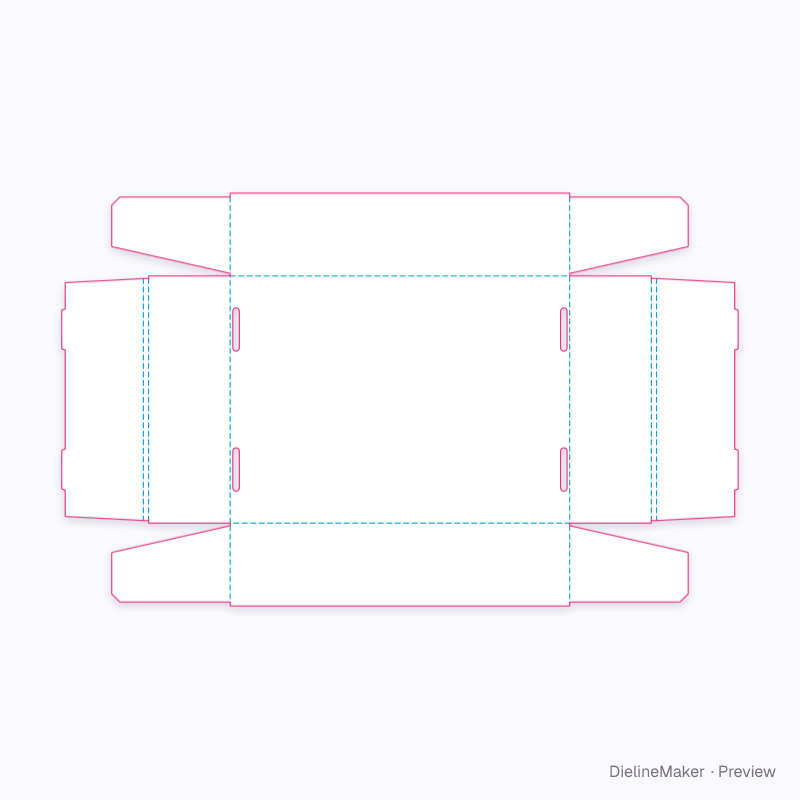

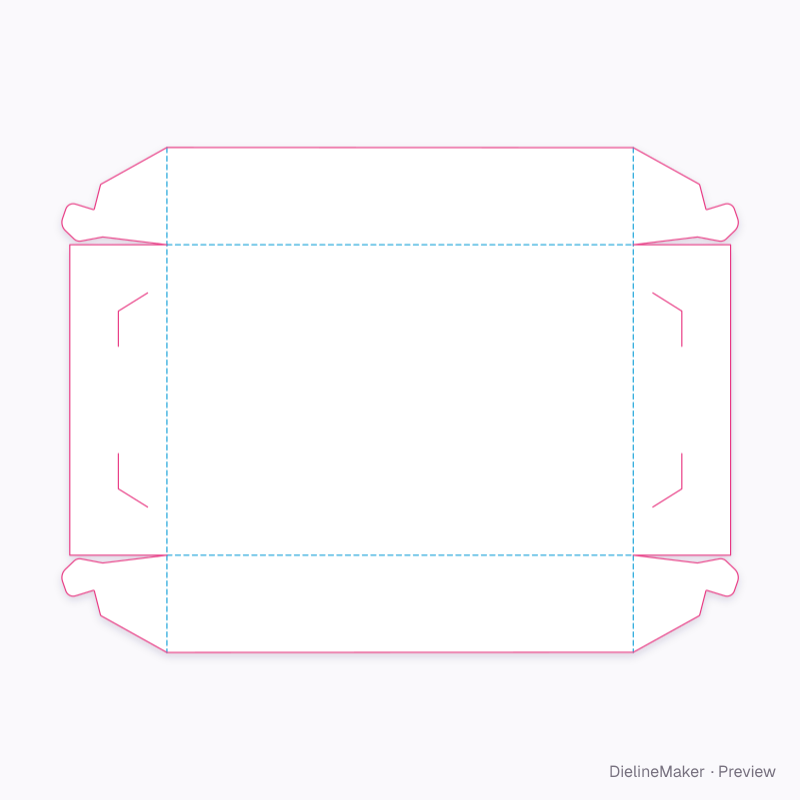

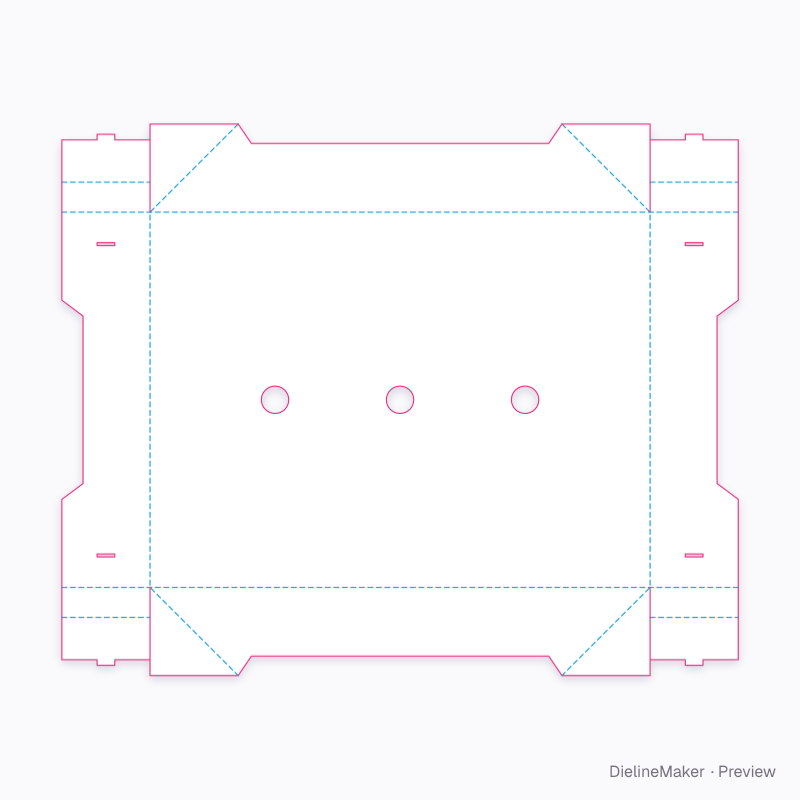

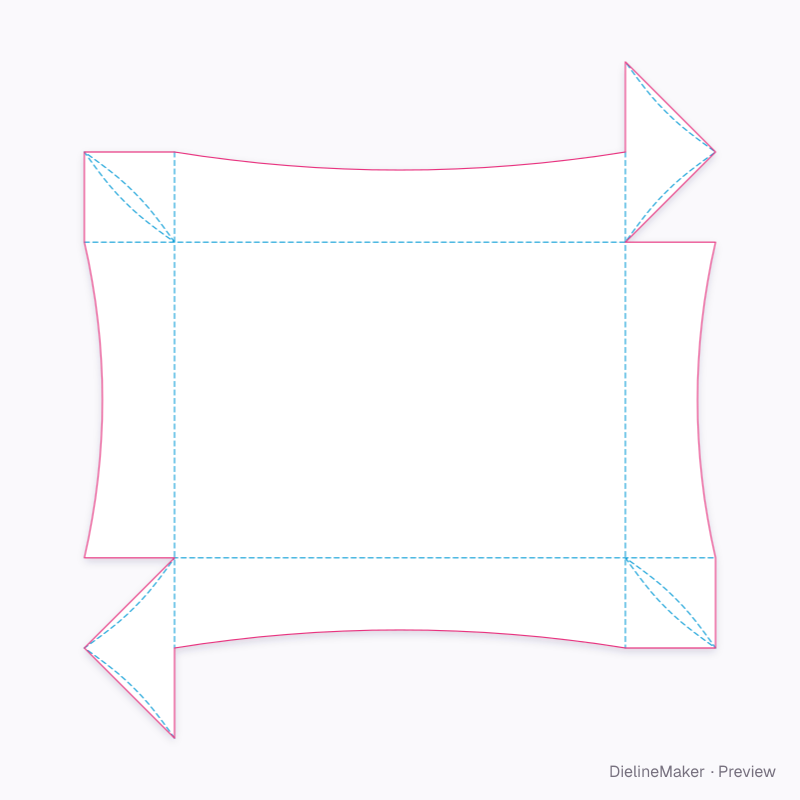

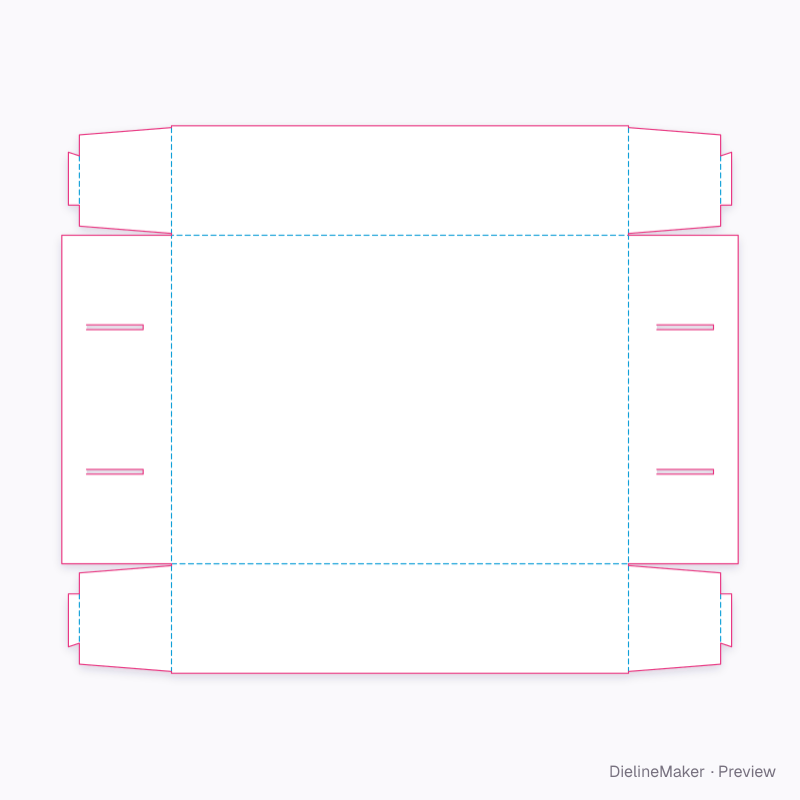

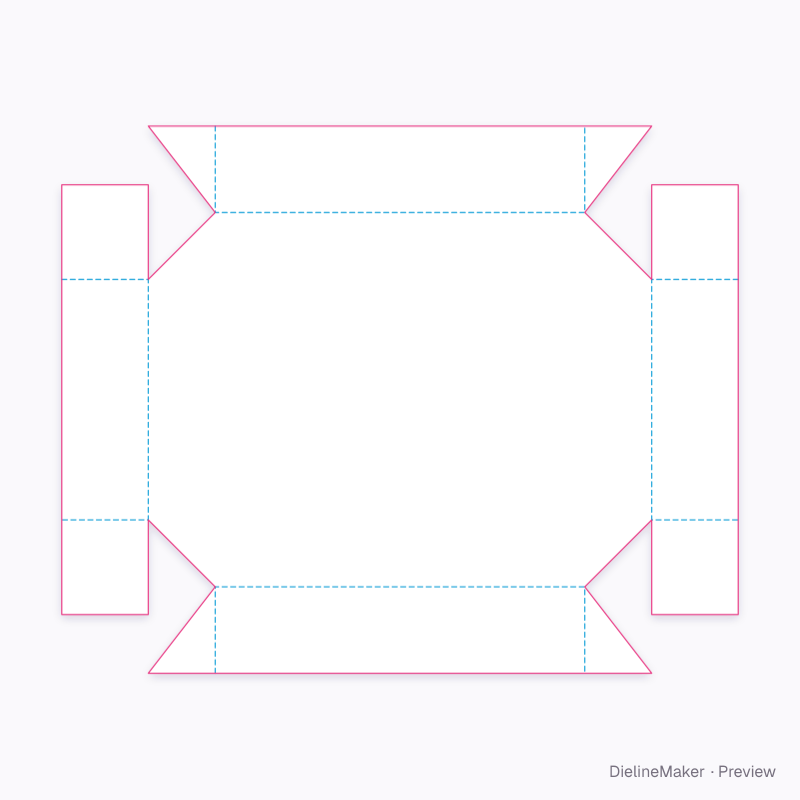

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this self-locking tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
