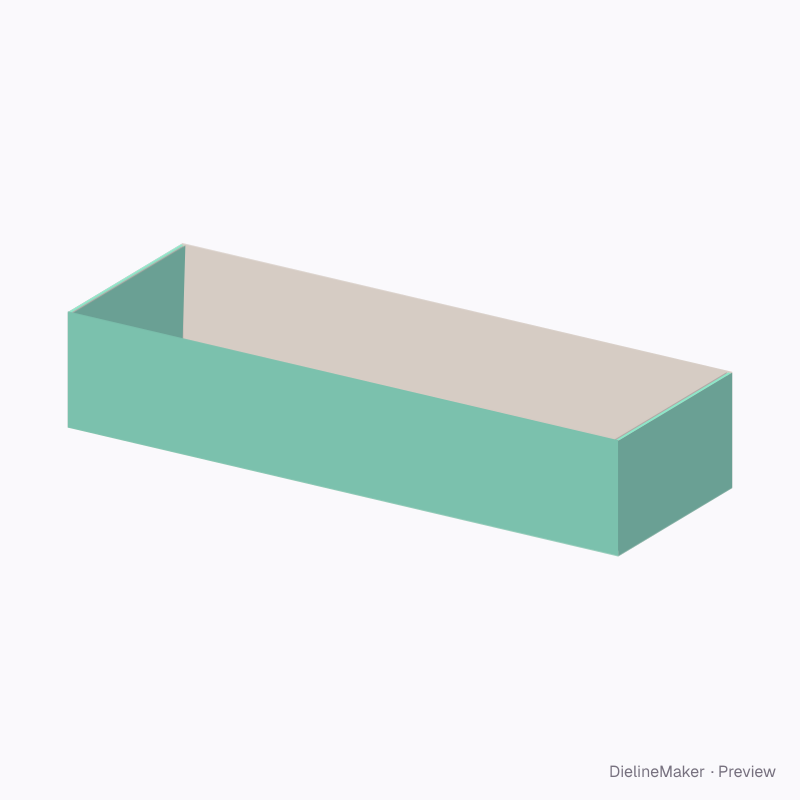

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROLLED-END-TRAY-01Trays & lids
Macaron tray 180×60×35 dieline
An unglued tray: rolled end walls trap the corner ears and lock into the base with tongues. A ready-sized preset of the self-locking tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 60 × 35 mm
Outside183 × 61 × 35.5 mm
Flat blank324.5 × 131 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLLED-END-TRAY-01
- Inside size
- Length 180 · Width 60 · Height 35 mm
- Size range
- Length 50–800 · Width 40–600 · Height 15–300 mm
- Manufacturing
- 182.5 × 60.5 × 35.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.035 m² · about 14 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteSBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROLLED-END-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 182.5 × 60.5 | – × W + T |
| Front | 182.5 × 35.3 | – × H + T/2 |
| Back | 182.5 × 35.3 | – × H + T/2 |
| Front ear ×2 | 29.3 × 33.5 | – |
| Back ear ×2 | 29.3 × 33.5 | – |
| Left end | 35 × 60.5 | H × W + T |
| Left end roll | 1 × 59.5 | – × W − T |
| Left end (inside) | 35 × 59.5 | H × W − T |
| Right end | 35 × 60.5 | H × W + T |
| Right end roll | 1 × 59.5 | – × W − T |
| Right end (inside) | 35 × 59.5 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Lock tonguescount
- Thumb notchon / off
- Food contacton / off
- Vent holes per long wallcount
- Vent diametermm
- End hand holeson / off
