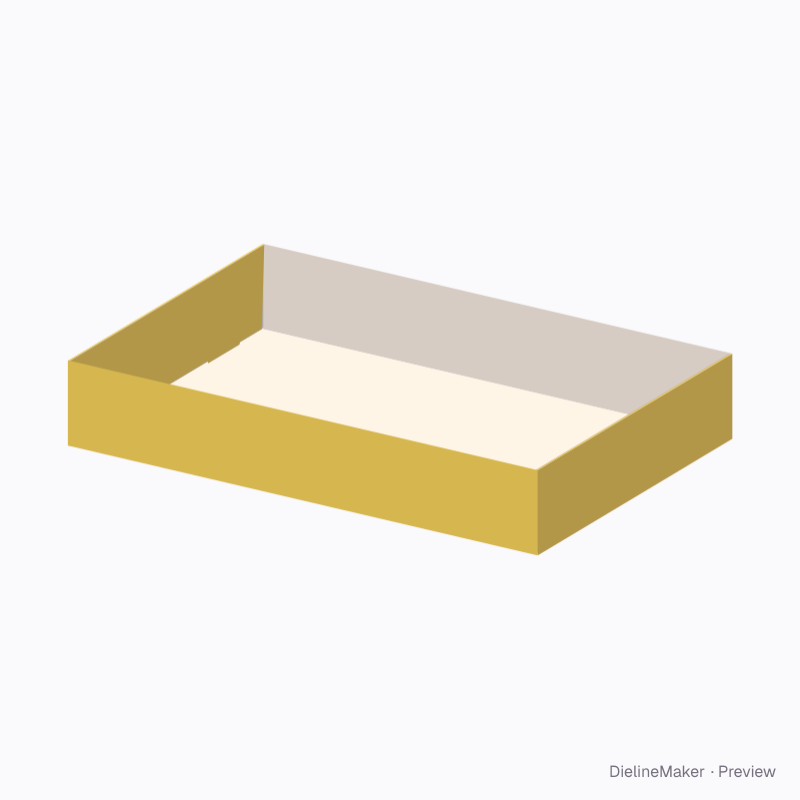

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROLLED-END-TRAY-01Trays & lids
Bakery tray 300×200×50 dieline
Glue-free kraft tray for pastries and sandwiches. A ready-sized preset of the self-locking tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 50 mm
Outside302.8 × 200.9 × 50.5 mm
Flat blank504.1 × 300.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLLED-END-TRAY-01
- Inside size
- Length 300 · Width 200 · Height 50 mm
- Size range
- Length 50–800 · Width 40–600 · Height 15–300 mm
- Manufacturing
- 302.3 × 200.5 × 50.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.139 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteSBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROLLED-END-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 302.3 × 200.5 | – × W + T |
| Front | 302.3 × 50.2 | – × H + T/2 |
| Back | 302.3 × 50.2 | – × H + T/2 |
| Front ear ×2 | 50 × 48.5 | H × – |
| Back ear ×2 | 50 × 48.5 | H × – |
| Left end | 50 × 200.5 | H × W + T |
| Left end roll | 0.9 × 199.5 | – × W − T |
| Left end (inside) | 50 × 199.5 | H × W − T |
| Right end | 50 × 200.5 | H × W + T |
| Right end roll | 0.9 × 199.5 | – × W − T |
| Right end (inside) | 50 × 199.5 | H × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Lock tonguescount
- Thumb notchon / off
- Food contacton / off
- Vent holes per long wallcount
- Vent diametermm
- End hand holeson / off
The self-locking tray family
