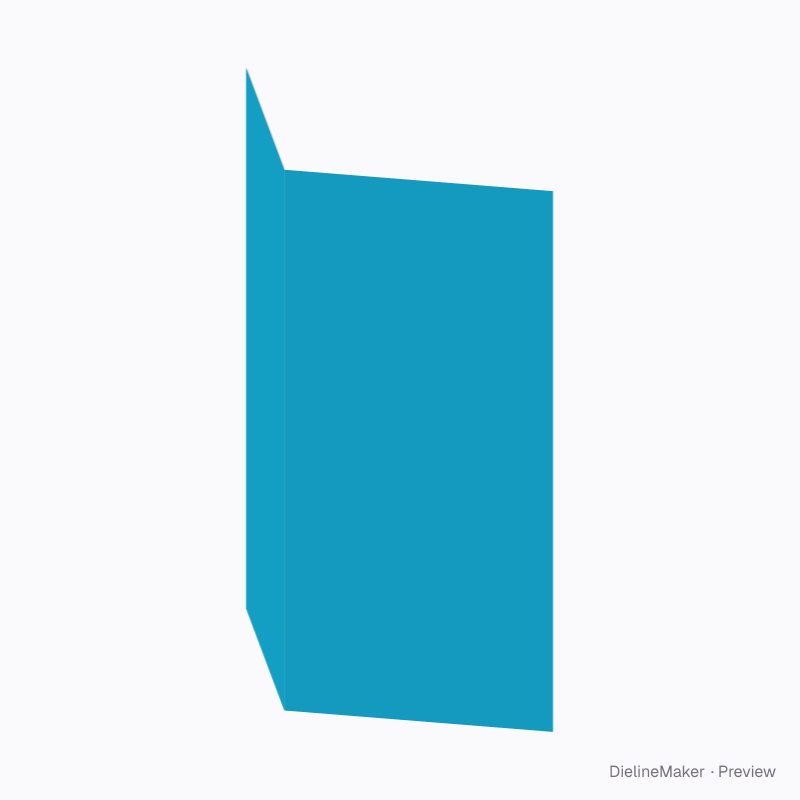

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
DL tri-fold leaflet dieline
An A4 sheet roll-folded to DL, 99 × 210 mm. A ready-sized preset of the tri-fold leaflet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside99 × 210 mm
Outside99 × 210 mm
Flat blank295 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Folded width 99 · Height 210 mm
- Size range
- Folded width 50–300 · Height 50–450 mm
- Manufacturing
- 99 × 210 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.062 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cover | 99 × 210 | W × H |
| Back | 99 × 210 | W × H |
| Inside flap | 97 × 210 | W − inset × H |
