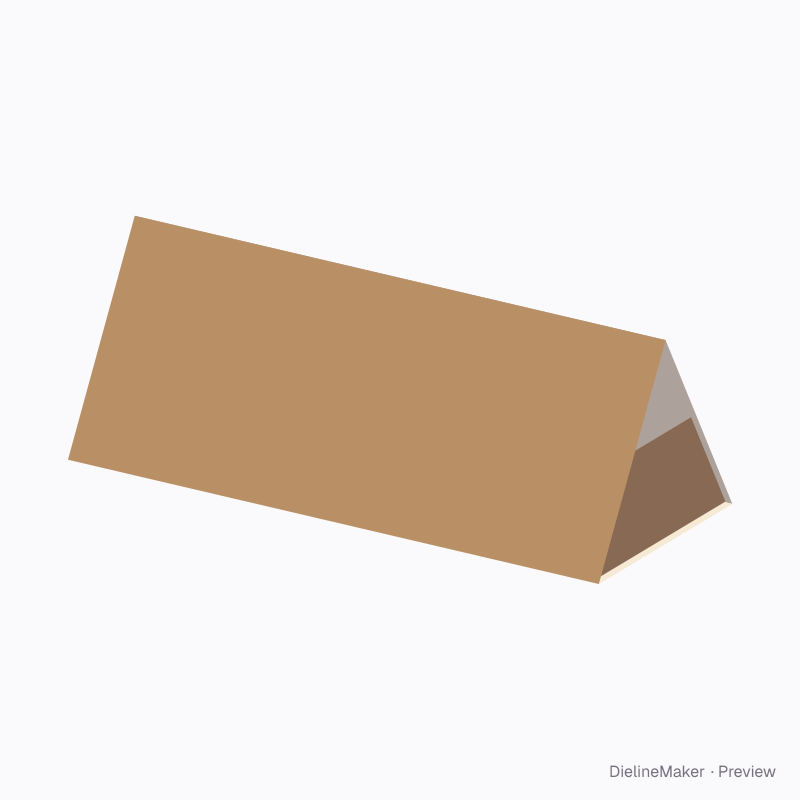

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TRIANGULAR-DRAWER-01Trays & lids
Triangular drawer box dieline
A triangular-prism sleeve with a sliding tray of the same section: sloping tray walls, glued trapezoid ends, a finger hole and guide slots in the sleeve sides. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 80 × 70 mm
Outside200 × 81 × 71 mm
Flat blank200 × 255.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TRIANGULAR-DRAWER-01
- Inside size
- Length 200 · Base width 80 · Height 70 mm
- Size range
- Length 60–500 · Base width 30–250 · Height 20–250 mm
- Manufacturing
- 200 × 80.5 × 70.3 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Triangular sleeve, Sliding tray
- Board area
- 0.088 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

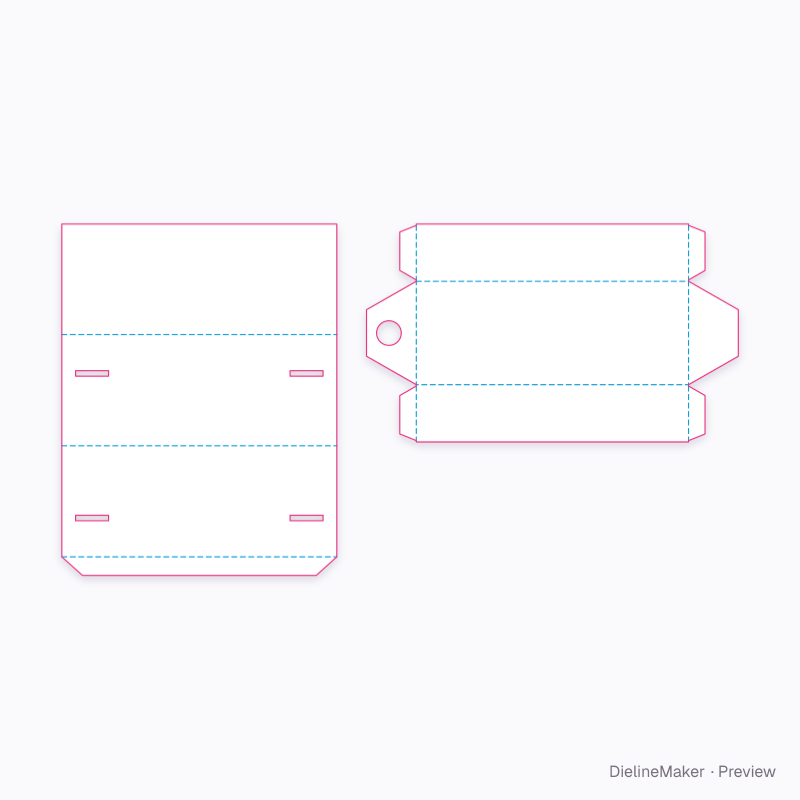

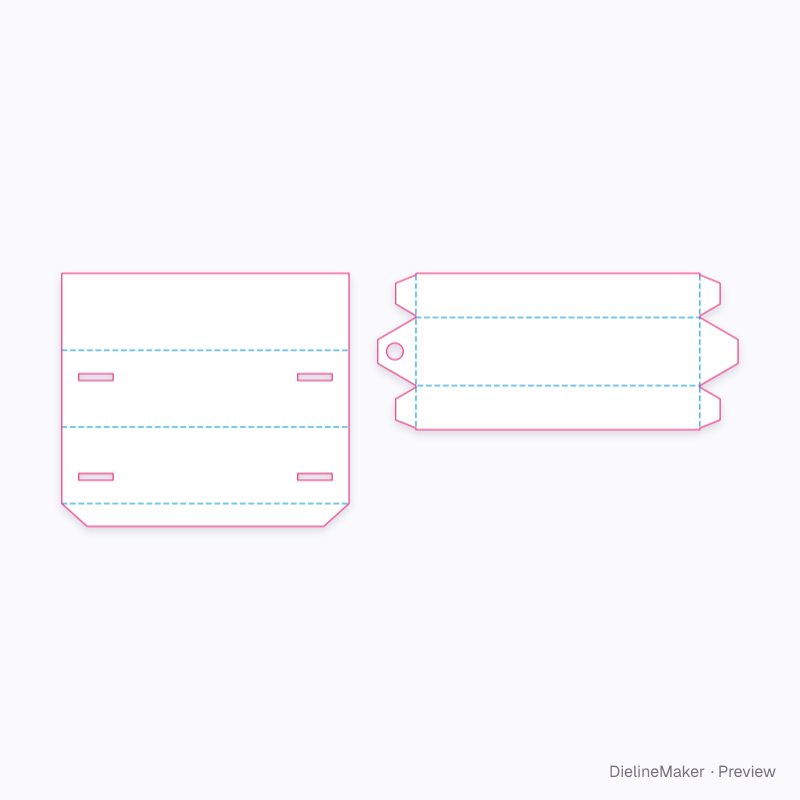

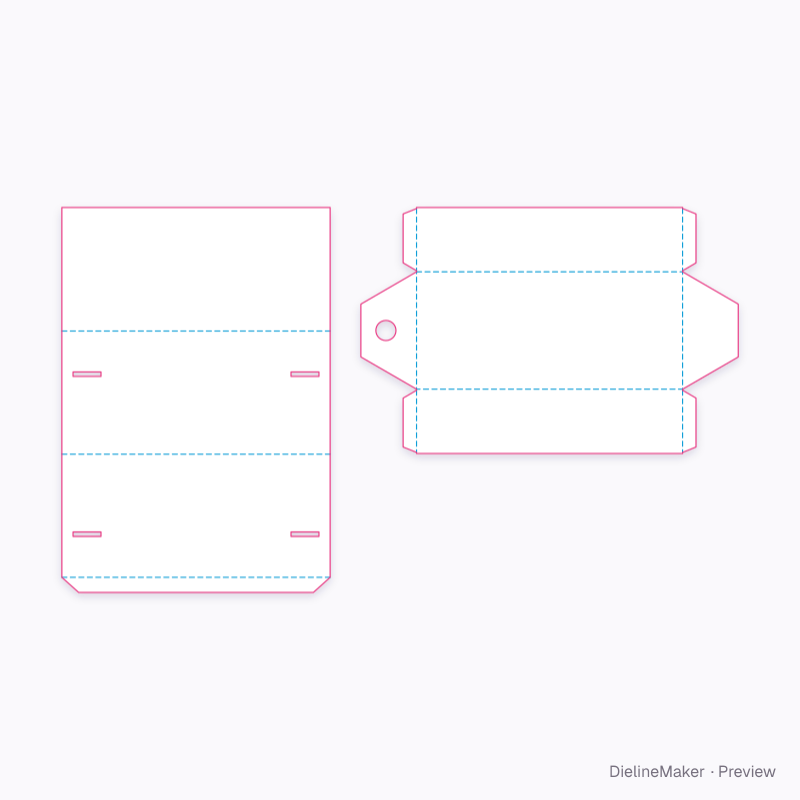

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TRIANGULAR-DRAWER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Sleeve baseTriangular sleeve | 200 × 80.5 | L × W + T |
| Sleeve side ×2Triangular sleeve | 200 × 81 | L × – |
| Glue lapTriangular sleeve | 200 × 13.5 | L × – |
| Tray baseSliding tray | 198 × 75.3 | – |
| Tray wall ×2Sliding tray | 198 × 41.7 | – |
| Tray front endSliding tray | 36.2 × 75.3 | – |
| Tray back endSliding tray | 36.2 × 75.3 | – |
| Corner glue ear ×4Sliding tray | 12 × 41.7 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Tray wall share%
- Finger holeon / off
- Sleeve guide slotson / off
