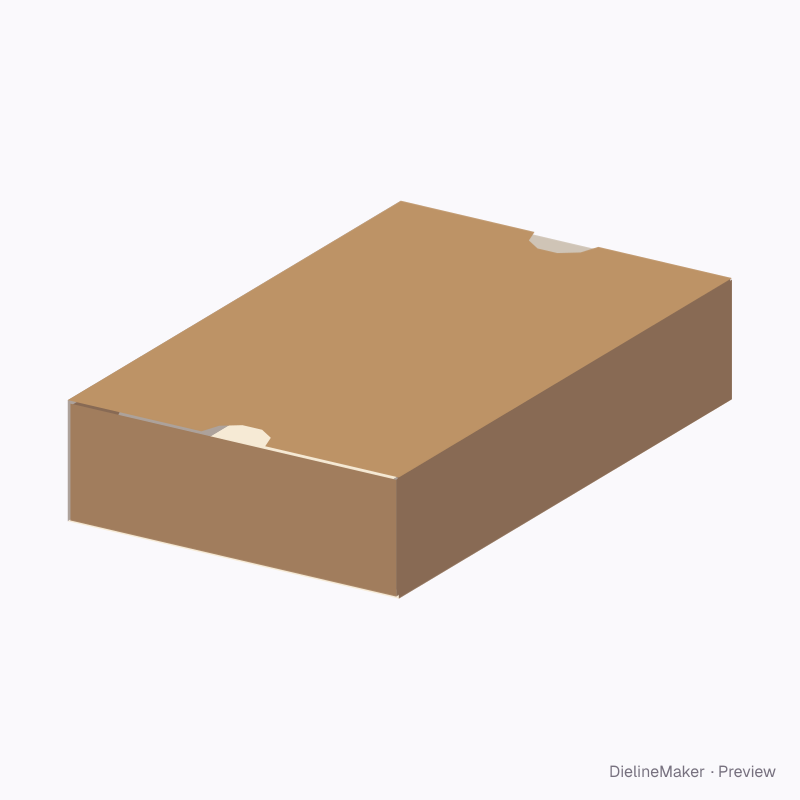

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DOUBLE-DRAWER-01Trays & lids
Double drawer box dieline
One sleeve with two independent drawer trays: sliding out of opposite ends, or stacked one above the other. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 200 × 40 mm
Outside125 × 201 × 42.3 mm
Flat blank344 × 200.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DOUBLE-DRAWER-01
- Inside size
- Tray width 120 · Sleeve length 200 · Tray height 40 mm
- Size range
- Tray width 40–400 · Sleeve length 60–600 · Tray height 10–150 mm
- Manufacturing
- 122.5 × 200.5 × 40.3 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Sleeve, Front tray, Rear tray
- Board area
- 0.141 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350GD2 350E-flute WSBS 18 pt
- Good for

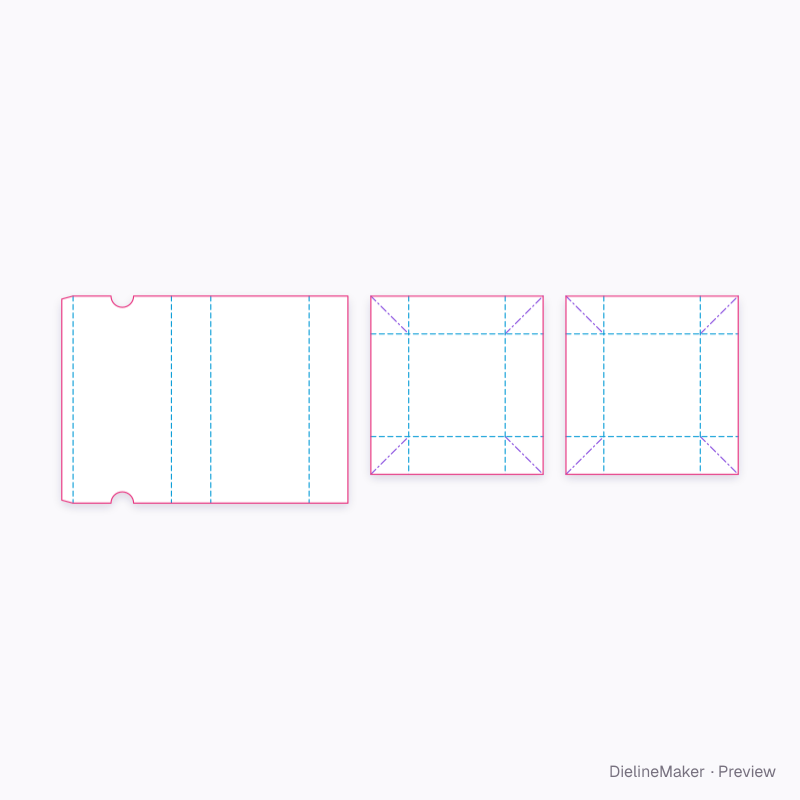

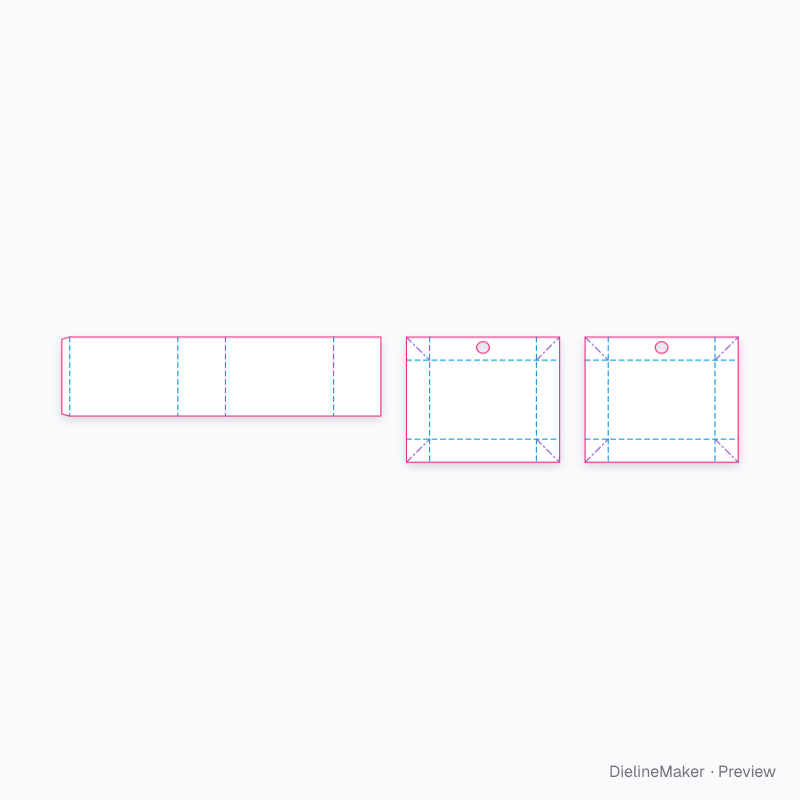

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DOUBLE-DRAWER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomSleeve | 124.5 × 200.5 | L + 7T + 2c × W + T |
| Left sideSleeve | 41.8 × 200.5 | H + 2.5T + c × W + T |
| TopSleeve | 124.5 × 200.5 | L + 7T + 2c × W + T |
| Right sideSleeve | 41.3 × 200.5 | H + 1.5T + c × W + T |
| Glue flapSleeve | 12 × 200.5 | – × W + T |
| Pose rigFront tray | 100 × 59.6 | – |
| BaseFront tray | 100 × 59.5 | – |
| FrontFront tray | 122.5 × 40.3 | – × H + T/2 |
| BackFront tray | 122.5 × 40.3 | – × H + T/2 |
| Left endFront tray | 40.3 × 99.3 | H + T/2 × – |
| Right endFront tray | 40.3 × 99.3 | H + T/2 × – |
| Corner web ×4Front tray | 40.3 × 40.3 | – × H + T/2 |
| Corner web ×4Front tray | 56.9 × 28.5 | – |
| Pose rigRear tray | 100 × 59.6 | – |
| BaseRear tray | 100 × 59.5 | – |
| FrontRear tray | 122.5 × 40.3 | – × H + T/2 |
5 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Drawers2 options
- Centre gapmm
- Pull4 options
Ready-sized double drawer box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this double drawer box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
