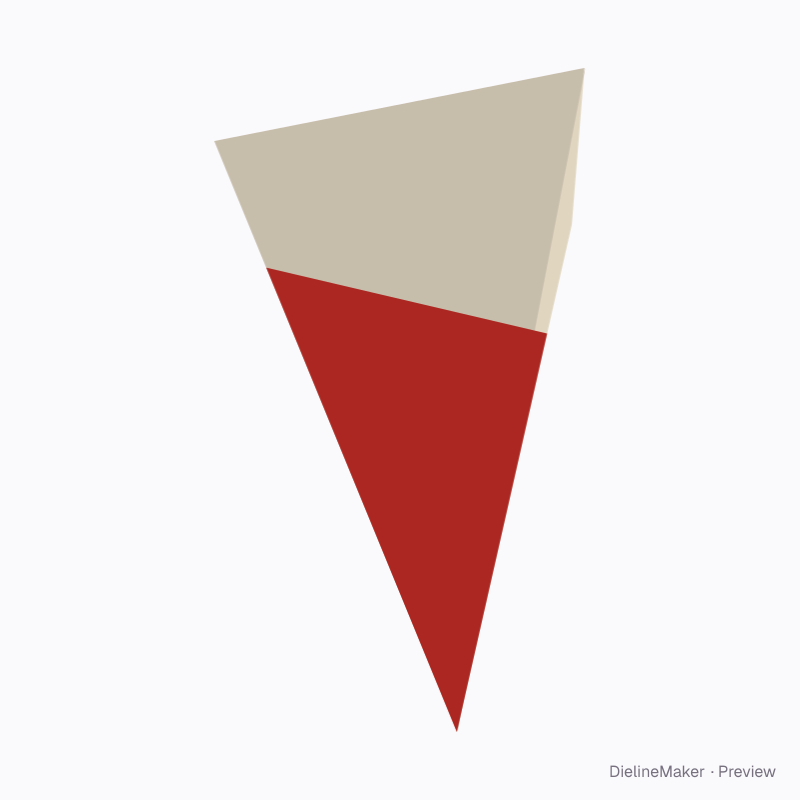

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TRIANGULAR-FRIES-CONE-01Food
Large triangular fries cone dieline
A pointed serving cone of three flat triangular faces meeting at the bottom point, with an open triangular mouth and a lower front for easy access. One blank with a glued back seam. A ready-sized preset of the pointed triangular fries cone — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 120 × 210 mm
Outside140 × 120 × 210 mm
Flat blank224.9 × 346.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TRIANGULAR-FRIES-CONE-01
- Inside size
- Mouth width 140 · Mouth depth 120 · Height 210 mm
- Size range
- Mouth width 50–250 · Mouth depth 40–250 · Height 60–350 mm
- Manufacturing
- 140 × 120 × 210 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.041 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEKraft 350SBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Front dropmm
- Seam tabmm
