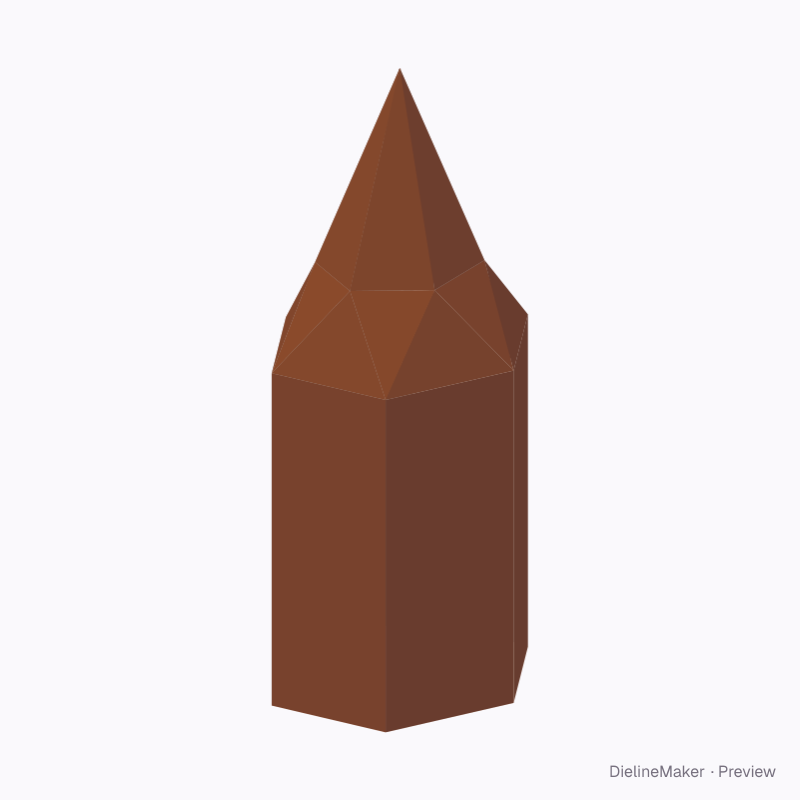

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TWISTED-ROOF-CARTON-01Shapes

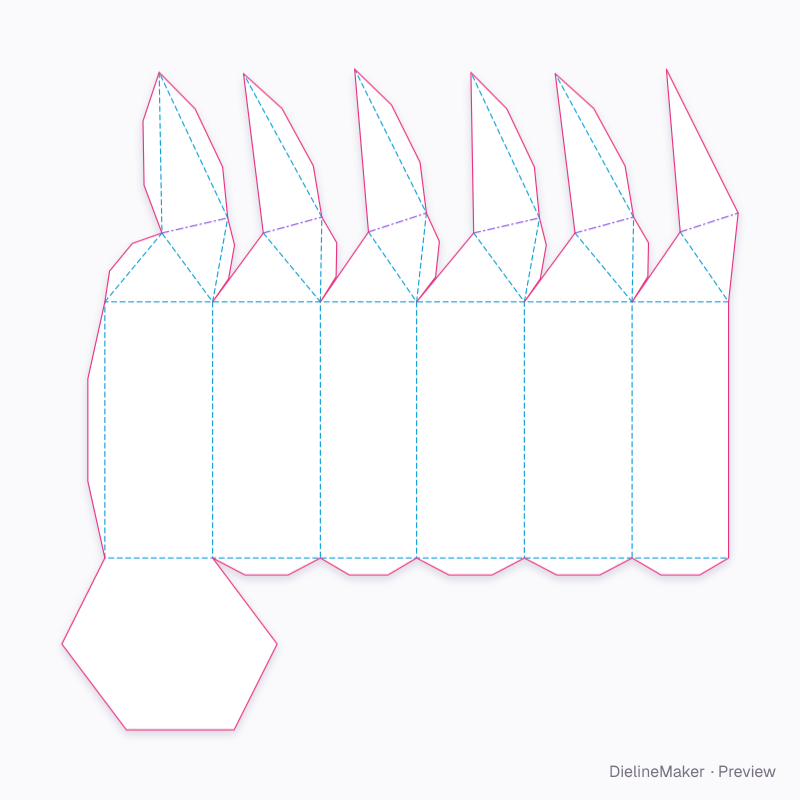

Hexagonal twisted spire box dieline
A three to eight-wall tube topped by a tall twisted roof: a ring of diagonal triangular facets turns and narrows the tube, then a spire of facets rises to a tip. Glued floor or four-wall tuck bottom. A ready-sized preset of the twisted bell-tower carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 90 × 120 mm
Outside90.5 × 90.5 × 120 mm
Flat blank317.6 × 310.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TWISTED-ROOF-CARTON-01
- Inside size
- Width 90 · Depth 90 · Wall height 120 mm
- Size range
- Width 30–300 · Depth 30–300 · Wall height 30–400 mm
- Manufacturing
- 90.5 × 90.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.062 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TWISTED-ROOF-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall ×4 | 50.6 × 120.5 | – × H + T |
| Twist facet ×4 | 50.6 × 32.4 | – |
| Twist facet ×2 | 29.1 × 40.2 | – |
| Spire facet ×2 | 31.7 × 73.9 | – |
| Twist facet ×2 | 26 × 42 | – |
| Spire facet ×4 | 28.6 × 74.8 | – |
| Wall ×2 | 45.3 × 120.5 | – × H + T |
| Twist facet ×2 | 45.3 × 32.9 | – |
| Twist facet ×2 | 27.4 × 40 | – |
| Floor | 50.6 × 80.9 | – |
| Hand-glue seam | 8 × 120.5 | – × H + T |
| Hand-glue seam ×2 | 7.6 × 42 | – |
| Hand-glue seam ×2 | 5.4 × 40.2 | – |
| Hand-glue seam ×4 | 8 × 75.6 | – |
| Hand-glue seam ×3 | 50.6 × 8 | – |
| Hand-glue seam ×2 | 7.2 × 40 | – |
2 more panels are listed in the editor’s structure step.
