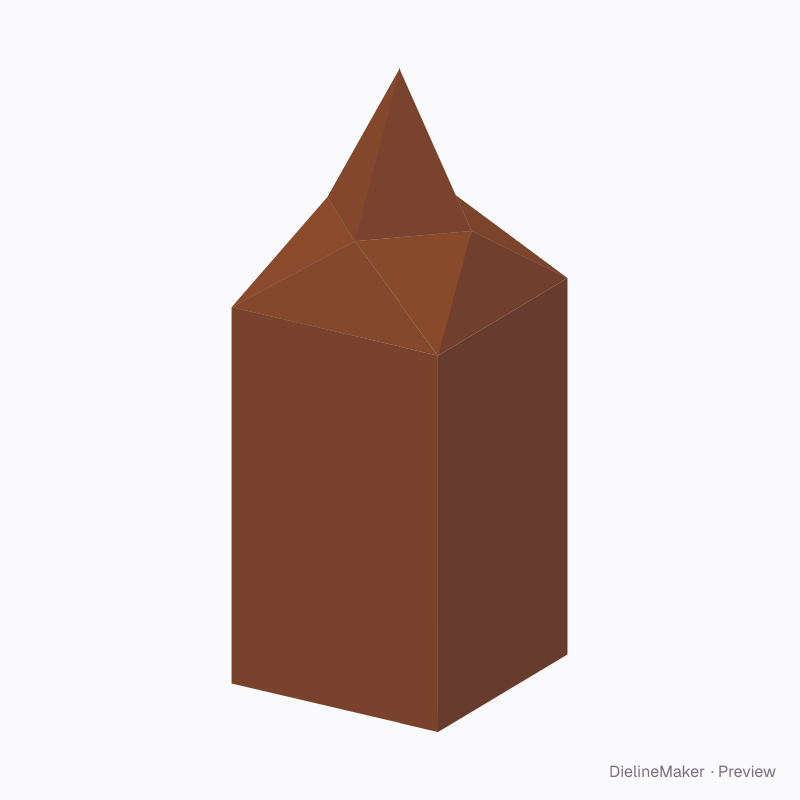

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TWISTED-ROOF-CARTON-01Shapes
Bell-tower box with tuck bottom dieline
A three to eight-wall tube topped by a tall twisted roof: a ring of diagonal triangular facets turns and narrows the tube, then a spire of facets rises to a tip. Glued floor or four-wall tuck bottom. A ready-sized preset of the twisted bell-tower carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 60 × 100 mm
Outside60.5 × 60.5 × 100 mm
Flat blank250 × 242.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TWISTED-ROOF-CARTON-01
- Inside size
- Width 60 · Depth 60 · Wall height 100 mm
- Size range
- Width 30–300 · Depth 30–300 · Wall height 30–400 mm
- Manufacturing
- 60.5 × 60.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.042 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TWISTED-ROOF-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall ×4 | 60.5 × 100.5 | – × H + T |
| Twist facet ×4 | 60.5 × 22.9 | – |
| Twist facet ×4 | 37.9 × 27.5 | – |
| Spire facet ×4 | 29.9 × 41.8 | – |
| Hand-glue seam | 8 × 100.5 | – × H + T |
| Hand-glue seam | 37.9 × 6.8 | – |
| Hand-glue seam ×3 | 6.8 × 37.9 | – |
| Hand-glue seam ×3 | 44.4 × 8 | – |
| Hand-glue seam | 8 × 44.4 | – |
| Bottom panel | 60.5 × 60.5 | – |
| Bottom tuck | 60.5 × 15 | – |
| Dust flap | 60.5 × 27.2 | – |
| Dust flap | 60.5 × 27.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Wallscount
- Twist ring heightmm
- Spire heightmm
- Twist ring size%
- Bottom3 options
- Glue tab depthmm
