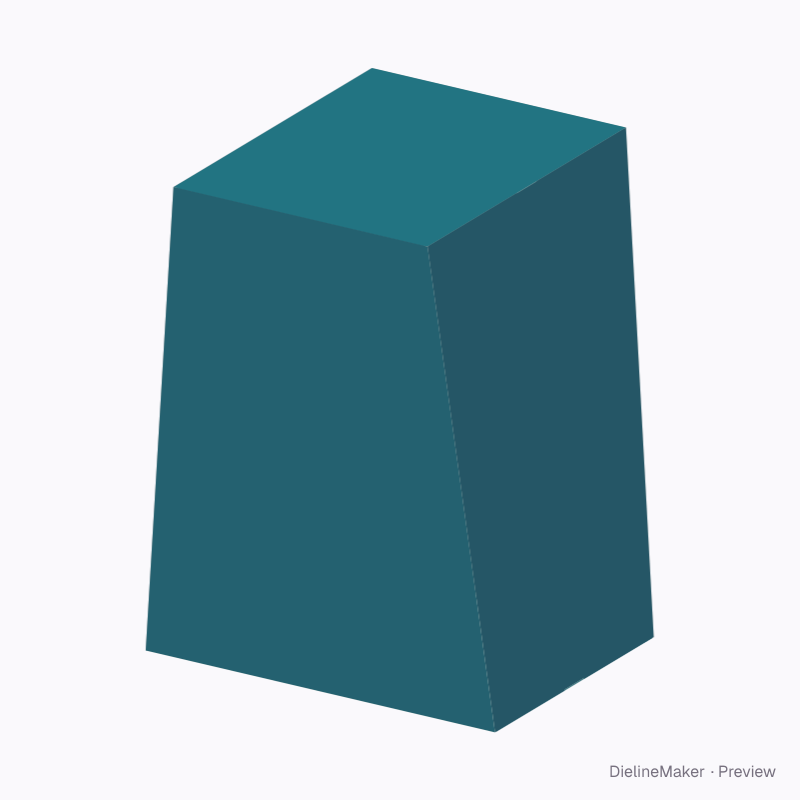

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Two-ended tapered tuck carton dieline
A carton with independently sized top and bottom footprints and selectable tuck, glued or open ends. Reclosable end panels hinge from one wall; their tongues follow the actual opposite wall slope and dust flaps sit inside the lids. A ready-sized preset of the two-axis tapered closure carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 80 × 140 mm
Outside110 × 80 × 140 mm
Flat blank372.3 × 389.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Base length 110 · Base width 80 · Height 140 mm
- Size range
- Base length 30–800 · Base width 30–800 · Height 30–800 mm
- Manufacturing
- 110 × 80 × 140 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.085 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

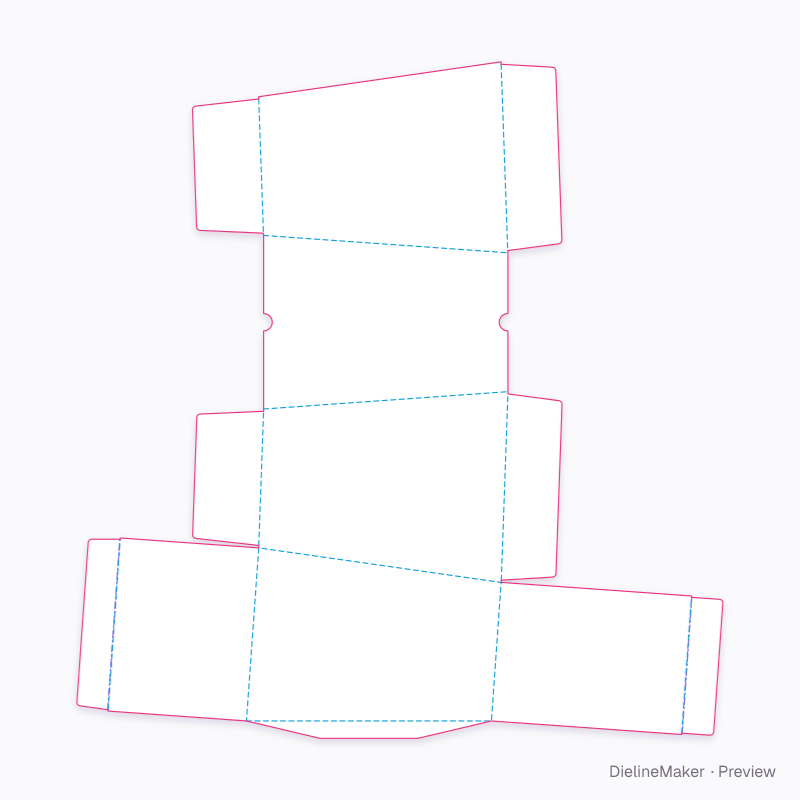

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left tapered face | 146.8 × 99.7 | – |
| Bottom tapered face | 110 × 80 | L × W |
| Back tapered face | 141.2 × 109.4 | – |
| Front tapered face | 141.2 × 109.4 | – |
| Right tapered face | 141.2 × 99.7 | – |
| Top tapered face | 80 × 100 | – |
| Hand-glue seam 1/3 | 141.2 × 10 | – |
| Bottom tapered wall tuck | 18 × 78.5 | – |
| Top tapered wall tuck | 18 × 98.5 | – |
| bottom dust flap 1 | 31.4 × 107.4 | – |
| bottom dust flap 2 | 31.4 × 107.4 | – |
| top dust flap 1 | 38.4 × 77.4 | – |
| top dust flap 2 | 38.4 × 77.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Top lengthmm
- Top widthmm
- Top end3 options
- Bottom end3 options
- Tuck tongue depthmm
- Dust flap reachmm
- Thumb notch diametermm
- Body glue tab depthmm

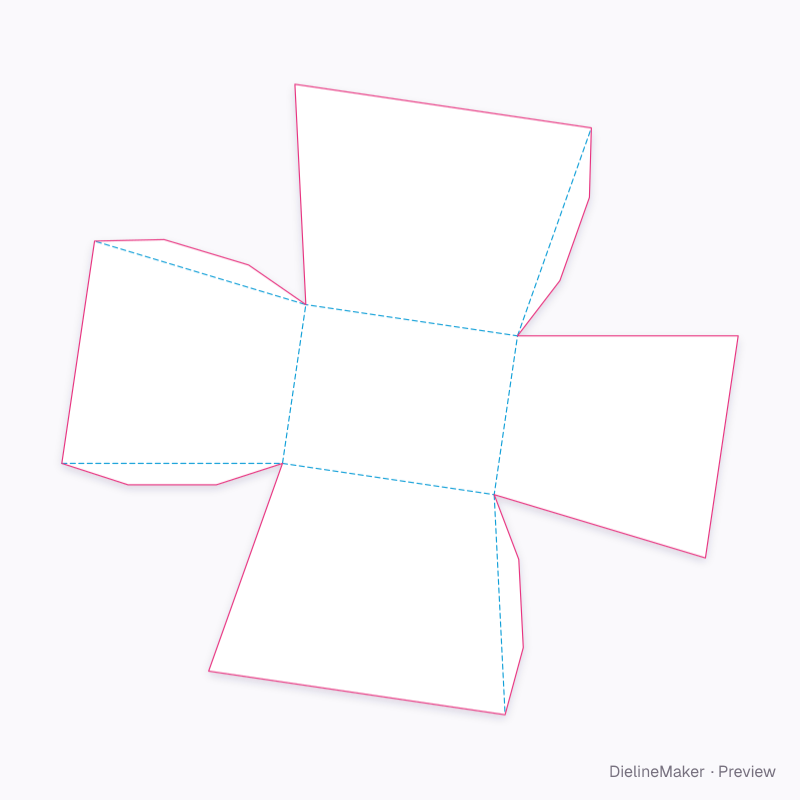

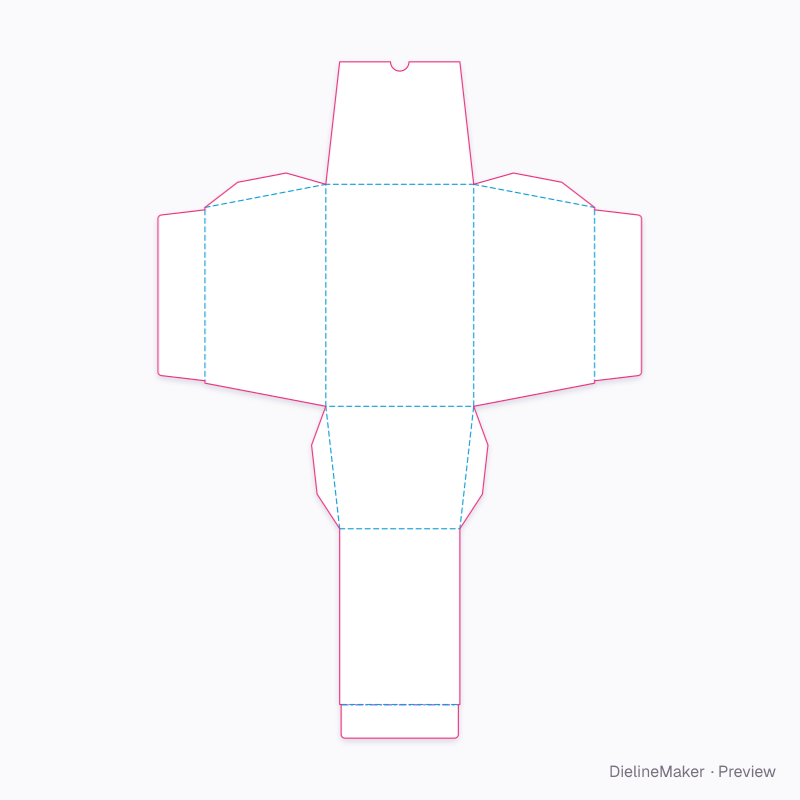

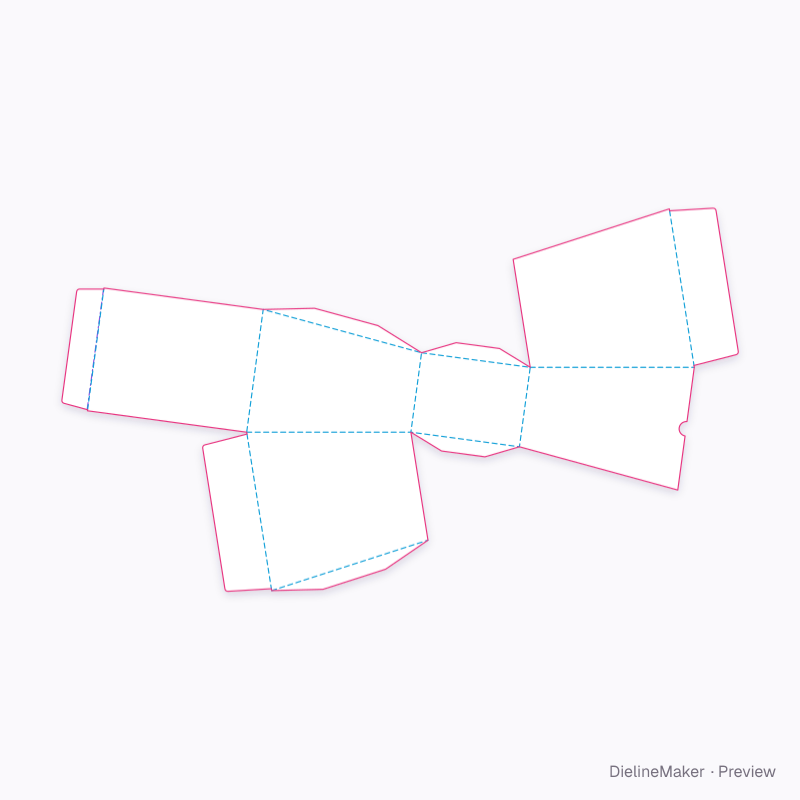

The two-axis tapered closure carton family
The same structure with sizes, boards and options set for a use.
