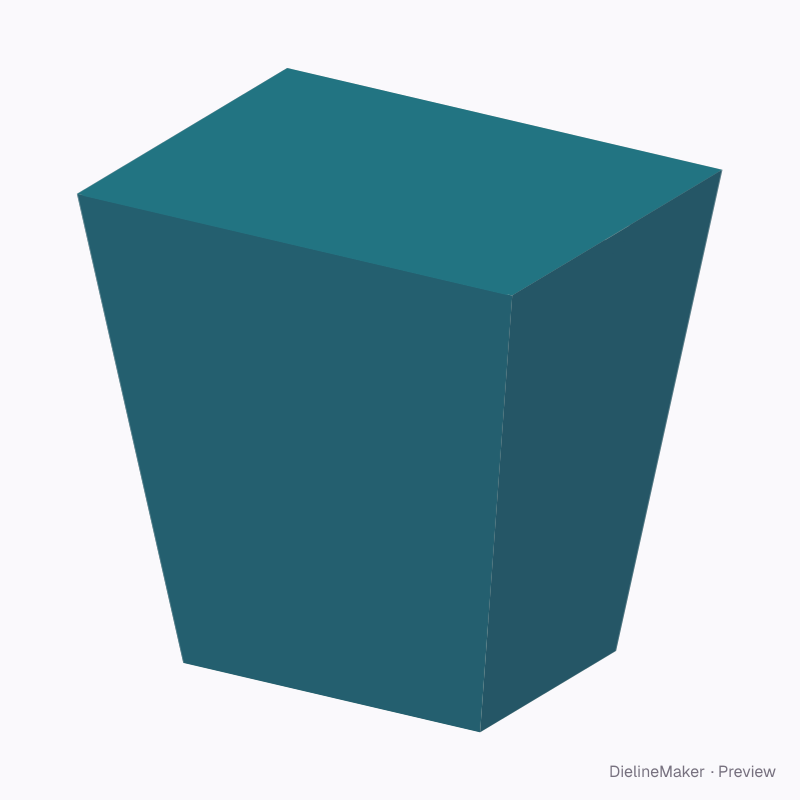

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Flared tuck gift carton dieline
A carton with independently sized top and bottom footprints and selectable tuck, glued or open ends. Reclosable end panels hinge from one wall; their tongues follow the actual opposite wall slope and dust flaps sit inside the lids. A ready-sized preset of the two-axis tapered closure carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside75 × 55 × 110 mm
Outside75 × 55 × 110 mm
Flat blank463 × 262.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Base length 75 · Base width 55 · Height 110 mm
- Size range
- Base length 30–800 · Base width 30–800 · Height 30–800 mm
- Manufacturing
- 75 × 55 × 110 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.060 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left tapered face | 119.7 × 84.2 | – |
| Bottom tapered face | 75 × 55 | L × W |
| Back tapered face | 112.4 × 108.7 | – |
| Front tapered face | 112.4 × 108.7 | – |
| Right tapered face | 111.4 × 55 | – × W |
| Top tapered face | 110 × 85 | – |
| Hand-glue seam 1/4 | 112.4 × 10 | – |
| Hand-glue seam 2/3 | 75 × 10 | L × – |
| Hand-glue seam 2/4 | 75 × 10 | L × – |
| Hand-glue seam 3/5 | 112.4 × 10 | – |
| Top tapered wall tuck | 18 × 83.4 | – |
| top dust flap 1 | 31.4 × 107.4 | – |
| top dust flap 2 | 31.4 × 107.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Top lengthmm
- Top widthmm
- Top end3 options
- Bottom end3 options
- Tuck tongue depthmm
- Dust flap reachmm
- Thumb notch diametermm
- Body glue tab depthmm
The two-axis tapered closure carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this flared tuck gift carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
