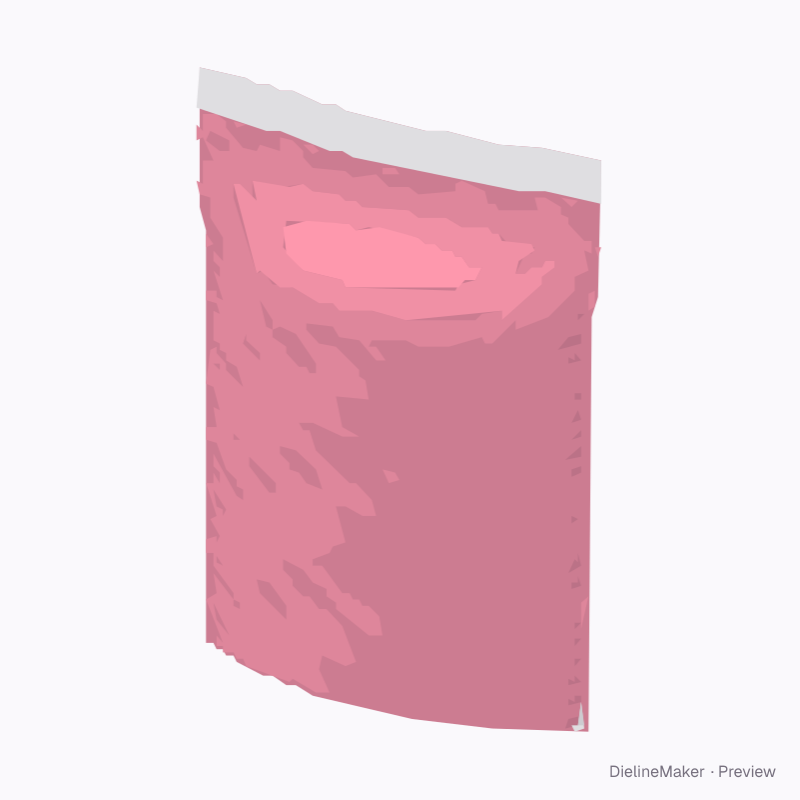

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Wicketed bakery bag — large dieline
An open-top film bag with an extended rear lip, two real wicket holes, a tear-off perforation and optional bottom gusset. The continuous front–bottom–back web includes the extended lip. Film caliper, sealing conditions and carrying strength must match the converter’s specification. A ready-sized preset of the wicketed bakery bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 550 mm
Outside450 × 550 mm
Flat blank450 × 1260 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Face width 450 · Bag body height 550 mm
- Size range
- Face width 140–650 · Bag body height 150–800 mm
- Manufacturing
- 450 × 550 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.567 m²
- Default board
- White LDPE carrier film · 0.06 mm caliper
- Board options
- White LDPEClear LDPEHDPE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.06 mm for White LDPE carrier film). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 450 × 550 | L × H |
| Bottom gusset | 450 × 120 | L × – |
| Back | 450 × 550 | L × H |
| Wicket lip | 450 × 40 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Bottom gusset half-web (G)mm
- Seal widthmm
- Preview fill%
- Wicket lip heightmm
- Wicket hole centresmm
The wicketed bakery bag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wicketed bakery bag — large yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
