Dimensions and logistics

ISO packaging standards: dimensions and testing

Use ISO transport-package modules, pallet dimensions and physical test references alongside a structural dieline.

DielineMaker · Updated 26 October 2026

Illustration of packaging concepts. See the templates below for editable geometry.

ISO 3394 addresses modular dimensions for rigid rectangular transport packages, while ISO 6780 addresses flat-pallet dimensions and tolerances. ISO 18613 concerns wooden-pallet repair; it does not define carton dieline families.

These are orientation notes based on publisher abstracts, not a reproduction of the full standards. Native templates do not carry ISO certification.

Match the standard to the question

Read the title and scope before adding a standard number to a design brief. A material-handling requirement and a carton-construction requirement answer different questions.

ISO lists ISO 3394:2012 as current following confirmation in 2024, and ISO 6780:2003 as current following confirmation in 2026. Use the full documents for dimensions, tolerances and exceptions.

Reference	What it means	Design use
ISO 3394:2012	Rigid rectangular transport-package dimensions based on 600 × 400, 600 × 500 and 550 × 366 mm plan modules.	Coordinate the outside package footprint with the intended unit-load system.
ISO 6780:2003	Principal dimensions and tolerances of flat pallets for intercontinental handling.	Select the real carrier and check the complete layer arrangement.
ISO 12048:1994	Compression and stacking tests on complete, filled transport packages using a compression tester.	Agree the test conditions and acceptance criteria for the packed product.
ISO 2248:1985	Vertical impact testing of complete, filled transport packages by dropping.	Specify the test orientation, drop conditions and assessment in the test plan.
ISO 18613:2014	Repair criteria for flat wooden pallets.	Use for pallet condition and repair discussions, not carton geometry.
ISO 17351:2013	Braille on packaging for medicinal products.	Specify and verify the accessibility feature separately.
FEFCO / ECMA	Structural design references from industry associations.	Use to communicate box or carton construction.

Keep evidence attached to the right object

For pallet fitting, compare the case’s external footprint with the actual pallet deck. A 600 × 400 mm module is a planning reference, not a promise that a carton with those internal dimensions will fit the same space. Include manufacturing tolerances and the receiver’s overhang rules.

ISO lists the compression standard ISO 12048:1994 and drop standard ISO 2248:1985 as current following confirmation in 2022. These describe physical test methods; the editor does not simulate those tests or certify performance.

For a shipment, separate the carton drawing, supplied pallet specification and test report. Passing a test on one package configuration does not approve every resized variant.

The linked pallet model is for visualization. It does not implement repair criteria or determine whether a real pallet is fit for service.

Related editable templates

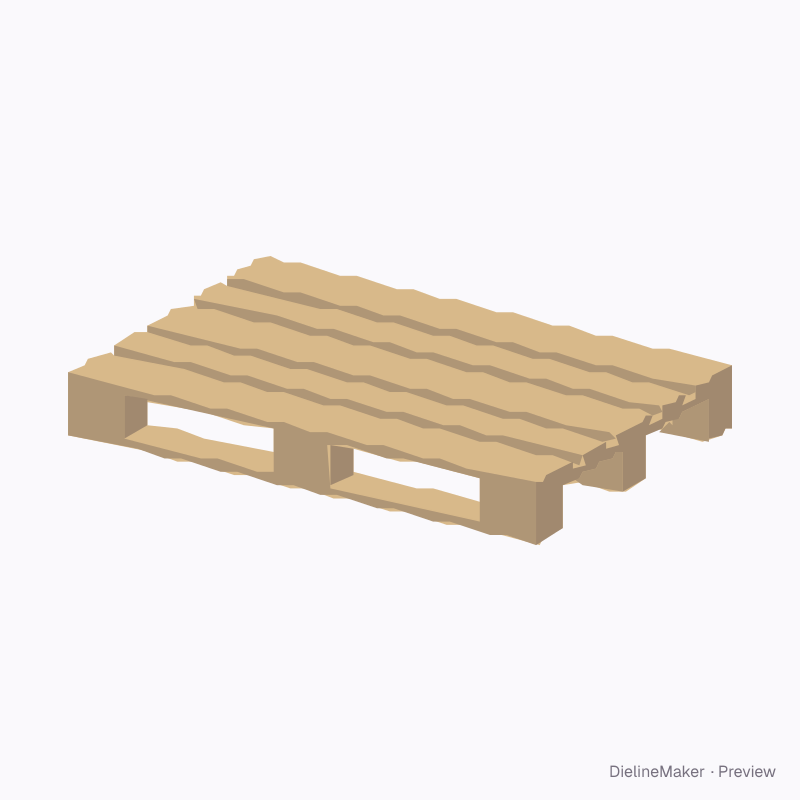

Euro footprint pallet mockup

decoration template

A supplied-object visualization for layout planning, not an EPAL manufacturing drawing or licensed pallet.

Template details Open in editor →

Regular slotted shipping box

dieline

Start with this exact RSC recipe; confirm board grade, closure and packed-product fit.

Template details Open in editor →

Common questions

Is ISO 18613 a box design library?

No. Its published scope is repair of flat wooden pallets using wood-based components.

Does a standard number on artwork prove conformity?

No. Conformity needs evidence relevant to the actual product and the specified requirements.
