Preview image

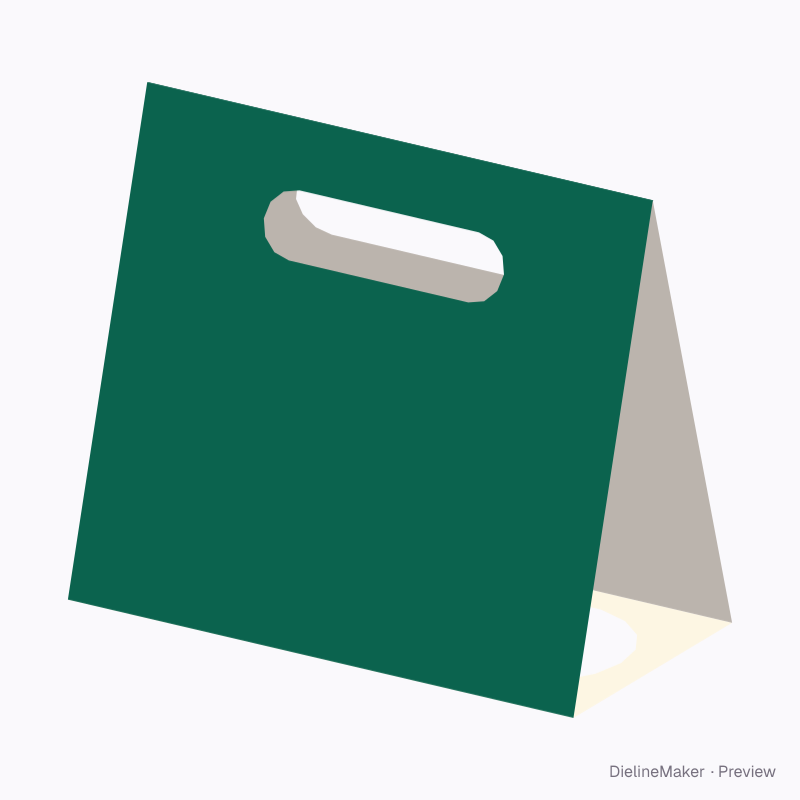

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-A-FRAME-CUP-CARRIER-01Carriers
Two-cup tent carrier dieline
Two apertures along a longer bridge. A ready-sized preset of the a-frame cup carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 100 × 170 mm
Outside200 × 100.9 × 170.5 mm
Flat blank200 × 473 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-A-FRAME-CUP-CARRIER-01
- Inside size
- Length 200 · Bridge depth 100 · Height 170 mm
- Size range
- Length 60–400 · Bridge depth 50–300 · Height 60–350 mm
- Manufacturing
- 200 × 100.5 × 170 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.094 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350FBB 400E-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-A-FRAME-CUP-CARRIER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Bridge | 200 × 100.5 | L × W + T |
| Front face | 200 × 177.3 | L × – |
| Back face | 200 × 177.3 | L × – |
| Apex glue strip | 200 × 18 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Cup aperturescount
- Aperture diametermm
- Hand slotson / off
- Slot widthmm
- U-cut retention flapson / off
The a-frame cup carrier family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this two-cup tent carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
