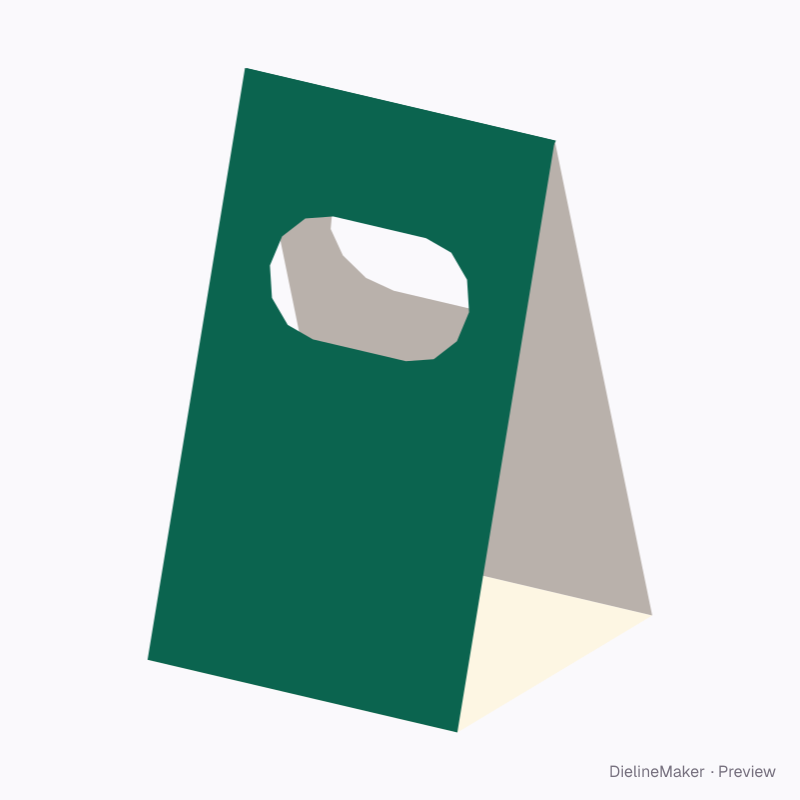

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-A-FRAME-CUP-CARRIER-01Carriers
Shot glass tent carrier dieline
Plain bridge with U-cut retention flaps. A ready-sized preset of the a-frame cup carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 70 × 110 mm
Outside70 × 70.9 × 110.5 mm
Flat blank70 × 319.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-A-FRAME-CUP-CARRIER-01
- Inside size
- Length 70 · Bridge depth 70 · Height 110 mm
- Size range
- Length 60–400 · Bridge depth 50–300 · Height 60–350 mm
- Manufacturing
- 70 × 70.5 × 110 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.022 m² · about 26 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350FBB 400E-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Cup aperturescount
- Aperture diametermm
- Hand slotson / off
- Slot widthmm
- U-cut retention flapson / off
