Preview image

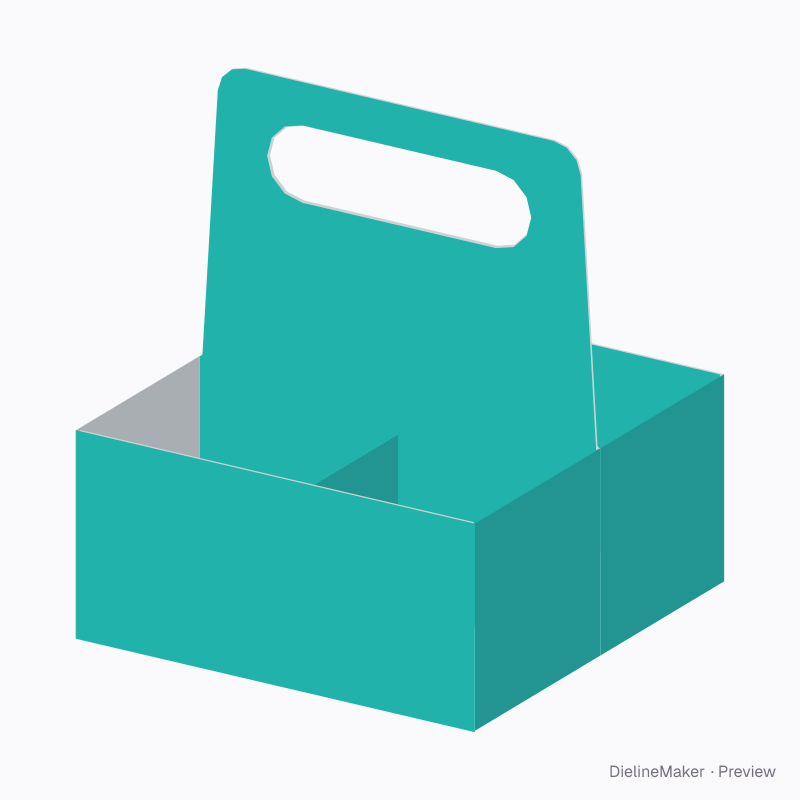

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
4-can carrier dieline
Basket carrier for four 330 or 440 ml cans. A ready-sized preset of the bottle carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside146 × 146 × 170 mm
Outside146.9 × 146.9 × 170 mm
Flat blank604.9 × 455.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 146 · Width 146 · Height 170 mm
- Size range
- Length 90–420 · Width 80–260 · Height 120–380 mm
- Manufacturing
- 146.5 × 146.5 × 170 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.133 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350FBB 400SBS 350F-fluteE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 146.5 × 146.5 | L + T × W + T |
| Front | 146.5 × 70 | L + T × wall |
| Back | 146.5 × 70 | L + T × wall |
| Right end (front) | 73.7 × 69.5 | W/2 + 3T/2 × wall − T |
| Left end (front) | 72.8 × 69.5 | W/2 − T/2 × wall − T |
| Left end (back) | 72.8 × 69.5 | W/2 − T/2 × wall − T |
| Right end (back) | 72.8 × 69.5 | W/2 − T/2 × wall − T |
| End glue flap ×3 | 20 × 69.5 | – |
| Back handle ply | 146.5 × 69.5 | L + T × H − T |
| Front handle ply | 145.5 × 69.5 | L − 0.5 × H − T |
| Front liner | 144.5 × 69 | – |
| Cell partition ×2 | 70.8 × 58.7 | – |
| Back liner | 144.5 × 69 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Bottlescount
- Bottle diametermm
- Wall heightmm
- Cell partitionson / off
- Hand holeon / off
- Hole widthmm
