Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
4-bottle carrier dieline
Four 330 ml bottles in two rows. A ready-sized preset of the bottle carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 142 × 230 mm
Outside140.9 × 142.9 × 230 mm
Flat blank582.9 × 571.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 140 · Width 142 · Height 230 mm
- Size range
- Length 90–420 · Width 80–260 · Height 120–380 mm
- Manufacturing
- 140.5 × 142.5 × 230 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.171 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350FBB 400SBS 350F-fluteE-flute KSBS 18 pt
- Good for

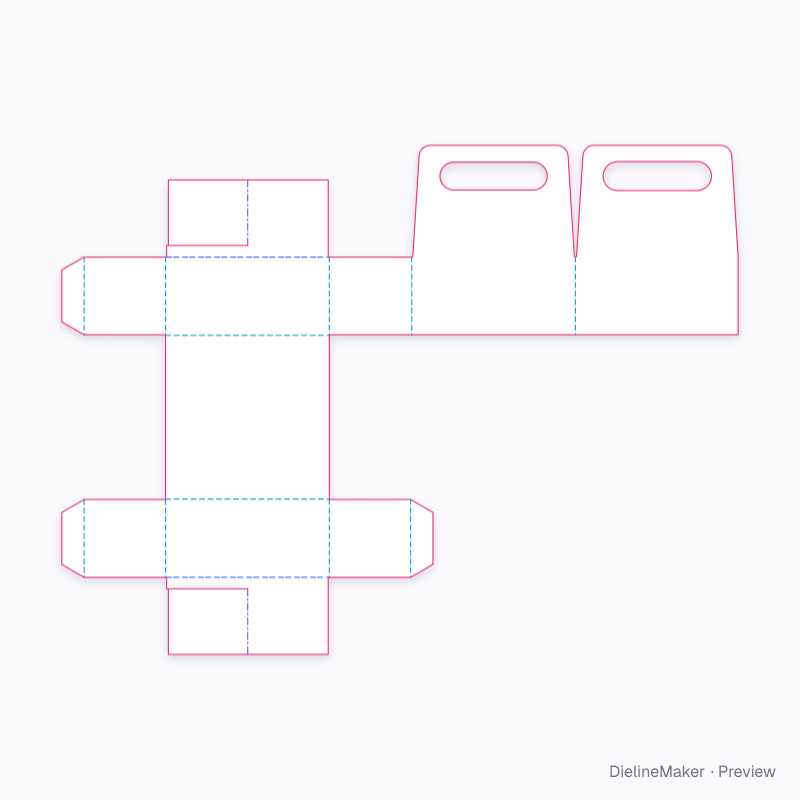

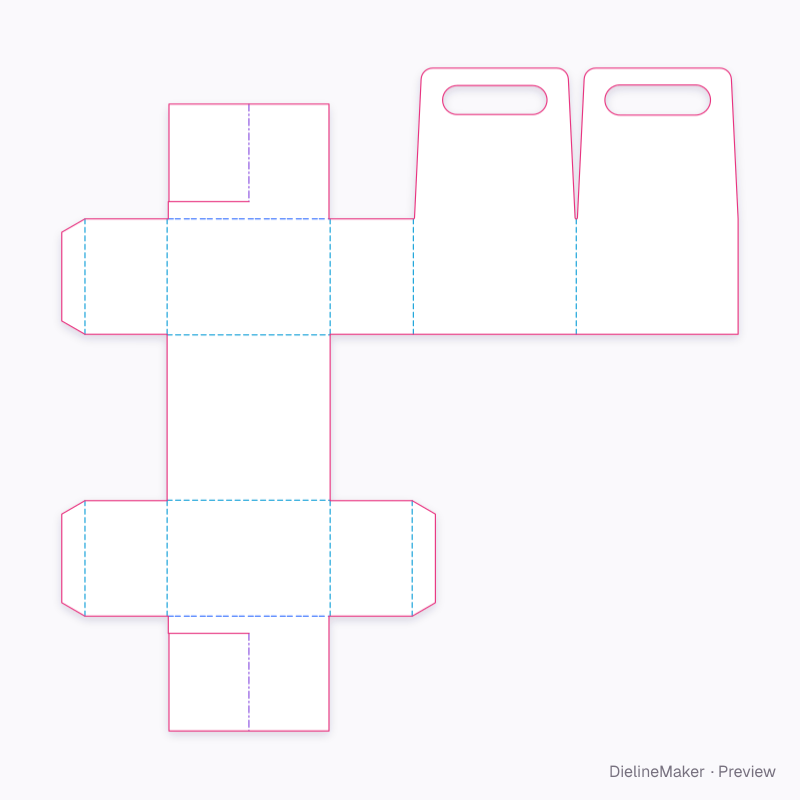

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 140.5 × 142.5 | L + T × W + T |
| Front | 140.5 × 100 | L + T × wall |
| Back | 140.5 × 100 | L + T × wall |
| Right end (front) | 71.7 × 99.5 | W/2 + 3T/2 × wall − T |
| Left end (front) | 70.8 × 99.5 | W/2 − T/2 × wall − T |
| Left end (back) | 70.8 × 99.5 | W/2 − T/2 × wall − T |
| Right end (back) | 70.8 × 99.5 | W/2 − T/2 × wall − T |
| End glue flap ×3 | 20 × 99.5 | – |
| Back handle ply | 140.5 × 99.5 | L + T × H − T |
| Front handle ply | 139.5 × 99.5 | L − 0.5 × H − T |
| Front liner | 138.5 × 99 | – |
| Cell partition ×2 | 68.8 × 84.2 | – |
| Back liner | 138.5 × 99 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Bottlescount
- Bottle diametermm
- Wall heightmm
- Cell partitionson / off
- Hand holeon / off
- Hole widthmm

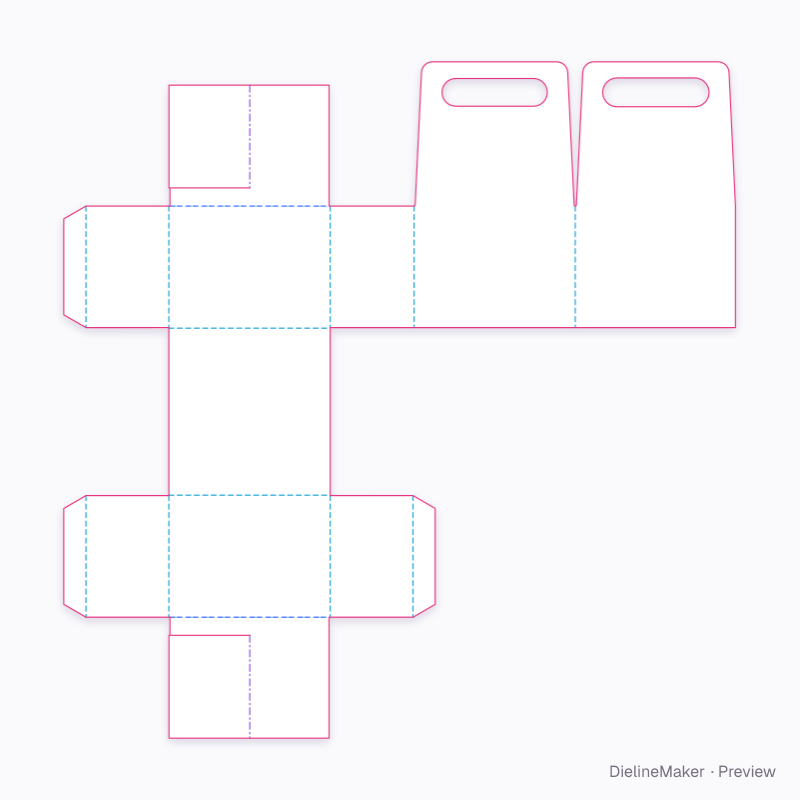

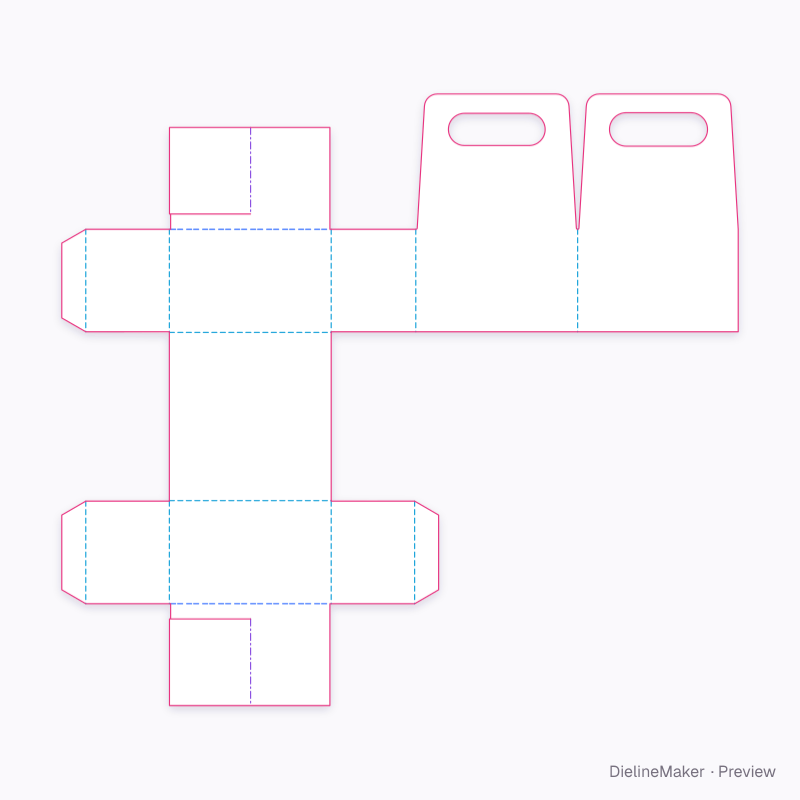

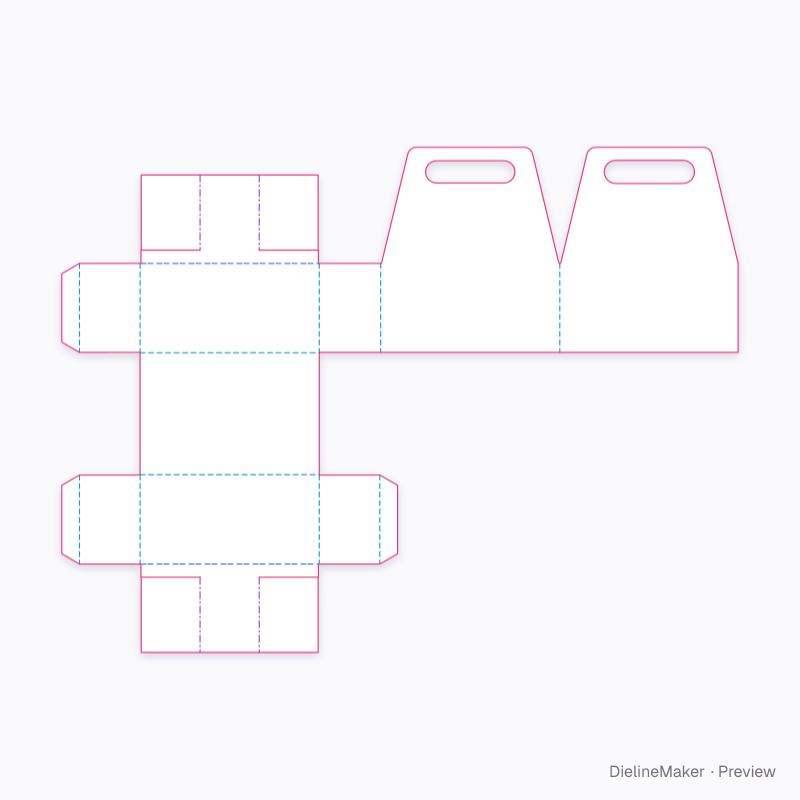

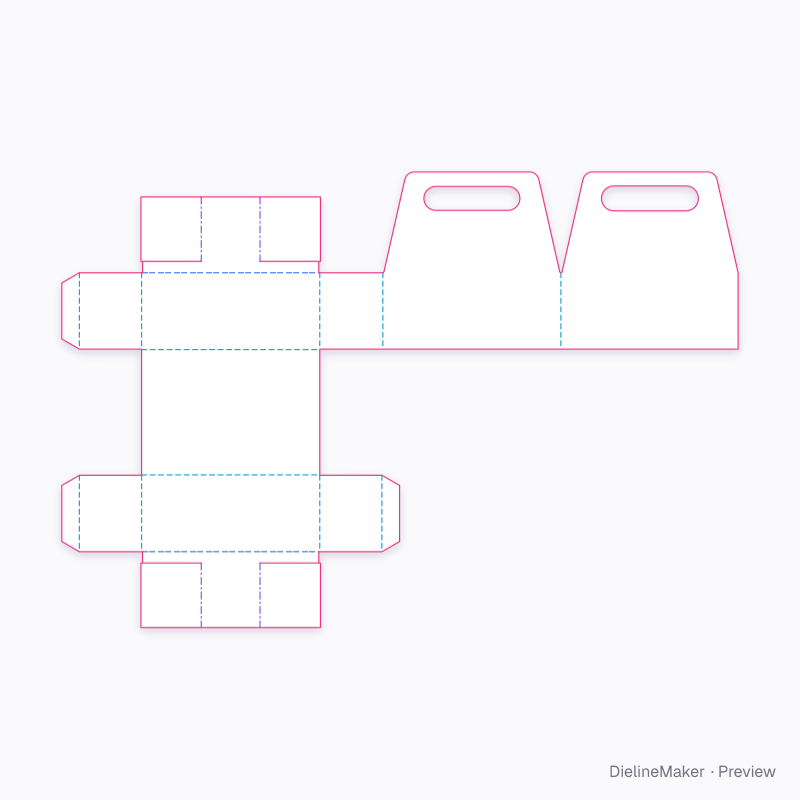

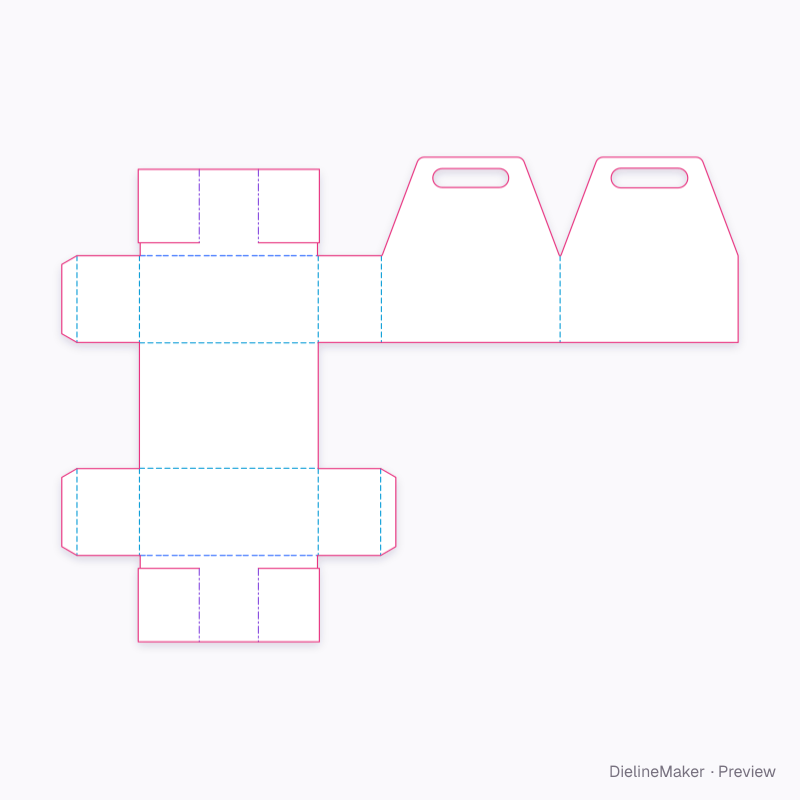

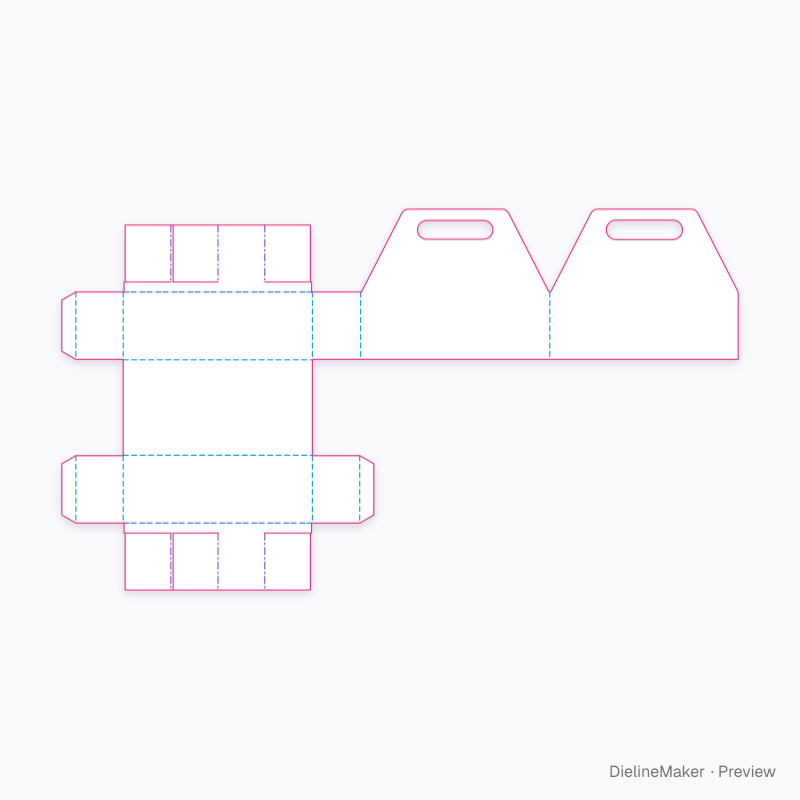

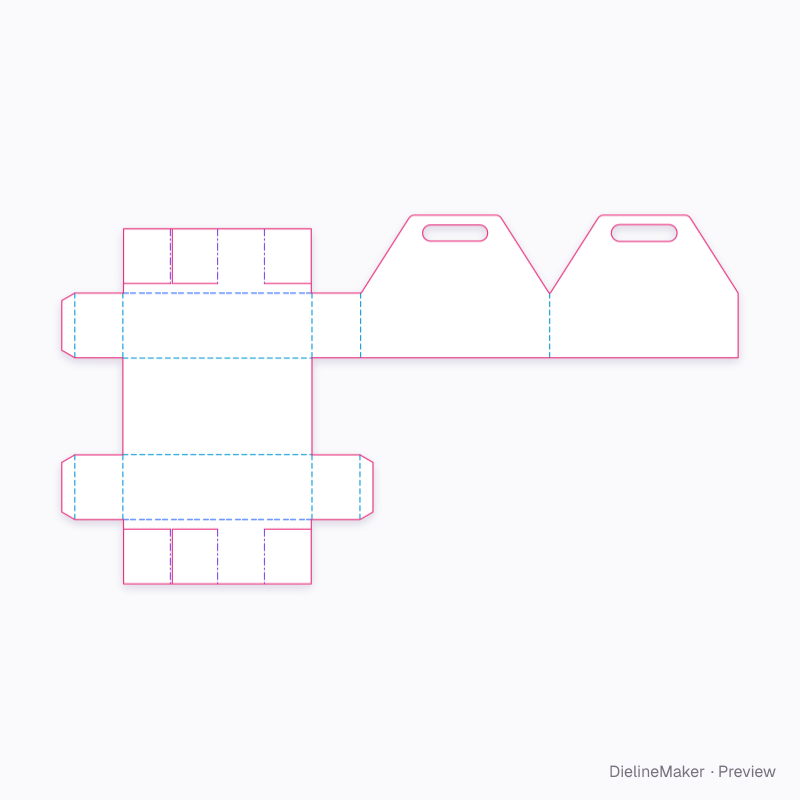

The bottle carrier family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

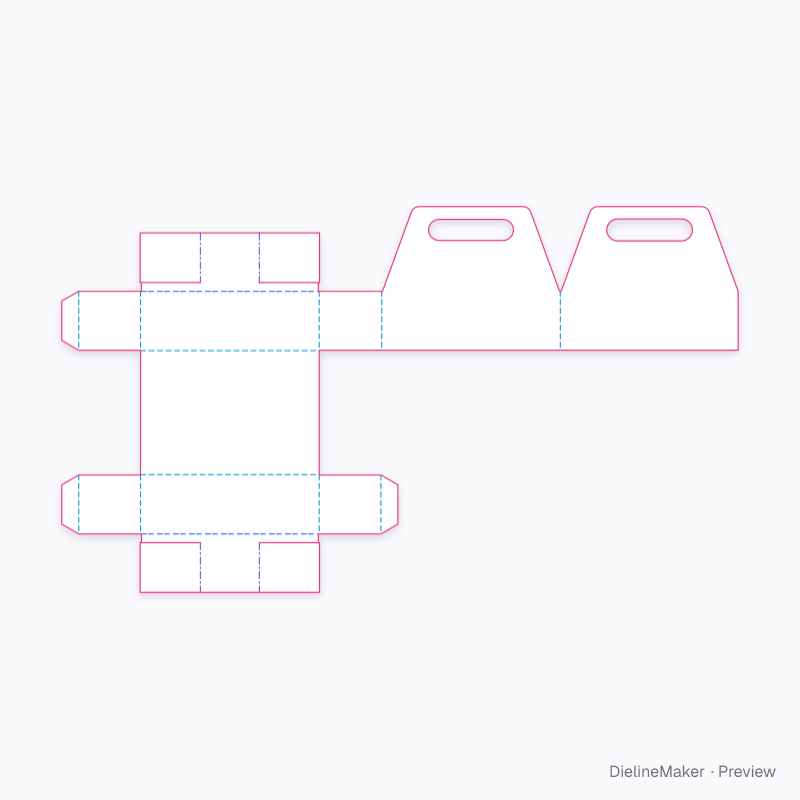

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 4-bottle carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
