The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F50.01.00.00Display
Bottle tray, all sides tucked in dieline
Open display tray with a neck keyhole and wedge ends, e.g. for a 70 cl spirits bottle. A ready-sized preset of the bottle display tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 100 × 50 mm
Outside301 × 101 × 51 mm
Flat blank600.3 × 313.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F50.01.00.00
- Inside size
- Length (A) 300 · Width (B) 100 · Depth 50 mm
- Size range
- Length (A) 100–450 · Width (B) 30–200 · Depth 25–150 mm
- Manufacturing
- 300.5 × 100.5 × 50.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.131 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350E-flute WF-fluteSBS 18 pt
- Good for

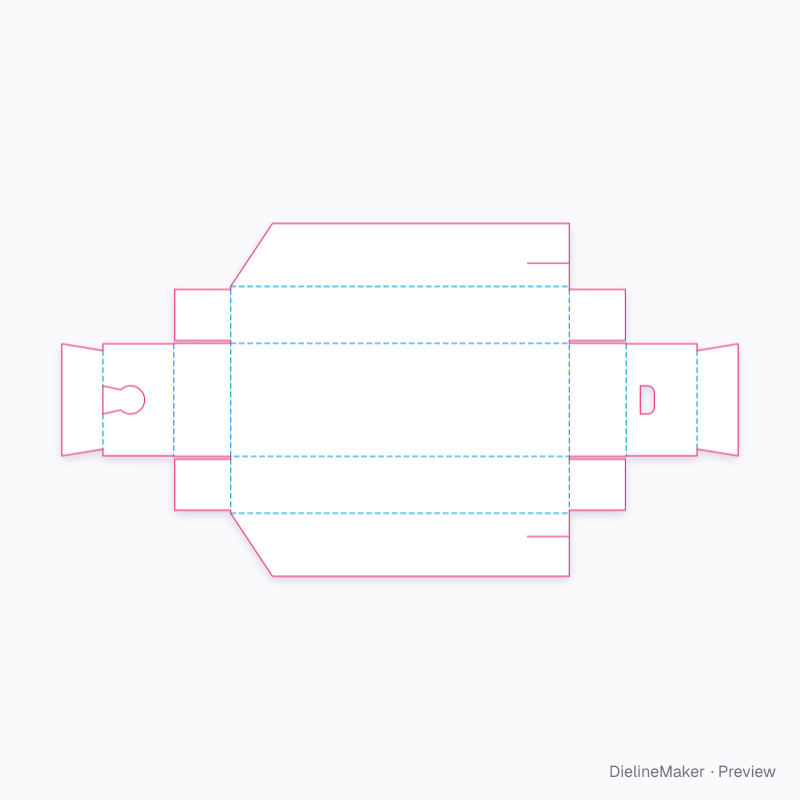

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F50.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 300.5 × 100.5 | L + T × W + T |
| Side wall ×2 | 300.5 × 50.5 | L + T × H + T |
| Lining ×2 | 300.5 × 56 | L + T × – |
| Lining tongue ×2 | 11.4 × 24.9 | – |
| Lining tongue ×2 | 30.9 × 42.3 | – |
| Corner ear ×4 | 49.8 × 45.3 | – |
| Neck end wall | 50.5 × 100.5 | H + T × W + T |
| Foot end wall | 50.5 × 100.5 | H + T × W + T |
| Neck panel | 62.9 × 99.5 | – × W − T |
| Tuck | 36.5 × 31.3 | – |
| Foot panel | 62.9 × 99.5 | – × W − T |
| Tuck | 36.5 × 87.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction3 options
- End wedge dropmm
- Lining widthmm
The bottle display tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset

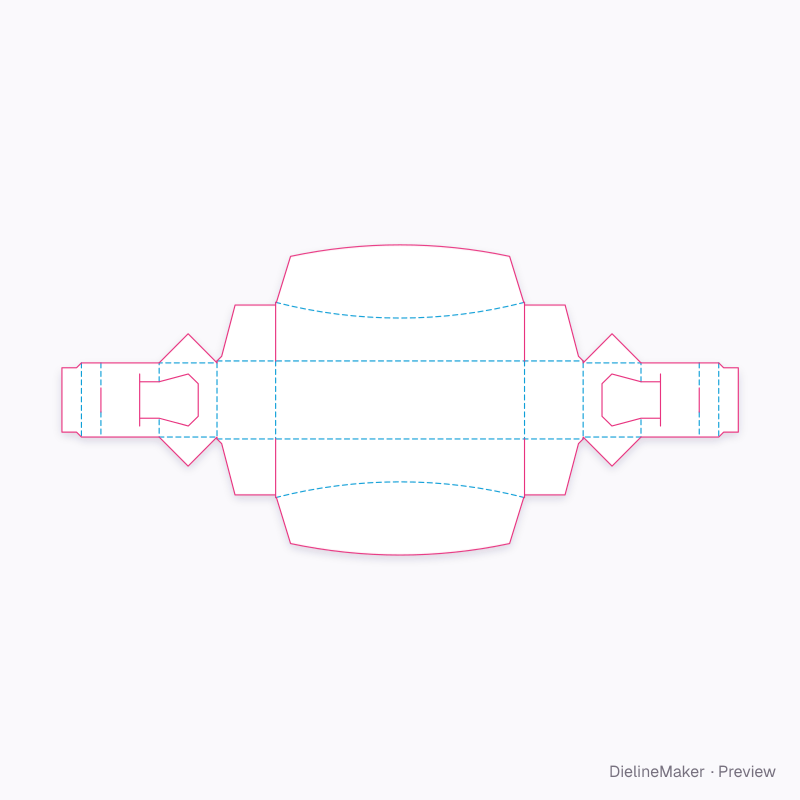

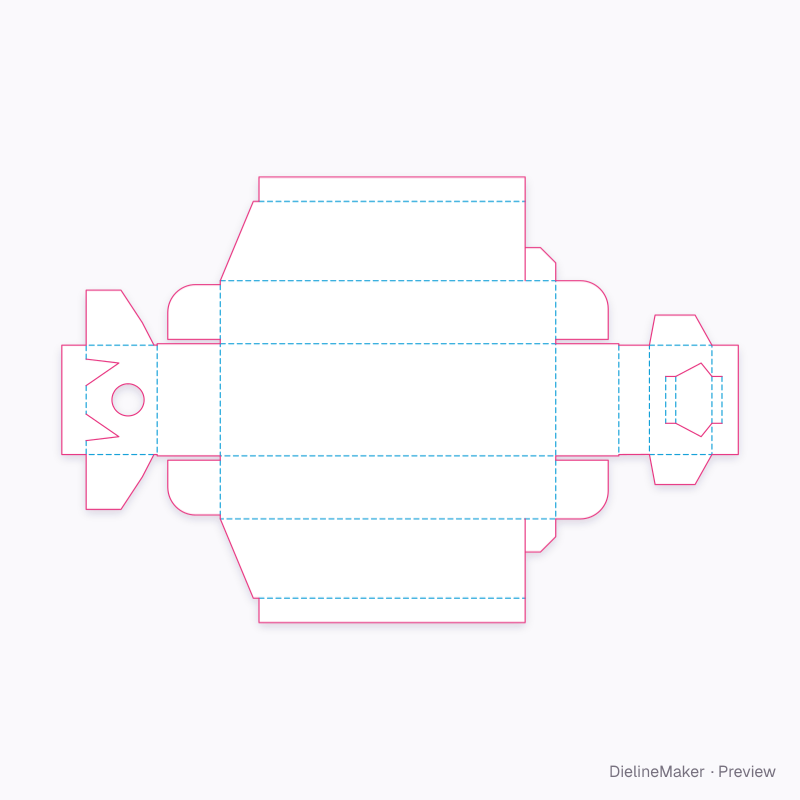

Similar structures
