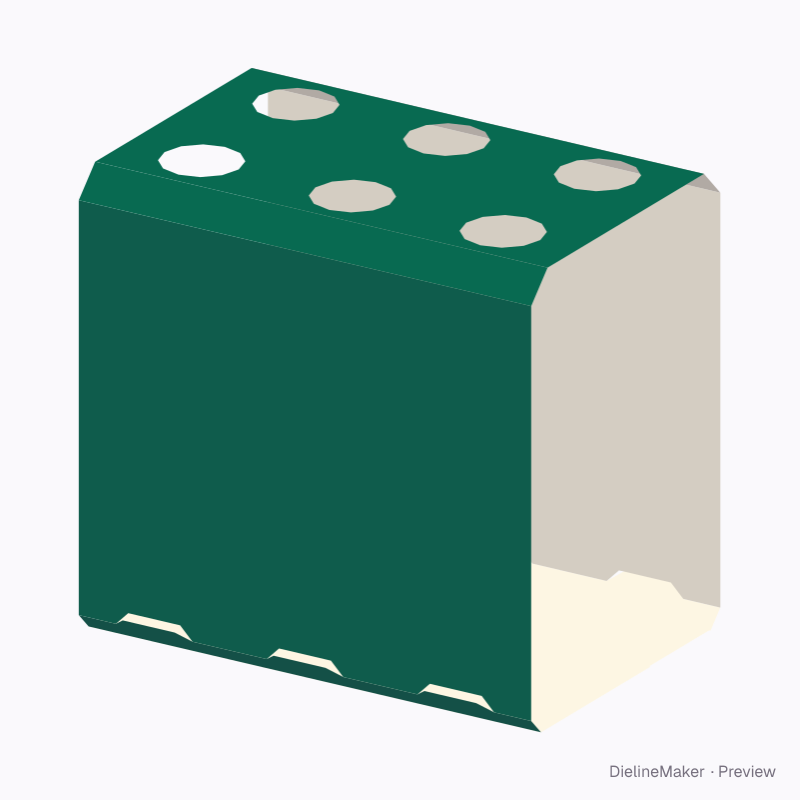

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E23.20.00.00Carriers
6-bottle neck-through wrap 3×2 183×122×170 dieline
Six necks through the top, bevelled at all four corners. A ready-sized preset of the bottle wrap-around multipack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside183 × 122 × 170 mm
Outside183 × 122.9 × 171.4 mm
Flat blank604.2 × 183 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E23.20.00.00
- Inside size
- Length (A) 183 · Width (B) 122 · Height 170 mm
- Size range
- Length (A) 60–600 · Width (B) 40–300 · Height 60–400 mm
- Manufacturing
- 183 × 122.5 × 170.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.111 m² · about 5 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350GD2 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E23.20.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Inner bottom | 77 × 183 | – × L |
| Bevel ×2 | 9 × 183 | – × L |
| Side ×2 | 153.5 × 183 | – × L |
| Bevel ×2 | 15 × 183 | – × L |
| Top | 101.2 × 183 | – × L |
| Bottom | 71 × 183 | – × L |
Adjustable in the editor
Beyond the size and board, this structure exposes 10 options; the template and 3D preview follow each change.
- Construction5 options
- Bottles per rowcount
- Heel locks5 options
- Heel lock lengthmm
- Heel lock depthmm
- Heel lock reliefmm
- Bottom bevelmm
- Shoulder bevelmm
- Neck hole radiusmm
- Finger holes4 options
The bottle wrap-around multipack family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 6-bottle neck-through wrap 3×2 183×122×170 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
