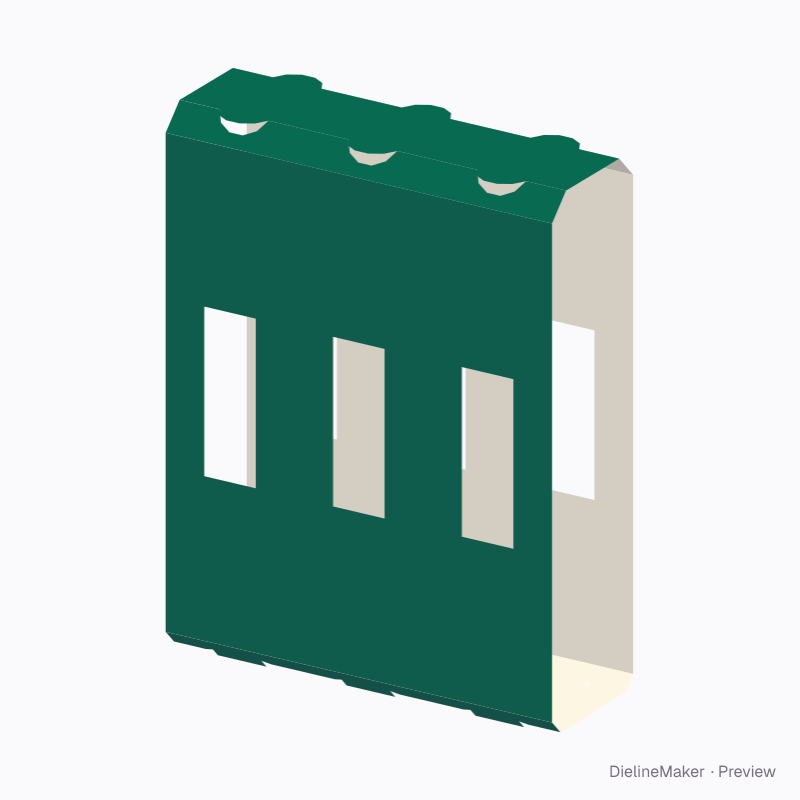

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E20.21.00.00Carriers
3-bottle window wrap 183×61×232 dieline
As the neck-covered wrap, with a window in each side at every bottle. A ready-sized preset of the bottle wrap-around multipack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside183 × 61 × 232 mm
Outside183 × 61.9 × 233.4 mm
Flat blank576 × 183 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E20.21.00.00
- Inside size
- Length (A) 183 · Width (B) 61 · Height 232 mm
- Size range
- Length (A) 60–600 · Width (B) 40–300 · Height 60–400 mm
- Manufacturing
- 183 × 61.5 × 232.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.105 m² · about 5 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350GD2 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E20.21.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Inner bottom | 29.7 × 183 | – × L |
| Bevel ×2 | 13 × 183 | – × L |
| Side ×2 | 215.5 × 183 | – × L |
| Bevel ×2 | 15 × 183 | – × L |
| Top | 58.2 × 183 | – × L |
| Bottom | 27 × 183 | – × L |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Construction5 options
- Bottles per rowcount
- Heel locks5 options
- Heel lock lengthmm
- Heel lock depthmm
- Bottom bevelmm
- Shoulder bevelmm
- Lid lobe depthmm
- Finger holes4 options
