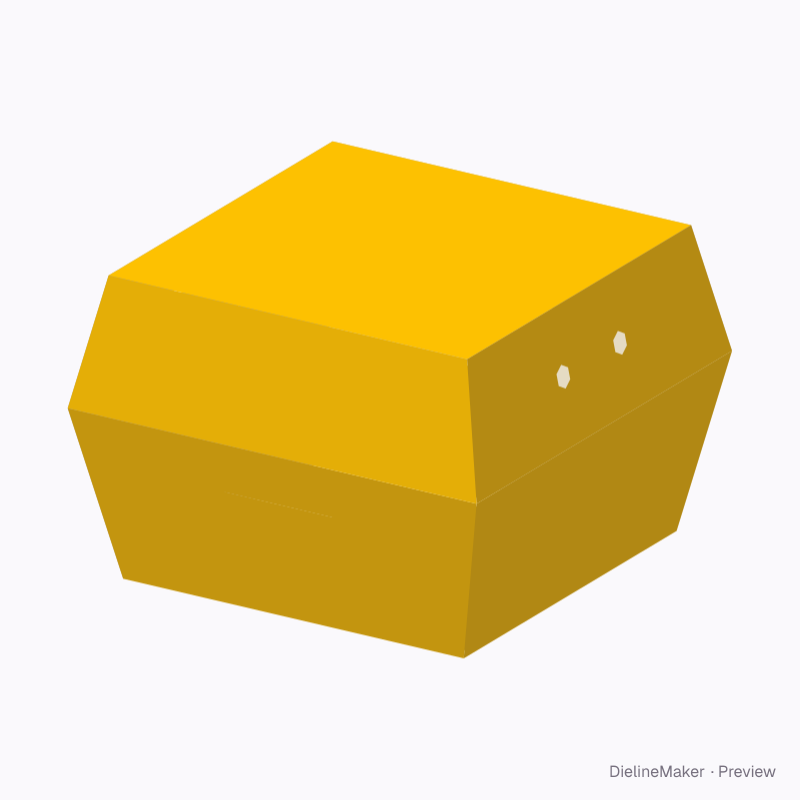

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Brioche burger clamshell — Burger clamshell dieline
Editable 125 × 125 × 85 mm starting point using burger clamshell. Adjust the dimensions to your product before prototyping. A ready-sized preset of the burger clamshell — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside125 × 125 × 85 mm
Outside125.9 × 125.9 × 85.9 mm
Flat blank206 × 410.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 125 · Width 125 · Height 85 mm
- Size range
- Length 60–260 · Width 60–220 · Height 36–150 mm
- Manufacturing
- 125.5 × 125.5 × 85.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.071 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350SBS 300F-fluteE-flute KE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Wall taper°
- Lid depthmm
- Closure3 options
- Tongue widthmm
- Slit depthmm
- Vents per sidecount
- Lid windowon / off
