The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAKE-BOX-01Food
Brownie box, 9 dieline
Square box for a 3 × 3 tray of brownies or traybakes. A ready-sized preset of the cake box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside230 × 230 × 50 mm
Outside233.7 × 230.9 × 50.9 mm
Flat blank376 × 608 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAKE-BOX-01
- Inside size
- Length 230 · Width 230 · Height 50 mm
- Size range
- Length 60–600 · Width 60–600 · Height 30–300 mm
- Manufacturing
- 233.2 × 230.5 × 50.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.205 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300E-flute WE-flute KF-fluteSBS 18 pt
- Good for

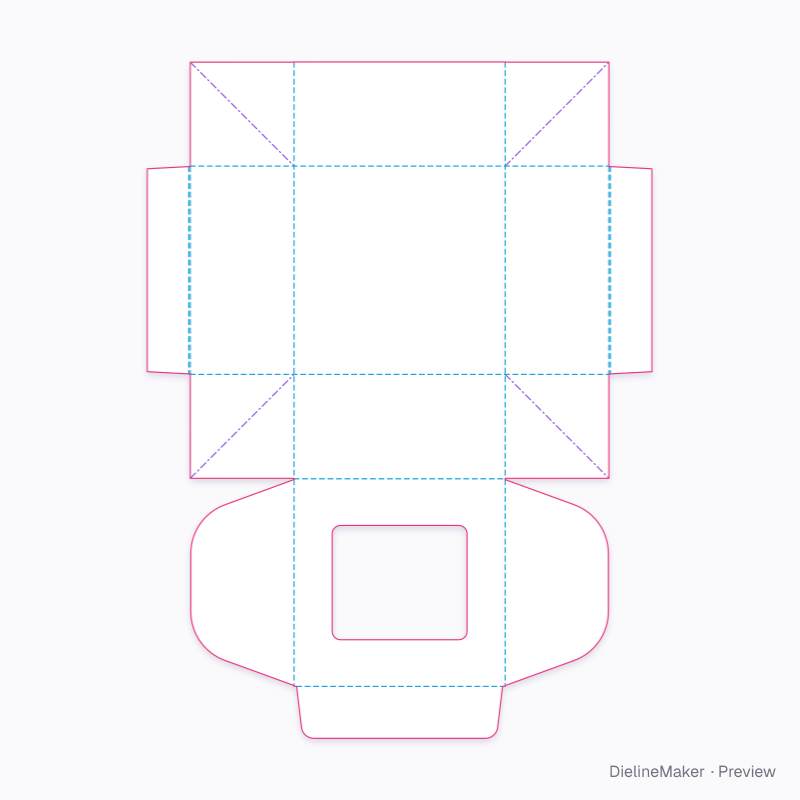

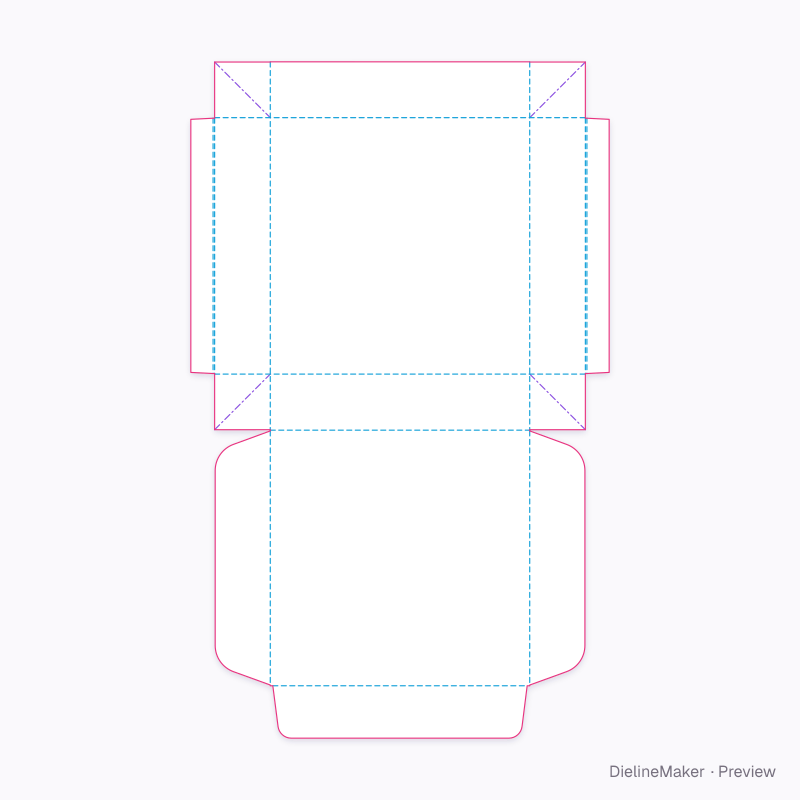

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CAKE-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 233.2 × 230.5 | L + 2·DC + T × W + T |
| Front | 233.2 × 50.2 | L + 2·DC + T × H + T/2 |
| Back | 233.2 × 50.5 | L + 2·DC + T × H + T |
| Left end | 50 × 230.5 | W + T × H |
| Left end roll | 1.4 × 229.5 | – |
| Left end lock flap | 20 × 229.5 | – |
| Right end | 50 × 230.5 | W + T × H |
| Right end roll | 1.4 × 229.5 | – |
| Right end lock flap | 20 × 229.5 | – |
| Corner web ×4 | 50 × 50 | H × H |
| Corner web ×3 | 70.7 × 35.4 | – |
| Corner web | 35.4 × 70.7 | – |
| Lid | 233.2 × 229.8 | L + 2·DC + T × W − T/2 |
| Lid ear ×2 | 49.5 × 228.4 | H − T × – |
| Front tuck | 228.6 × 47.1 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Front tuck depthmm
- Lid earson / off
- Lid ear depthmm
- Lock flap heightmm
- Windowon / off
- Thumb notchon / off
- Food contacton / off
